Cat

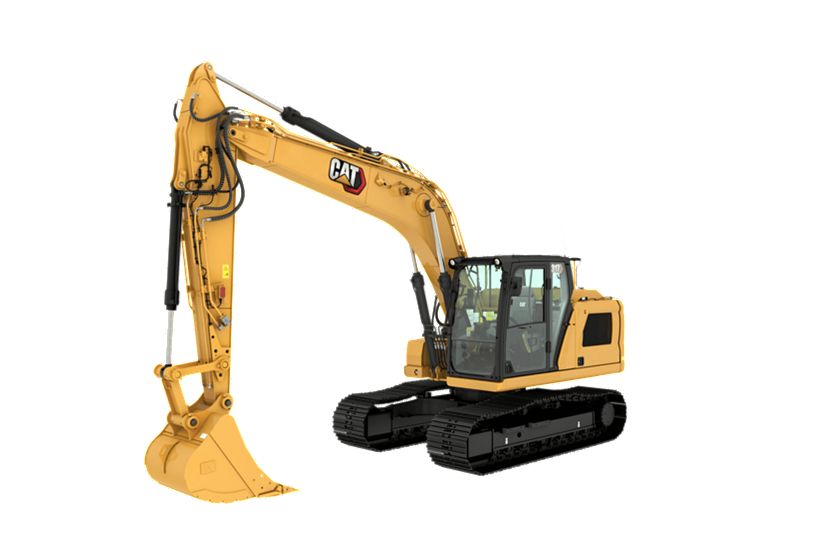

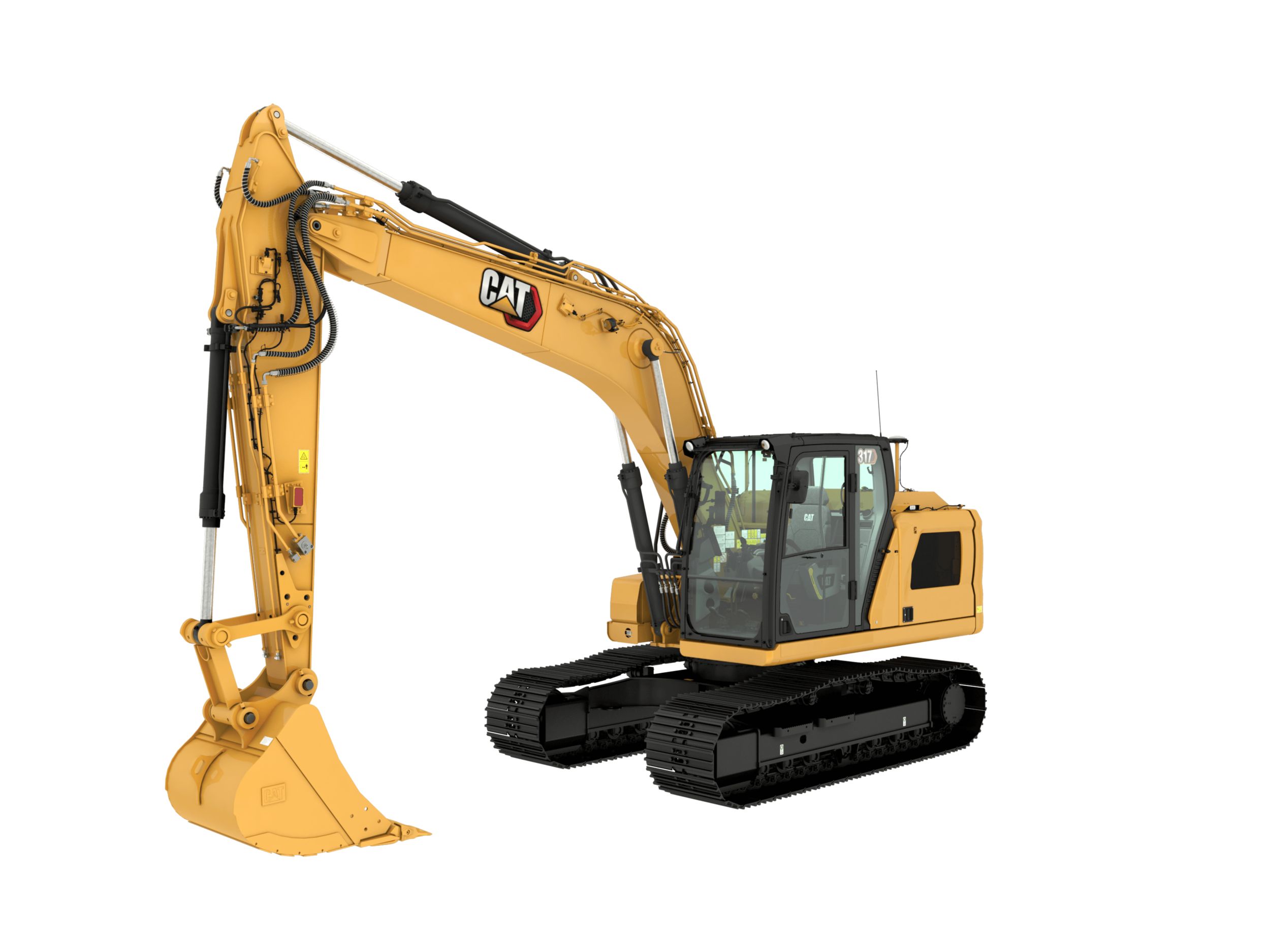

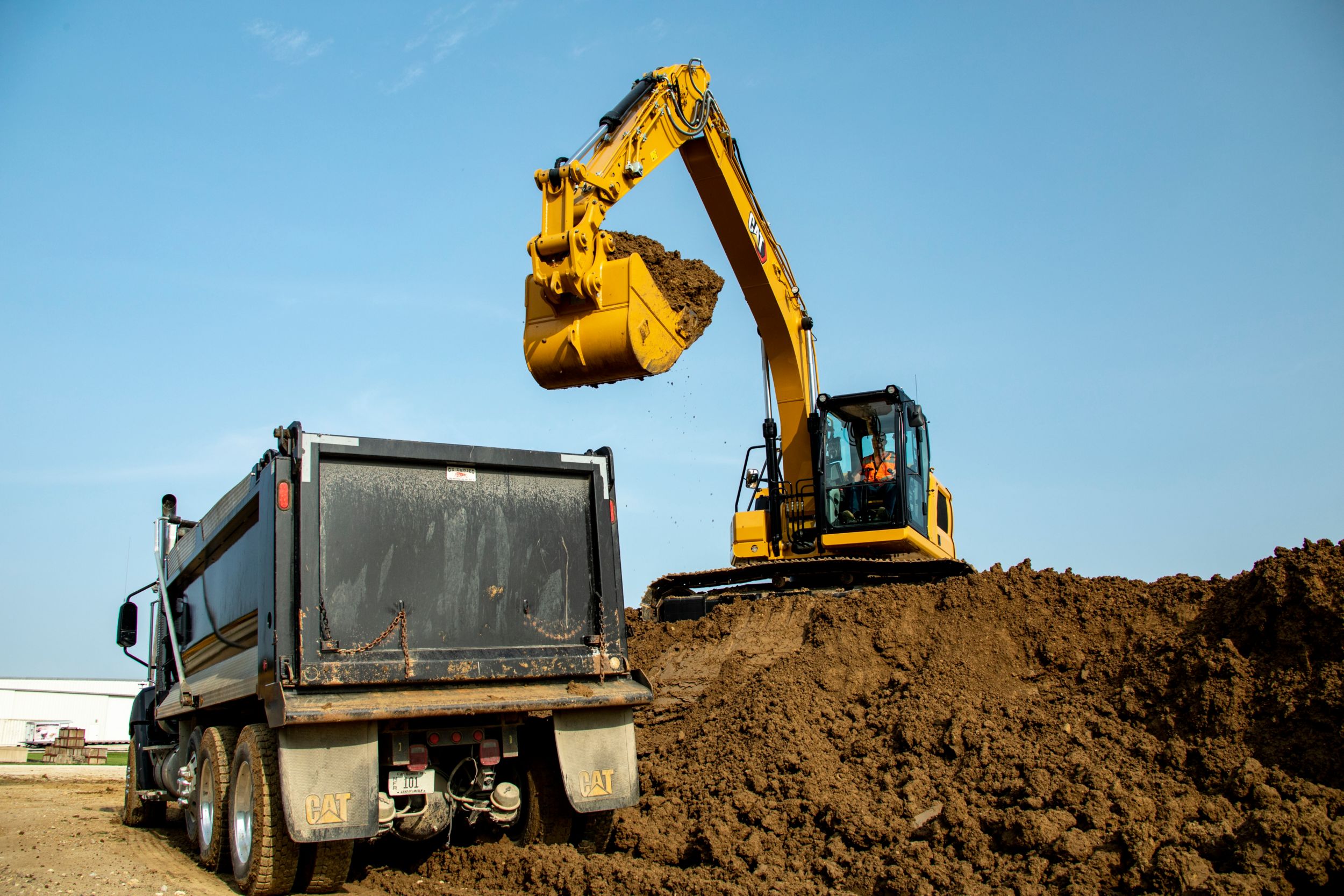

317 Hydraulic Excavator
Net Power – ISO 9249
133 hp
98.9 kW
Operating Weight
40200 lb
18200 kg
Maximum Digging Depth
21 ft
6400 mm
Overview

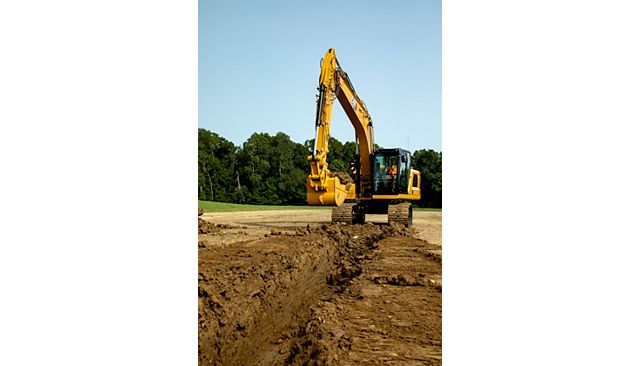

The 317 Hydraulic Excavator boosts productivity on your jobsite. Standard, easy-to-use Cat® technologies, performance upgrades, and low fuel and maintenance costs allow you to move material all day with speed and precision while keeping more money in your pocket.
Media
Photos
Videos
360° View
Exterior
317 Exterior 360° View
Interior
317 Interior 360° View
Features

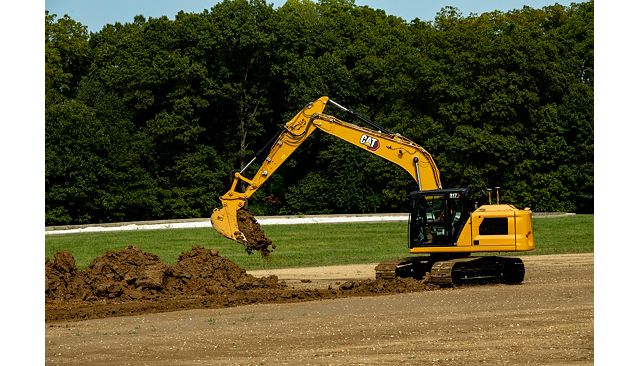

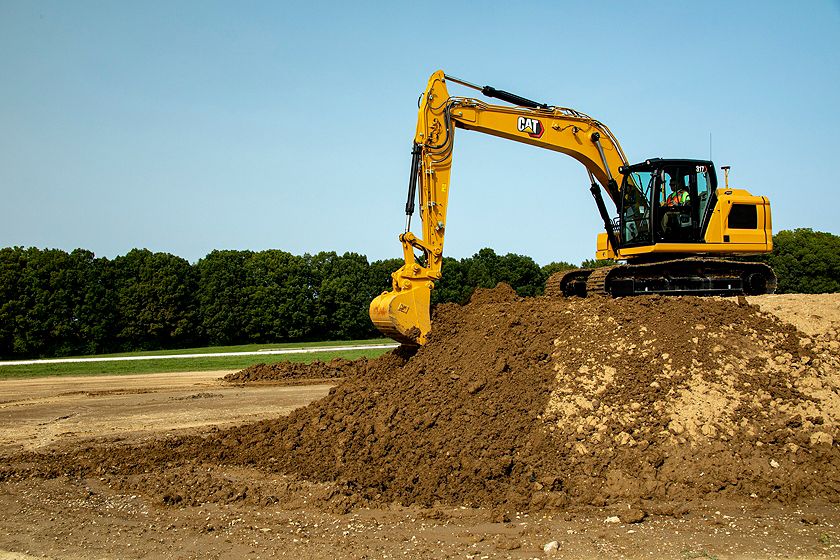

High Performance and Productivity
Boost Efficiency and Productivity with Cat Technologies
Take the Guesswork out of Managing Your Equipment

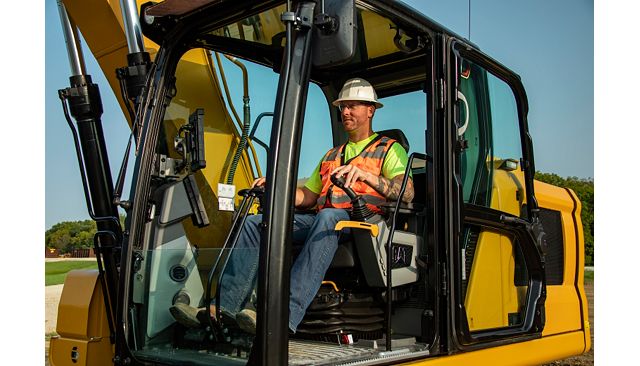

Work in Comfort

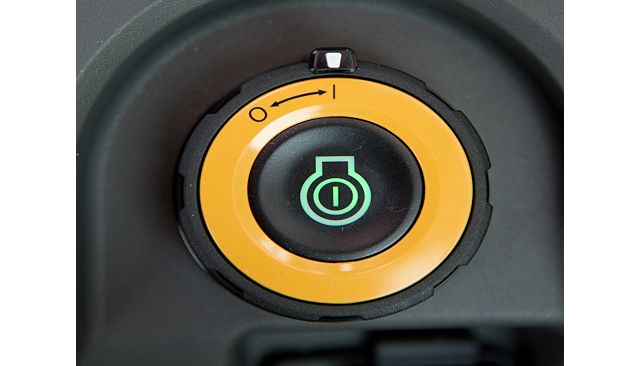

Simple to Operate
Low Maintenance Costs
Safety
Sustainability
Details
Specifications
Engine
| Spec | Value |
|---|---|
| Net Power – ISO 9249 | 133 hp 98.9 kW |
| Net Power – ISO 9249 (DIN) | 134 hp (metric) 134 hp (metric) |
| Engine Model | Cat C3.6 Cat C3.6 |
| Engine Power – ISO 14396:2002 | 134 hp 100 kW |
| Engine Power – ISO 14396 (DIN) | 136 hp (metric) 136 hp (metric) |
| Bore | 4 in 98 mm |
| Stroke | 5 in 120 mm |
| Displacement | 220 in³ 3.6 l |
| Biodiesel Capability | Up to B20¹ Up to B20¹ |
| Emissions | Meets U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 emission standards. Meets U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 emission standards. |
| Note (1) | Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system and alternator with engine speed at 2,200 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture. Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system and alternator with engine speed at 2,200 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture. |
| Note (2) | ¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations“ (SEBU6250) for details. * Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. ¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations“ (SEBU6250) for details. * Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. |
Hydraulic System
| Spec | Value |
|---|---|
| Main System – Maximum Flow | 296 L/min (78 gal/min) 296 L/min (78 gal/min) |
| Maximum Pressure – Equipment | 5075 psi 35000 kPa |
| Maximum Pressure – Travel | 5075 psi 35000 kPa |
| Maximum Pressure – Swing | 3741 psi 25800 kPa |
Swing Mechanism
| Spec | Value |
|---|---|
| Swing Speed | 8.7 r/min 8.7 r/min |
| Maximum Swing Torque | 47647 lbf·ft 64.6 kN·m |
Weights
| Spec | Value |
|---|---|
| Operating Weight | 40200 lb 18200 kg |
Service Refill Capacities
| Spec | Value |
|---|---|
| Fuel Tank Capacity | 71.6 gal (US) 271 l |
| Cooling System | 5.8 gal (US) 22 l |
| Engine Oil | 2.9 gal (US) 11 l |
| Final Drive – Each | 1.6 gal (US) 6 l |
| Hydraulic System – Including Tank | 24.8 gal (US) 94 l |
| Hydraulic Tank | 23 gal (US) 87 l |
| DEF Tank | 5.9 gal (US) 22 l |
Dimensions
| Spec | Value |
|---|---|
| Boom | Reach 5.1 m (16'9") Reach 5.1 m (16'9") |
| Stick | Reach R2.9 m (9'6") Reach R2.9 m (9'6") |
| Bucket | GD 0.76 m³ (0.99 yd³) GD 0.76 m³ (0.99 yd³) |
| Shipping Height – Top of Cab | 9.6 ft 2930 mm |
| Handrail Height | 9.7 ft 2940 mm |
| Shipping Length | 28.1 ft 8570 mm |
| Tail Swing Radius | 8.2 ft 2500 mm |
| Counterweight Clearance | 3.3 ft 1010 mm |
| Ground Clearance | 1.4 ft 430 mm |
| Track Length | 13 ft 3970 mm |
| Length to Center of Rollers | 10.4 ft 3170 mm |
| Track Gauge | 6.5 ft 1990 mm |
| Transport Width | 8.8 ft 2690 mm |
Working Ranges and Forces
| Spec | Value |
|---|---|
| Maximum Digging Depth | 21 ft 6400 mm |
| Boom | Reach 5.1 m (16'9") Reach 5.1 m (16'9") |
| Stick | Reach R2.9 m (9'6") Reach R2.9 m (9'6") |
| Bucket | GD 0.76 m³ (0.99 yd³) GD 0.76 m³ (0.99 yd³) |
| Maximum Reach at Ground Level | 29.6 ft 9010 mm |
| Maximum Cutting Height | 29.2 ft 8900 mm |
| Maximum Loading Height | 20.6 ft 6280 mm |
| Minimum Loading Height | 6.5 ft 1990 mm |
| Maximum Depth Cut for 2440 mm (8 ft) Level Bottom | 20.3 ft 6170 mm |
| Maximum Vertical Wall Digging Depth | 16.3 ft 4960 mm |
| Minimum Working Equipment Radius | 9.7 ft 2940 mm |
| Bucket Digging Force – ISO | 27650 lbf 123 kN |
| Stick Digging Force – ISO | 16860 lbf 75 kN |
Air Conditioning System
| Spec | Value |
|---|---|
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.9 hg of refrigerant which has a CO2 equivalent of 1.418 metric tonnes. The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.9 hg of refrigerant which has a CO2 equivalent of 1.418 metric tonnes. |
Standard Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
BOOM AND STICKS
- 5.1 m (16’9″) Reach Boom
CAB
- Rollover protective structure (ROPS)
- Air suspension heated seat, 10″ touch screen monitor
CAT TECHNOLOGIES
- VisionLink
- Remote Flash
- Remote Troubleshoot
- Cat Grade with 2D
- Cat Assist

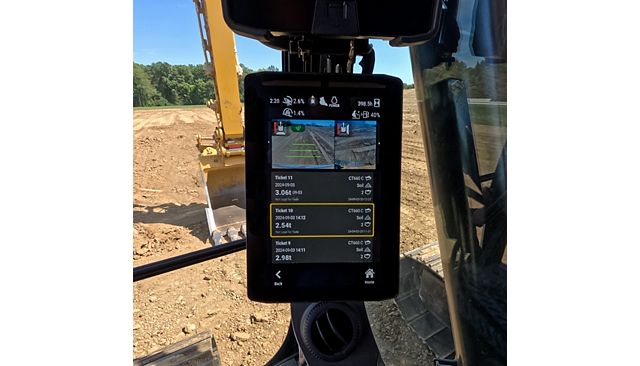

- Cat Payload
- Work tool recognition
- Work tool tracking
- Auto hammer stop
ELECTRICAL SYSTEM
- Maintenance free battery
- LED chassis light, left-side/right-side boom lights, cab lights
- Programmable time-delay LED working lights
ENGINE
- Cat C4.4 single turbo diesel engine
- One-touch low idle with automatic engine speed control
- Automatic engine shutdown
- Electric fuel priming pump
- Two-stage fuel filtration system with water separator and indicator
- Sealed double element air filter with integrated precleaner
- Electric cooling fans
- Biodiesel capability up to B20
HYDRAULIC SYSTEM
- Boom and stick regeneration circuit
- Auto hydraulic warm up
- Auto two speed travel
- Electric main control valve
- Boom and stick drift reduction valve
- Element-type main hydraulic filter
- Single-type electronic main pump
SAFETY AND SECURITY
- Rear and right-side-view cameras
- Ground-level engine shutoff switch
- Service platform with anti-skid plate and countersunk bolts
- Signaling/warning horn
- Hydraulic lock out lever
- 2D E-Fence
SERVICE AND MAINTENANCE
- Side entry to service platform
- Grouped engine oil and fuel filters

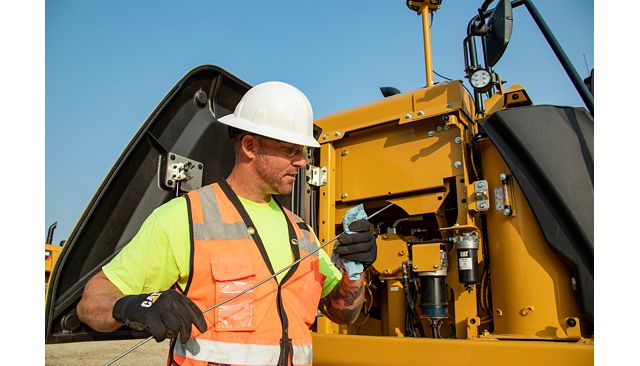

- Ground-level engine oil dipstick
- Sampling ports for Scheduled Oil Sampling (S·O·S)
UNDERCARRIAGE AND STRUCTURES
- Grease lubricated track link
- Tie down points on base frame
Optional Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
BOOM AND STICKS
- 2.6 m (8’6″) Reach stick
- 2.9 m (9’6″) Reach stick
- 2.9 m (9’6″) Thumb Ready stick
- 3.1 m (10’2″) Reach stick
CAB
- Operator Protective Guards (OPG)
- Cat Stick Steer
- Auxiliary relay
CAT TECHNOLOGIES
- VisionLink Productivity
- Cat Grade with 2D with Attachment Ready Option (ARO)
- Cat Grade with 3D (single GNSS or dual GNSS)
- Operator Coaching
ELECTRICAL SYSTEM
- 360° lighting
ENGINE
- -18°C (-0°F) cold start capability
- -25°C (-13°F) cold start capability
SAFETY AND SECURITY
- 360° visibility
- Swing alarm
- Inspection lighting
UNDERCARRIAGE AND STRUCTURES
- 600 mm (24 in) triple grouser shoes
- 600 mm (24 in) rubber track shoes
- 700 mm (28 in) triple grouser shoes with additional steps
- 3.25 mt (7,165 lb) counterweight
- 3.77 mt (8,311 lb) counterweight
