Caterpillar

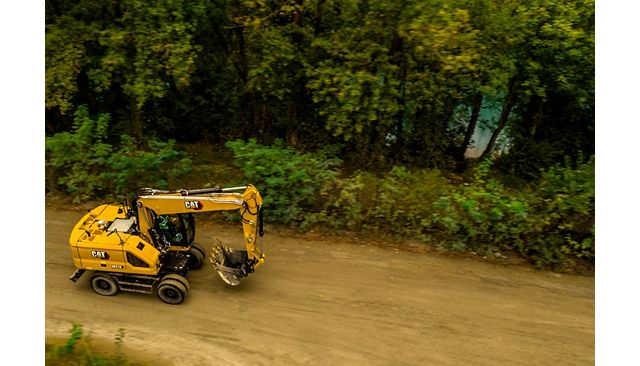

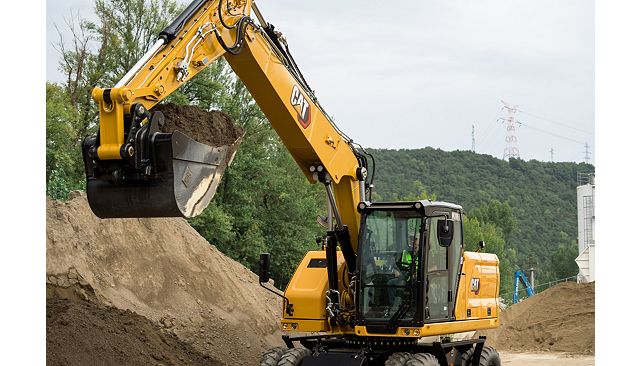

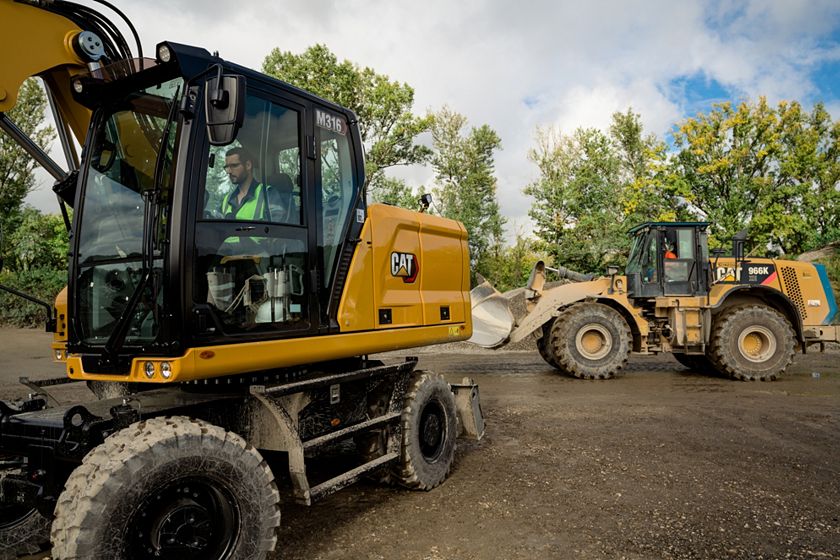

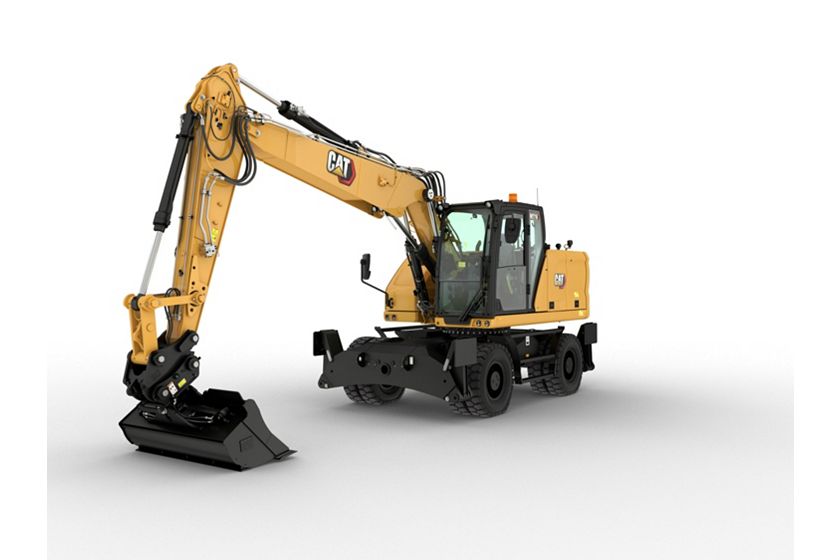

M316 Wheel Excavator
Engine Power – ISO 14396
148 hp
110 kW
Operating Weight Maximum
36990 lb
16780 kg
Maximum Travel Speed
21.7 mile/h
35 km/h
Overview
The Cat® M316 Wheel Excavator helps provide top performance with simple-to-use technologies to get the job done fast. With low maintenance costs, long service intervals, and 100 percent daily ground level check, the M316 helps save you time and money. The M316 helps give you the power to work long while putting money in your pocket.
Media
Photos
Videos
360° View
Exterior
360° Exterior view. Double click on the image to zoom in on any area of the product.
Interior
360° Interior view. Double click on the image to zoom in on any area of the product.
Features
High Performance
Work in Comfort
Low Maintenance Costs
Simple to Operate
Safety Features
Integrated Cat® Technologies
Sustainability
Details
Specifications
Engine
| Spec | Value |
|---|---|
| Engine Power – ISO 14396 | 148 hp 110 kW |
| Engine Power – ISO 14396 (DIN) | 150 hp (metric) 150 hp (metric) |
| Engine Model | Cat® C4.4 Cat® C4.4 |
| Net Power – ISO 9249 | 141 hp 105 kW |
| Net Power – ISO 9249 (DIN) | 143 hp (metric) 143 hp (metric) |
| Bore | 4.1 in 105 mm |
| Stroke | 5 in 127 mm |
| Displacement | 268.5 in³ 4.4 l |
| Biodiesel Capability | Up to B20¹ Up to B20¹ |
| Emissions | Meets U.S. EPA Tier 4 Final and EU Stage V emission standards. Meets U.S. EPA Tier 4 Final and EU Stage V emission standards. |
| Note (1) | Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, Clean Emission Module (CEM) exhaust gas aftertreatment, alternator, and cooling fan running at intermediate speed. Rated speed 2,000 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture. Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, Clean Emission Module (CEM) exhaust gas aftertreatment, alternator, and cooling fan running at intermediate speed. Rated speed 2,000 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture. |
| Note (2) | ¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations“ (SEBU6250) for details. *Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). **Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. ¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations“ (SEBU6250) for details. *Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). **Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. |
Drive
| Spec | Value |
|---|---|
| Maximum Travel Speed | 21.7 mile/h 35 km/h |
Hydraulic System
| Spec | Value |
|---|---|
| Main System – Maximum Flow – Implement | 73 gal/min 275 l/min |
| Maximum Pressure – Implement Circuit – Normal | 5076 psi 35000 kPa |
| Maximum Pressure – Implement Circuit – Heavy Lift | 5366 psi 37000 kPa |
| Maximum Pressure – Implement Circuit – Travel Circuit | 5076 psi 35000 kPa |
Swing Mechanism
| Spec | Value |
|---|---|
| Maximum Swing Speed | 10.2 r/min 10.2 r/min |
| Maximum Swing Torque | 32305 lbf·ft 43.8 kN·m |
| Note (1) | *For CE-marked machine default value may be set lower. *For CE-marked machine default value may be set lower. |
Machine Weight
| Spec | Value |
|---|---|
| Operating Weight Maximum | 36990 lb 16780 kg |
| Operating Weight Minimum | 36400 lb 16510 kg |
| Note (1) | Operating weight includes full fuel tank, operator and 10.00-20 tires. Weight varies depending on configuration. Operating weight includes full fuel tank, operator and 10.00-20 tires. Weight varies depending on configuration. |
Service Refill Capacities
| Spec | Value |
|---|---|
| Fuel Tank | 92.5 gal (US) 350 l |
| Diesel Exhaust Fluid (DEF) | 5.3 gal (US) 20 l |
| Cooling System | 6.3 gal (US) 24 l |
| Hydraulic Tank | 31.7 gal (US) 120 l |
| Hydraulic System – Including Tank | 68.7 gal (US) 260 l |
Dimensions
| Spec | Value |
|---|---|
| Boom | Variable Adjustable Boom 5.2 m (17'1") Variable Adjustable Boom 5.2 m (17'1") |
| Stick | 2.5 m (8'2") 2.5 m (8'2") |
| Bucket | GD 0.8 m³ (1.05 yd³) GD 0.8 m³ (1.05 yd³) |
| Shipping Height – Top of Cab | 11 ft 3360 mm |
| Shipping Length | 28.6 ft 8710 mm |
| Support Point | 11.6 ft 3530 mm |
| Tail Swing Radius | 7.7 ft 2350 mm |
| Counterweight Clearance | 4.3 ft 1301 mm |
| Ground Clearance | 1.3 ft 395 mm |
| Undercarriage Length | 16.3 ft 4970 mm |
| Wheel Base | 8.4 ft 2550 mm |
Working Ranges and Forces
| Spec | Value |
|---|---|
| Boom | Variable Adjustable Boom 5.2 m (17'1") Variable Adjustable Boom 5.2 m (17'1") |
| Stick | 2.5 m (8'2") 2.5 m (8'2") |
| Bucket | GD 0.8 m³ (1.05 yd³) GD 0.8 m³ (1.05 yd³) |
| Maximum Cutting Height | 33.6 ft 10240 mm |
| Maximum Loading Height | 23.9 ft 7280 mm |
| Maximum Digging Depth | 19.4 ft 5920 mm |
| Maximum Vertical Wall Digging Depth | 15.2 ft 4620 mm |
| Maximum Reach at Ground Line | 30.2 ft 9220 mm |
| Stick Forces (ISO) | 15512 lbf 69 kN |
| Bucket Forces (ISO) | 26752 lbf 119 kN |
| Note (1) | Range values are with dual pneumatic tires (10.00-20). Range values are calculated with a GD bucket (CW) and CW-30 quick coupler with a tip radius of 1484 mm (4'10"). Force values are calculated with heavy lift on, a GD bucket (pin-on) and a tip radius of 1378 mm (4'6"). Range values are with dual pneumatic tires (10.00-20). Range values are calculated with a GD bucket (CW) and CW-30 quick coupler with a tip radius of 1484 mm (4'10"). Force values are calculated with heavy lift on, a GD bucket (pin-on) and a tip radius of 1378 mm (4'6"). |
Air Conditioning System
| Spec | Value |
|---|---|
| Note | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.8 kg (1.8 lb) of refrigerant which has a CO2 equivalent of 1.216 metric tonnes (1.340 tons). The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.8 kg (1.8 lb) of refrigerant which has a CO2 equivalent of 1.216 metric tonnes (1.340 tons). |
Standard Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
BOOM AND STICKS
- 5.2 m (17’1″) Variable Adjustable Boom
- 2.5 m (8’2”) stick
ELECTRICAL SYSTEM
- LED lights on boom and cab
- Programmable time-delay LED working lights
- Roading and indicator lights, front and rear
- Maintenance-free batteries
- Centralized electrical disconnect switch
ENGINE
- Cat C4.4 Single Turbo diesel engine
- Power mode selector
- One-touch low idle with automatic engine speed control
- Automatic engine idle shutdown
- 52°C (125°F) high-ambient cooling capacity
- Cold starting capability -18°C (0°F)
- Double element air filter with integrated pre-cleaner
HYDRAULIC SYSTEM
- Boom, stick and bucket drift reduction valves
- Automatic hydraulic oil warm up
- Heavy lift mode
SAFETY AND SECURITY
- Rear and right-side-view cameras
- Wide angle mirrors
- Signal/warning horn
- Lockable disconnect switch
- Anti-skid plate and countersunk bolts on service platform
SERVICE AND MAINTENANCE
- Scheduled Oil Sampling (S·O·S℠) ports
- Integrated vehicle health management system
CAT TECHNOLOGY
- VisionLink®
- Remote Flash and Remote Troubleshoot
UNDERCARRIAGE AND STRUCTURES
- All wheel drive
- Automatic brake/axle lock
- 2600 kg (5,732 lb) counterweight
CAB
- Sound-suppressed ROPS cab
- Keyless push-to-start engine control
- Openable two-piece front window (laminated)
- Height-adjustable console, infinite with no tool
- High-resolution 254 mm (10 in) LCD touchscreen monitor
Optional Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
ELECTRICAL SYSTEM
- LED lights on chassis (left-hand, right-hand) and counterweight
- Electrical refueling pump
HYDRAULIC SYSTEM
- Boom and stick lowering check valves
- Bucket cylinder check valves
- Two-slider joysticks
- Joystick steering
SAFETY AND SECURITY
- 360° visibility
- Travel alarm
- Inspection lighting
- 2D E-fence
- Cab Avoidance
SERVICE AND MAINTENANCE
- Automatic lubrication system for implement and swing system
CAT TECHNOLOGY
- Cat Grade with 2D
- Cat Grade with 2D with Attachment Ready Option (ARO)
- Laser catcher
- Cat Grade 3D Ready
- Cat Grade Connectivity
- Cat Grade with Assist
- Cat Payload
- Cat Tiltrotator (TRS) Integration
UNDERCARRIAGE AND STRUCTURES
- 10.00-20 16 PR, dual tires
- 445/70R 19.5, single tires
- 3300 kg (7,280) counterweight
CAB
- Operator Protective Guards (OPG)
Related Products
GC Hammers
Performance Hammers
Vibratory Plate Compactors

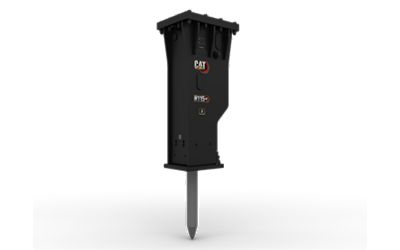

H115 GC S

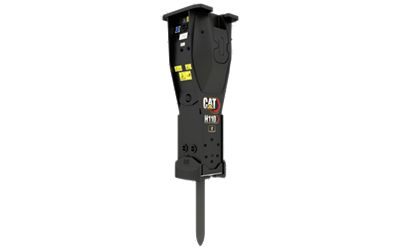

H110 GC S
H110 S
H115 S
H120 S

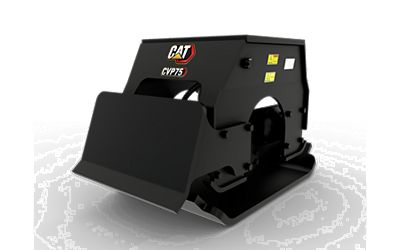

CVP75
