Cat

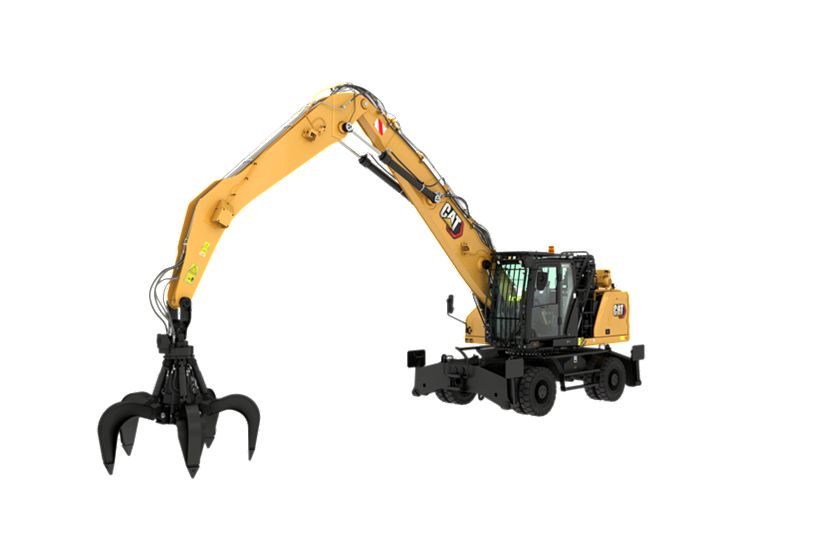

MH3024 Wheel Material Handler
Engine Model
Cat C4.4
Cat C4.4
Maximum Operating Weight
59100 lb
26800 kg
Maximum Reach
39.4 ft
12010 mm
Overview

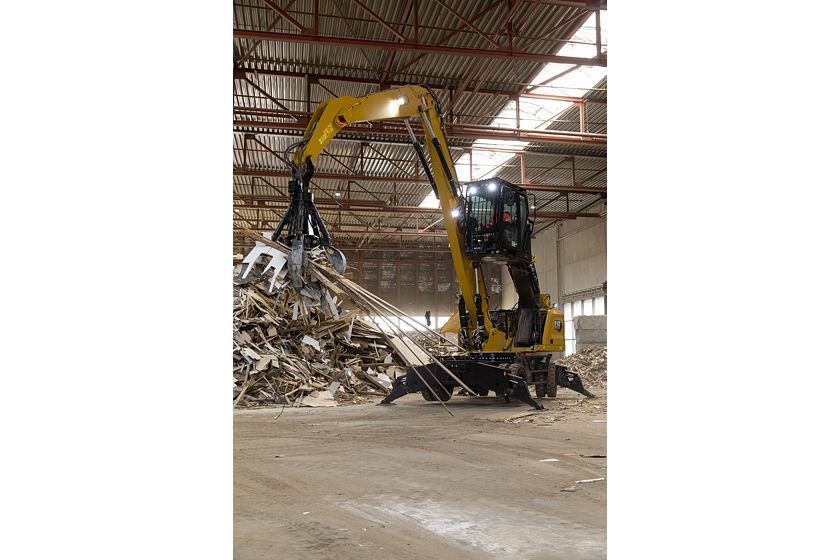

We know that when it comes to material handling equipment, your success depends on productivity and low operating costs. The Cat® MH3024 is a purpose-built material handler that will provide you with the superior performance you need for your toughest waste and scrapyard applications. The MH3024 features simple-to-use technologies, a redesigned cab for enhanced comfort, and more boom options to match your work. Combine these features with up to 10% lower operating costs and 7% greater swing torque, and you have a safe, quality and reliable product to take on the wide variety of challenges you face each day.
Media
Photos
Videos
360° View
Interior
MH3024 Interior 360 View
Features
High Performance
Take the Guesswork Out of Managing Your Equipment
Work in Comfort
Reliable, Durable, and Versatile
Maintenance
Safety
Sustainability
Details
Specifications
Engine
| Spec | Value |
|---|---|
| Engine Model | Cat C4.4 Cat C4.4 |
| Net Power – ISO 9249 | 171 hp 128 kW |
| Net Power – ISO 9249 (DIN) | 174 hp (metric) 174 hp (metric) |
| Engine Power – Maximum – ISO 14396 | 174 hp 129 kW |
| Engine Power – ISO 14396 (DIN) | 176 hp (metric) 176 hp (metric) |
| Bore | 4.1 in 105 mm |
| Stroke | 5.3 in 135 mm |
| Displacement | 268.5 in³ 4.4 l |
| Biodiesel Capability | Up to B20¹ Up to B20¹ |
| Emissions | Meets U.S. EPA Tier 4 Final and EU Stage V emission standards. Meets U.S. EPA Tier 4 Final and EU Stage V emission standards. |
| Note (1) | Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 2,200 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture. Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 2,200 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture. |
| Note (2) | ¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. *Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). **Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. ¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. *Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). **Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. |
| Maximum Gross – ISO 14396 | 129.4 kW (174 hp [176 hp/PS*]) 129.4 kW (174 hp [176 hp/PS*]) |
Transmission
| Spec | Value |
|---|---|
| Maximum Gradeability (23 500 kg/51,810 lb) | 65 65 |
| Maximum Travel Speed (with steering wheel) | 12.4 mile/h 20 km/h |
| Maximum Travel Speed (with joysticks) | 9.3 mile/h 15 km/h |
| Drawbar Pull | 28551 lb/ft 127 kN |
Hydraulic System
| Spec | Value |
|---|---|
| Maximum Pressure – Implements | 5366 psi 37000 kPa |
| Maximum Pressure – Travel | 5075 psi 35000 kPa |
| Maximum Pressure – Swing | 5656 psi 39000 kPa |
Machine Weights
| Spec | Value |
|---|---|
| Maximum Operating Weight | 59100 lb 26800 kg |
| Minimum Operating Weight | 50050 lb 22700 kg |
Service Refill Capacities
| Spec | Value |
|---|---|
| Fuel Tank Capacity | 92.5 gal (US) 350 l |
| Engine Oil | 3.4 gal (US) 13 l |
| Hydraulic Tank | 40.9 gal (US) 155 l |
| Hydraulic System – Including Tank | 91.1 gal (US) 345 l |
| Rear Axle – Housing (Differential) | 3.7 gal (US) 14 l |
| Front Steering Axle – Differential | 2.8 gal (US) 10.5 l |
| Powershift Transmission | 0.7 gal (US) 2.5 l |
Service Refill Capabilities
| Spec | Value |
|---|---|
| Diesel Exhaust Fluid Tank | 7.9 gal (US) 30 l |
| Cooling System | 9.5 gal (US) 36 l |
| Final Drive – Each | 0.7 gal (US) 2.5 l |
| Hydraulic Tank Capacity | 40.4 gal (US) 153 l |
| Fuel Tank | 87 gal (US) 330 l |
| Hydraulic System Capacity | 66.8 gal (US) 253 l |
Swing Mechanism
| Spec | Value |
|---|---|
| Maximum Swing Torque | 42631 ft·lbf 58 kN·m |
| Swing Speed | 8.2 r/min 8.2 r/min |
Dimensions
| Spec | Value |
|---|---|
| Boom | MH Boom 7.45 m (24'5") MH Boom 7.45 m (24'5") |
| Stick | Drop Nose 5.0 m (16'5") Drop Nose 5.0 m (16'5") |
| Undercarriage Width | 9.8 ft 2990 mm |
| Shipping Height (with OPG, without stick) | 11 ft 3350 mm |
| Shipping Length | 35 ft 10670 mm |
| Shipping Length (with push blade) | 36.5 ft 11130 mm |
| Machine Length | 17.3 ft 5290 mm |
| Machine Length (with push blade) | 18.8 ft 5740 mm |
| Tail Swing Radius | 8.5 ft 2600 mm |
| Counterweight Clearance | 4.3 ft 1300 mm |
| Cab Height- Lowered | 11 ft 3350 mm |
| Cab Height-Lowered with OPG | 11 ft 3350 mm |
| Cab Height-Raised | 18.9 ft 5750 mm |
| Cab Height-Raised with OPG | 18.9 ft 5750 mm |
| Wheel Base | 9 ft 2750 mm |
| Shipping Width | 9.8 ft 2990 mm |
| Ground Clearance | 1.1 ft 320 mm |
| Undercarriage Length | 17.4 ft 5300 mm |
| Undercarriage Length (with push blade) | 18.8 ft 5740 mm |
| Upper Frame Width (including handrails) | 8.3 ft 2540 mm |
Air Conditioning System
| Spec | Value |
|---|---|
| Note (1) | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.05 kg of refrigerant, which has a CO2 equivalent of 1.502 metric tonnes. The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.05 kg of refrigerant, which has a CO2 equivalent of 1.502 metric tonnes. |
Working Ranges
| Spec | Value |
|---|---|
| Maximum Reach | 39.4 ft 12010 mm |
| Boom | MH Boom 7.45 m (24'5") MH Boom 7.45 m (24'5") |
| Stick | Drop Nose 5.0 m (16'5") Drop Nose 5.0 m (16'5") |
| Maximum Height | 42.8 ft 13030 mm |
| Minimum Dump Height | 14.8 ft 4520 mm |
| Maximum Reach at Ground Line | 38.9 ft 11870 mm |
| Maximum Depth | 9.9 ft 3010 mm |
| Boom Pin Height | 30.4 ft 9260 mm |
Transmissions
| Spec | Value |
|---|---|
| Maximum Travel Speed (with joysticks) | 9.3 mile/h 15 km/h |
| Maximum Travel Speed (with steering wheel) | 12.4 mile/h 20 km/h |
Standard Equipment
Cab
- Advanced sound-suppressed TOPS cab (ISO 12117-2 compliant)
- Keyless push-to-start engine control
- Deluxe cab: heated and cooled seat with automatic adjustable suspension, 10″ touchscreen monitor
- Premium cab: air suspension heated seat, 10″ touchscreen monitor
- LED dome lights
Safety and Security
- Cab Avoidance
- Rear- and right-side-view cameras
- Secondary engine shutoff switch
- Lockable disconnect switch
Cat Technology
- Cat VisionLink®
- Remote Flash
- Remote Troubleshoot
- Cat Payload
Electrical System
- Roading and indicator lights at front and rear
- Maintenance-free batteries
- LED chassis light, left-hand/right-hand boom and stick lights, cab lights
- Centralized electrical disconnect switch
- Programmable time delay LED working lights
Service and Maintenance
- Automatic lubrication system for implement and swing system
- Sampling ports for Scheduled Oil Sampling (S·O·S℠)
- Integrated vehicle health management system
Engine
- C4.4 engine
- One-touch low idle with automatic engine speed control
- Automatic engine shutdown
- 52°C (125°F) high-ambient capability
- Cold start capability-18°C (-0°F)
- Electric fuel priming pump
- Double element air filter with integrated precleaner
- On-demand electric cooling fans with auto-reverse function
Hydraulic System
- Electric main control valve
- Automatic hydraulic oil warm up
- Automatic swing brake
- Separate dedicated swing pump
- Boom and stick lowering check valves
- Medium pressure auxiliary circuit
- Element type main hydraulic filter
- SmartBoom™
- Smart Stick
- Heavy lift mode
Undercarriage and Structures
- All wheel drive
- Automatic brake/axle lock
- Creeper speed
- Heavy-duty axles, advanced disc brake system, and travel motor with adjustable braking force
- Lockable, oscillating front axle with remote greasing point
Optional Equipment
Booms and Sticks
- 7.45m (24’5″) MH boom
- 6.4 m (21′) MH boom
- 5.26 m (17’3″) Variable Angle boom
- 5.65 m (18’6″) One-piece boom
- 5.0 m (16’5″) Drop Nose MH stick
- 4.3 m (14’1″) Straight MH stick
- 2.9 m (9’6″) Straight stick
- 2.5 m (8’2″) Straight stick
- No Stick Configuration
- Bucket linkage, B-type with lifting eye
Cab
- Fixed one-piece laminated windshield and roof window (P5A glass)
- Fixed one-piece laminated windshield and roof window (P8B glass)
- Auxiliary relay
- Operator Protective Guards (OPG)
Electrical System
- Electrical refueling pump
Safety and Security
- 360° visibility
- Inspection lighting
- Travel alarm
Undercarriage and Structures
- 2750 mm (9’0″) wide undercarriage
- 2990 mm (9’10”) wide undercarriage
- 4200 kg (9,250 lb) counterweight
- 4700 kb (10,350 lb) counterweight
- Push Blade
- 10.00-20 dual solid rubber tires
- 11.00-20 16 PR dual tires
Related Products
GC Hammers
Performance Hammers
Multi-Processor with Demolition Jaws
Multi-Processor with Universal Jaws
Multi-Processor with Pulverizer Jaws
Vibratory Plate Compactors
Multi-Processor with Shear Jaws
H120 GC S
H115 S
H120 S
H130 S
MP318 Demolition Jaw
MP318 Universal Jaw
MP318 Pulverizer Jaw

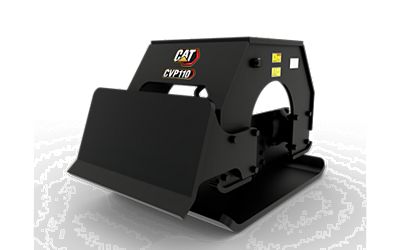

CVP110
