Caterpillar

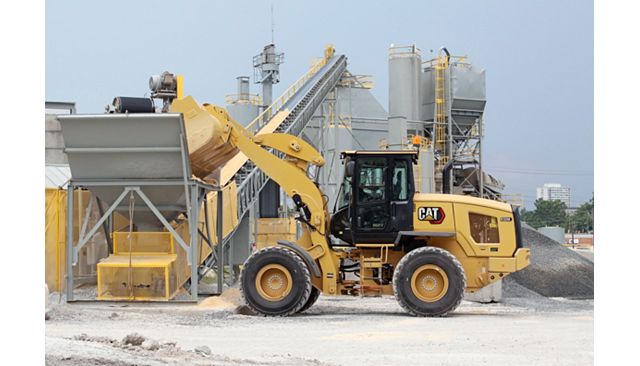

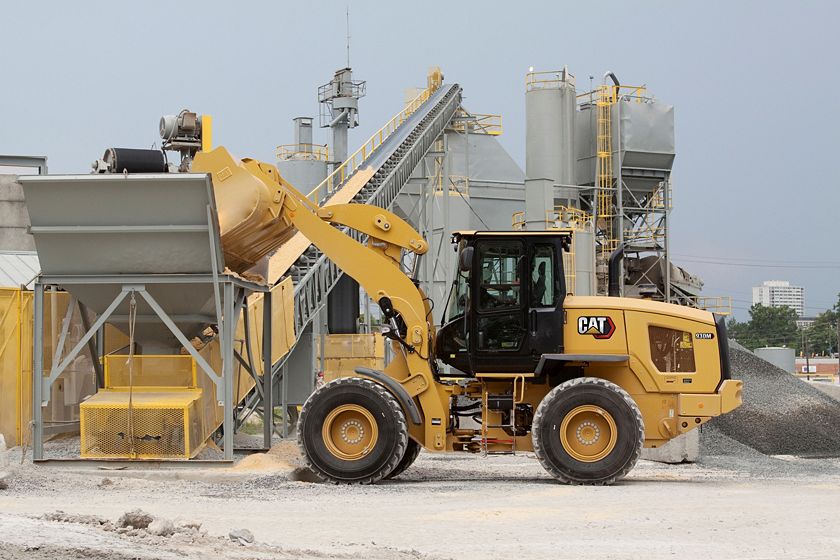

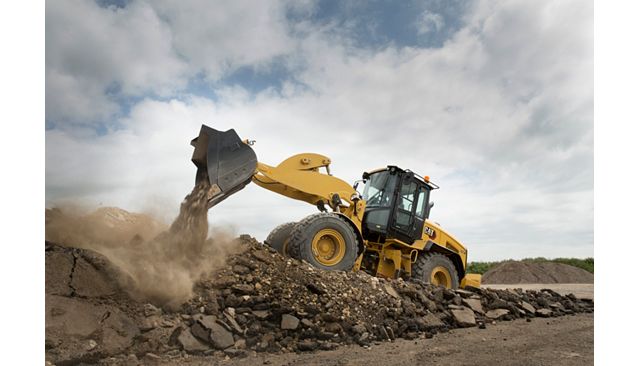

930M Aggregate Handler Small Wheel Loader

Maximum Gross Power

168 HP

125 kW

Operating Weight

31144 lb

14131 kg

Bucket Capacities

2.5-2.7 m3 (3.3-3.5 yd3)

2.5-2.7 m3 (3.3-3.5 yd3)

Overview

The Cat® 930M Aggregate Handler sets a new standard for productivity, fuel efficiency and comfort. A high torque, low speed C7.1 engine works in concert with an intelligent hystat power train to deliver fuel efficiency as standard. The optimized Z-bar loader linkage combined with long wear life Performance Series buckets delivers improved payloads and bucket longevity. Extremely low sound levels, large spacious cab and intuitive controls keep you working comfortably all day and even all night! Experience this industry benchmark.

Media

Photos

Videos

360° View

Exterior

360° Exterior view. Double click on the image to zoom in on any area of the product.

Interior

360° Interior view. Double click on the image to zoom in on any area of the product.

Features

Details

Specifications

Spec Value
Maximum Rated Gross Power – ISO 14396 164 HP 122 kW
Maximum Rated Gross Power – ISO 14396 (Performance Power Mode: Range 1-4) 164 HP 122 kW
Maximum Rated Gross Power – ISO 14396 (DIN) (Performance Power Mode: Range 1-4) 166 HP 122 kW
Rated Net Power – 1,800 rpm – SAE J1349 at Minimum Fan Speed (Performance Power Mode: Range 1-4) 157 HP 117 kW
Maximum Rated Gross Power – ISO 14396 (DIN) 166 HP 122 kW
Engine Model Cat® C7.1 Cat® C7.1
Maximum Rated Gross Power – Maximum Engine Speed (Performance Power Mode: Range 1-4) 1800 r/min 1800 r/min
Rated Net Power 157 HP 117 kW
Rated Net Power – 1,800 rpm – ISO 9249 (1977)/EEC 80/1269 at Minimum Fan Speed (Performance Power Mode: Range 1-4) 160 HP 119 kW
Maximum Gross Power 168 HP 125 kW
Bore 4 in 105 mm
Stroke 5 in 135 mm
Displacement 427 in³ 7.01 l
Maximum Rated Gross Power – Maximum Engine Speed (Standard Power Mode: Range 1-3*) 1600 r/min 1600 r/min
Maximum Gross Torque – ISO 14396 (Performance Power Mode: Range 1-4) 592 ft·lbf 804 N·m
Maximum Gross Torque – ISO 14396 (Standard Power Mode: Range 1-3*) 592 ft·lbf 804 N·m
Note (3) No derating required up to 3000 m (10,000 ft) altitude. Auto derate protects hydraulic and transmission systems. No derating required up to 3000 m (10,000 ft) altitude. Auto derate protects hydraulic and transmission systems.
Rated Net Power – 1,600 rpm – ISO 9249 (1977)/EEC 80/1269 at Minimum Fan Speed (Standard Power Mode: Range 1-3*) 156 HP 116 kW
Rated Net Power – 1,800 rpm – ISO 9249 (DIN) at Minimum Fan Speed (Performance Power Mode: Range 1-4) 162 HP 119 kW
Note (4) Spark arrester performance as standard – Meets the performance requirements of EN 1834-1.2000 (section 6.4.2 Visual Test). Spark arrester performance as standard – Meets the performance requirements of EN 1834-1.2000 (section 6.4.2 Visual Test).
Note (2) Net power ratings are tested at the reference conditions for the specified standard and denote power available at the flywheel when the engine is equipped with alternator, air cleaner, emission components and fan at specified speed. Net power ratings are tested at the reference conditions for the specified standard and denote power available at the flywheel when the engine is equipped with alternator, air cleaner, emission components and fan at specified speed.
Maximum Rated Gross Power – ISO 14396 (Standard Power Mode: Range 1-3*) 160 HP 119 kW
Maximum Net Torque – SAE J1349 (Performance Power Mode: Range 1-4) 566 ft·lbf 768 N·m
Maximum Net Torque – SAE J1349 (Standard Power Mode: Range 1-3*) 566 ft·lbf 768 N·m
Maximum Rated Gross Power – ISO 14396 (DIN) (Standard Power Mode: Range 1-3*) 162 HP 119 kW
Maximum Net Torque – ISO 9249 (1977)/EEC 80/1269 (Standard Power Mode: Range 1-3*) 572 ft·lbf 776 N·m
Emissions Engine meets U.S. EPA Tier 4 Final/EU Stage IV emission standards. Engine meets U.S. EPA Tier 4 Final/EU Stage IV emission standards.
Rated Net Power – 1,600 rpm – ISO 9249 (DIN) at Minimum Fan Speed (Standard Power Mode: Range 1-3*) 158 HP 116 kW
Maximum Net Torque – ISO 9249 (1977)/EEC 80/1269 (Performance Power Mode: Range 1-4) 572 ft·lbf 776 N·m
Rated Net Power – 1,600 rpm – SAE J1349 at Minimum Fan Speed (Standard Power Mode: Range 1-3*) 154 HP 115 kW
Note (1) * Range 4 power and torque is equal to Performance Mode with Caterpillar Power by Range technology. * Range 4 power and torque is equal to Performance Mode with Caterpillar Power by Range technology.
Spec Value
Bucket Capacities 2.5-2.7 m3 (3.3-3.5 yd3) 2.5-2.7 m3 (3.3-3.5 yd3)
Spec Value
Operating Weight 31144 lb 14131 kg
Spec Value
ROPS ISO 3471: 2008, FOPS: ISO 3449: 2005 LEVEL II ISO 3471: 2008, FOPS: ISO 3449: 2005 LEVEL II
Declared Sound Levels – Operator Sound Pressure Level (ISO 6396:2008): 68 dB(A)* – Exterior Sound Power Level (ISO 6395:2008): 101 dB(A)* – Operator Sound Pressure Level (ISO 6396:2008): 68 dB(A)* – Exterior Sound Power Level (ISO 6395:2008): 101 dB(A)*
Note (2) The Blue Angel environmental label is an optional attachment for Europe only. The Blue Angel environmental label is an optional attachment for Europe only.
Note (1) * Measurements were conducted at 70% of maximum engine cooling fan speed. Sound level may vary at different engine cooling fan speeds. The cab was properly installed and maintained. The measurements were conducted with the cab doors and the cab windows closed. * Measurements were conducted at 70% of maximum engine cooling fan speed. Sound level may vary at different engine cooling fan speeds. The cab was properly installed and maintained. The measurements were conducted with the cab doors and the cab windows closed.
Spec Value
Rear Axle – Oscillation Angle by Tire Size – 20.5 R25, 550/65, 600/65, 650/65 ± 10.5 degrees ± 10.5 degrees
Rear Axle Oscillating Oscillating
Brakes – Parking Spring applied hydraulically released Spring applied hydraulically released
Rear Axle – Traction Aid – Optional Limited slip differential Limited slip differential
Front Axle Fixed Fixed
Brakes – Service Inboard wet disc Inboard wet disc
Note (2) Offset rims available to meet European roading requirements. Offset rims available to meet European roading requirements.
Front Axle – Traction Aid** Locking differential (standard) Locking differential (standard)
Note (3) **Differential front locking axle can be engaged on the go at full torque to 10 km/h (6.2 mph) on the 930M. **Differential front locking axle can be engaged on the go at full torque to 10 km/h (6.2 mph) on the 930M.
Note (1) Power train is governed by the Caterpillar exclusive Intelligent Power Management system to deliver peak performance and efficiency. Power train is governed by the Caterpillar exclusive Intelligent Power Management system to deliver peak performance and efficiency.
Spec Value
Lift Cylinder, Double Acting – Rod Diameter 2.6 in 65 mm
Maximum Flow – Implement Pump 50 gal/min 190 l/min
Relief Pressure – Tilt Cylinder 4061 psi 28000 kPa
Cycle Times – Performance (HP+) at 1,800 rpm/Standard Power Mode at 1,600 rpm – Raise (Ground Level to Maximum Lift) 5.1/5.7 seconds 5.1/5.7 seconds
Cycle Times – Performance (HP+) at 1,800 rpm/Standard Power Mode at 1,600 rpm – Dump (at Maximum Lift Height) 1.5/1.7 seconds 1.5/1.7 seconds
Lift Cylinder, Double Acting – Stroke 28.7 in 728 mm
Tilt Cylinder, Double Acting – Rod Diameter 3.5 in 90 mm
Tilt Cylinder, Double Acting – Stroke 21.9 in 555 mm
Lift Cylinder, Double Acting – Bore Diameter 4.7 in 120 mm
Cycle Times – Performance (HP+) at 1,800 rpm/Standard Power Mode at 1,600 rpm – Float Down (Maximum Lift to Ground Level) 2.7/2.7 seconds 2.7/2.7 seconds
Note (2) Flow values listed are for a machine running in Performance Power Mode (1,800 rpm) Flow values listed are for a machine running in Performance Power Mode (1,800 rpm)
Tilt Cylinder, Double Acting – Bore Diameter 5.9 in 150 mm
Maximum Flow – Implement Pump – 3rd Function* 50 gal/min 190 l/min
Note (1) Implement system uses a dedicated load sensing variable displacement pump with dual double acting lift cylinders and a single double acting tilt cylinder. Implement system uses a dedicated load sensing variable displacement pump with dual double acting lift cylinders and a single double acting tilt cylinder.
Relief Pressure – Tilt Cylinder – 3rd Function Maximum Working Pressure 3626 psi 25000 kPa
Maximum Working Pressure – Implement Pump 3626 psi 25000 kPa
Note (3) * 3rd function flow is fully adjustable from 20% to 100% of maximum flow through the secondary display when equipped. * 3rd function flow is fully adjustable from 20% to 100% of maximum flow through the secondary display when equipped.
Cycle Times – Performance (HP+) at 1,800 rpm/Standard Power Mode at 1,600 rpm – Total Cycle Time 9.3/10.1 seconds 9.3/10.1 seconds
Spec Value
Forward and Reverse – Range 3 17 mile/h 27 km/h
Note * Creeper control allows maximum speed range adjustability from 1 km/h (0.6 mph) to 13 km/h (8 mph) in Range 1 through the secondary display when equipped. Factory default is 7 km/h (4.4 mph). * Creeper control allows maximum speed range adjustability from 1 km/h (0.6 mph) to 13 km/h (8 mph) in Range 1 through the secondary display when equipped. Factory default is 7 km/h (4.4 mph).
Forward and Reverse – Range 1* 1-13 km/h (0.6-8 mph) 1-13 km/h (0.6-8 mph)
Forward and Reverse – Range 2 8 mile/h 13 km/h
Forward and Reverse – Range 4 25 mile/h 40 km/h
Spec Value
Rear Axles 6.6 gal (US) 25 l
Front Axles 6.9 gal (US) 26 l
Hydraulic Tank 23.8 gal (US) 90 l
Engine Crankcase 5.3 gal (US) 20 l
Diesel Exhaust Fluid (DEF) Tank 5 gal (US) 19 l
Transmission – Gear Box 2.2 gal (US) 8.5 l
Cooling System 7.9 gal (US) 30 l
Hydraulic System – Including Tank 43.6 gal (US) 165 l
Fuel Tank 51.5 gal (US) 195 l
Spec Value
Maximum Steering Torque – 0° (Straight Machine) 37155 ft·lbf 50375 N·m
Maximum Steering Torque – 40° (Full Turn) 27747 ft·lbf 37620 N·m
Maximum Flow – Steering Pump 34 gal/min 130 l/min
Steering Cycle Times – Full Left to Full Right – Minimum RPM: Pump Flow Limited 2.8 s 2.8 s
Maximum Working Pressure – Steering Pump 3500 psi 24130 kPa
Steering Cylinder, Double Acting – Bore Diameter 2.8 in 70 mm
Steering Cylinder, Double Acting – Rod Diameter 1.6 in 40 mm
Steering Cylinder, Double Acting – Stroke 17.2 in 438 mm
Note (1) Steering system uses a dedicated load sensing variable displacement pump with dual double acting cylinders. Steering system uses a dedicated load sensing variable displacement pump with dual double acting cylinders.
Steering Cycle Times – Full Left to Full Right – Maximum RPM: 90 rpm Steering Wheel Speed 2.4 s 2.4 s
Note (2) Flow values listed are for a machine running in Performance Power Mode (1,800 rpm). Flow values listed are for a machine running in Performance Power Mode (1,800 rpm).
Spec Value
Full Turn Tip Load 19563 lb 8876 kg

Standard Equipment

POWER TRAIN

  • Axle seal guards
  • Auto idle shut down feature
  • Cat® C7.1 engine: – Power Modes (Standard and Performance) – Power by Range (High Power in Range 4) – Turbocharged and aftercooled – Filtered crankcase breather – Diesel particulate filter (Fit for Life)
  • Coolant protection to –34° C (–29° F)
  • Differential lock in front axle
  • Dry type air cleaner
  • Enclosed wet disc full hydraulic brakes
  • Fuel priming pump, automatic
  • Fuel water separator
  • Hydraulically driven demand cooling fan
  • Intelligent hydrostatic transmission: – Power train modes – Directional Shift Aggressiveness – Rimpull control, adjust wheel torque – Creeper control, adjust ground speed
  • Lubed for life driveshafts
  • Parking brake, electric
  • Wide spaced 6 fins per inch cooling package
  • S·O·SSM sampling ports
  • Throttle lock and maximum speed limiter

HYDRAULICS

  • Automatic lift, lower and tilt kickouts
  • Bucket and Fork Modes, adjustable in-cab
  • Cylinder damping at kickout and end stops
  • Fine Mode control in Fork Mode
  • Hydraulic Response setting
  • Load sensing hydraulics and steering
  • Seat-mounted hydraulic joystick controls

ELECTRICAL

  • Alternator, 115-amp, heavy duty
  • 12V power supply in cab (2)
  • Batteries, 1,000 CCA (2) 24 volt system
  • Back-up alarm
  • Emergency shutdown switch
  • Heavy duty gear reduction starter
  • Product Link PRO with subscription
  • Remote jump start post
  • Resettable main and critical function breakers

OPERATOR ENVIRONMENT

  • 75 mm (3 in) retractable seat belt, with audible alarm and indicator
  • Automatic temperature control
  • Cab, enclosed and pressurized
  • Cup holders
  • External heated mirrors with lower parabolic
  • Ground level cab door release
  • Gauges: – Digital hour meter, odometer, tachometer, ground speed and direction indicator – Engine coolant temperature gauge – Fuel and Diesel Exhaust Fluid level – Hydraulic oil temperature gauge
  • Hydraulic control lockout
  • Interior cab lighting, door and dome
  • Interior rearview mirrors (2)
  • Lunch box storage
  • Operator warning system indicators
  • Radio ready speakers
  • Rear window defrost, electric
  • Seat-mounted controls, adjustable
  • Sliding glass on the side windows
  • Column mounted multi function control – lights, wipers, turn signal
  • Suspension seat, fabric
  • Tilt and telescopic steering wheel
  • Wet arm wiper/washer, front and rear

OTHER STANDARD EQUIPMENT

  • Large-access enclosure doors
  • Parallel lift loader linkage
  • Recovery hitch with pin
  • Remote mounted lubrication points
  • Lockable compartments and enclosures

Optional Equipment

Cab, deluxe (standard in Europe):

  • Automatic blower control
  • Electrically adjustable heated mirrors (2)
  • LED interior lighting
  • Secondary display to adjust settings

Cold start package:

  • Ether starting aid, block heater and additional batteries 1,000 CCA (4 in total)

Guards

  • Power train, (lower, side, driveshaft and crankcase)
  • Windshield and lights
  • Cylinders, tilt and steering

Radio packages:

  • Radio ready with Bluetooth
  • Radio, AM/FM with Bluetooth and clock
  • Radio, AM/FM with CD player deluxe, weatherband, Bluetooth and clock

Seats:

  • Deluxe seat – fully adjustable fabric air suspension seat with high seat backrest
  • Premium seat – fully adjustable leather and fabric air suspension with high backrest and air lumbar support. Heated and cooled bottom cushion and backrest.

Steering:

  • Dual mode and Secondary

Tires:

  • Bias ply, 17.5, 20.5-25
  • Radial, 17.5, 20.5, 23.5, 550/65, 600/65, 650/65 R25
