Caterpillar
930M Waste Handler Small Wheel Loader
Maximum Gross Power
168 hp
125 kW
Operating Weight
37713 lb
17107 kg
Bucket Capacities
3.0-5.0 m3 (3.9-6.5 yd3)
3.0-5.0 m3 (3.9-6.5 yd3)
Overview

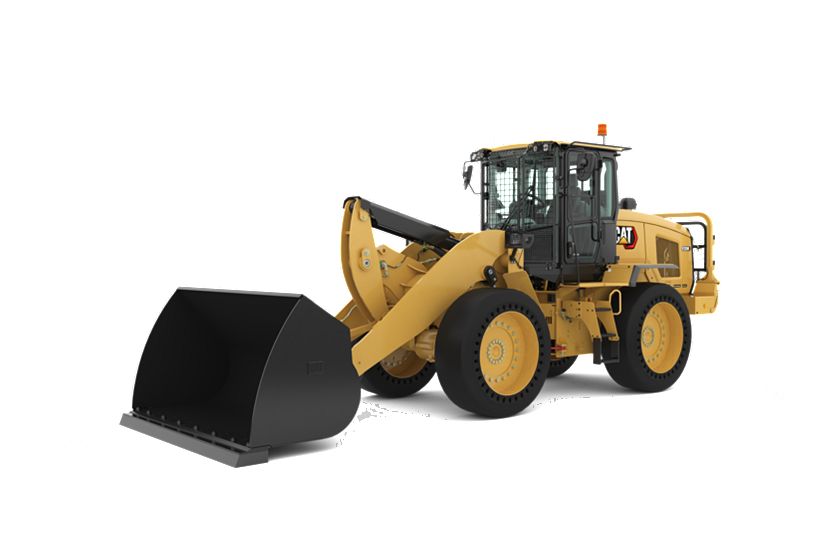

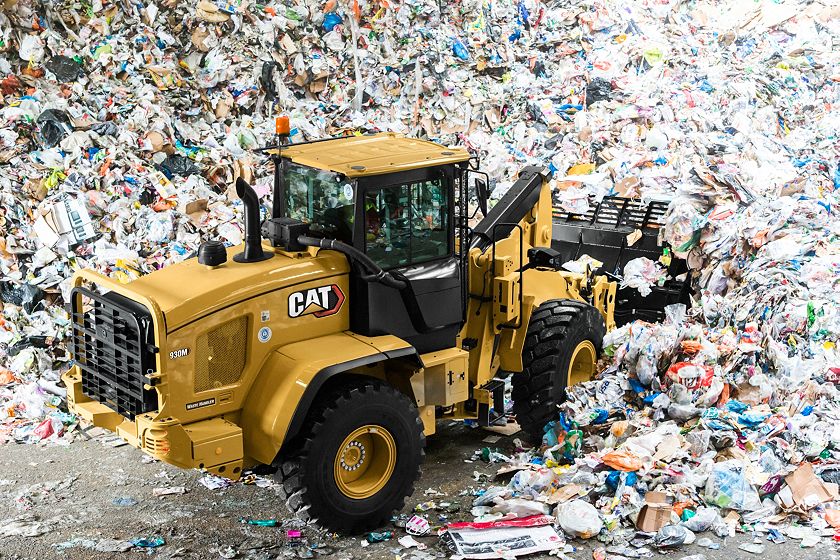

The Cat® 930M Waste Handler sets a new standard for productivity, fuel efficiency and comfort. A high torque, low speed C7.1 engine works in concert with an intelligent hystat power train to deliver fuel efficiency as standard. A complete range of guarding and debris management solutions are available to meet the needs of the most demanding environments. Extremely low sound levels, large spacious cab and intuitive controls keep you working comfortably all day and even all night! Experience this industry benchmark.
Media

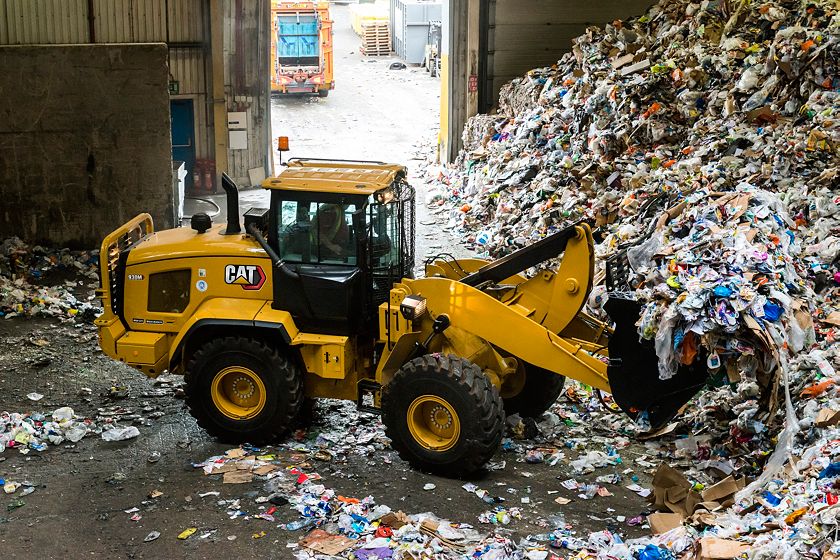

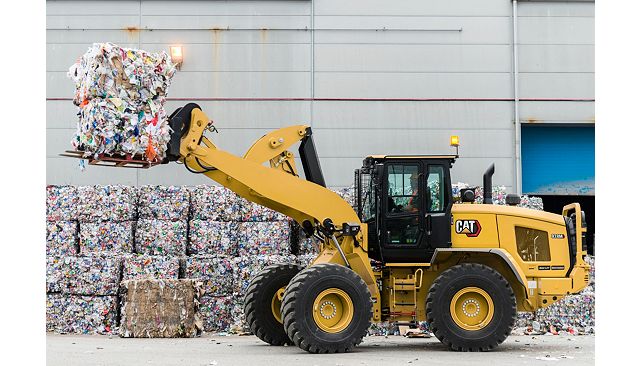

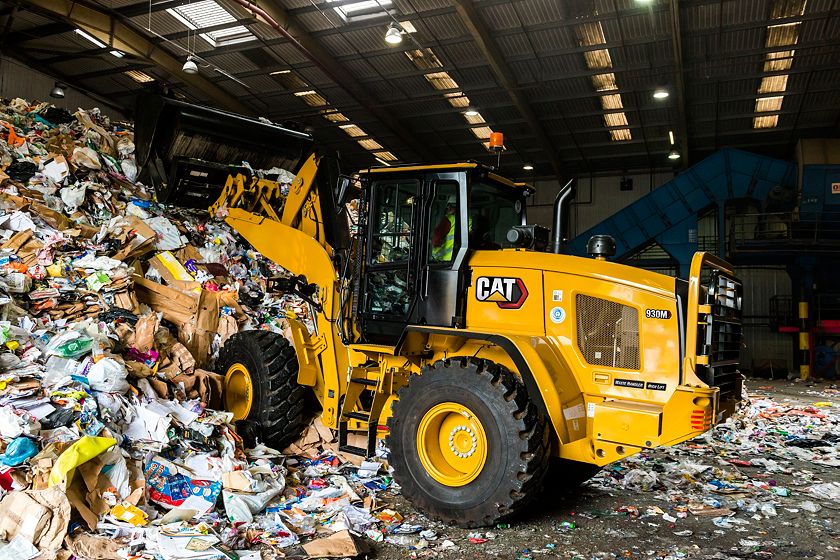

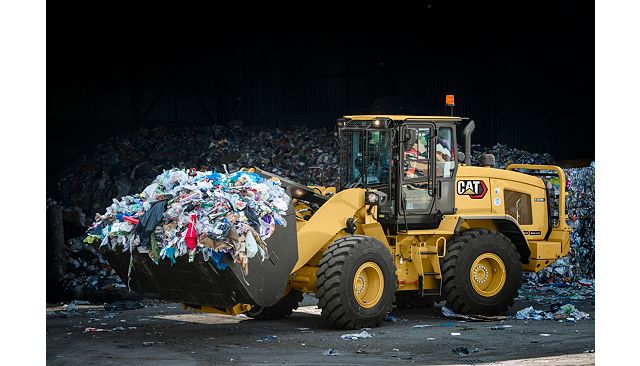

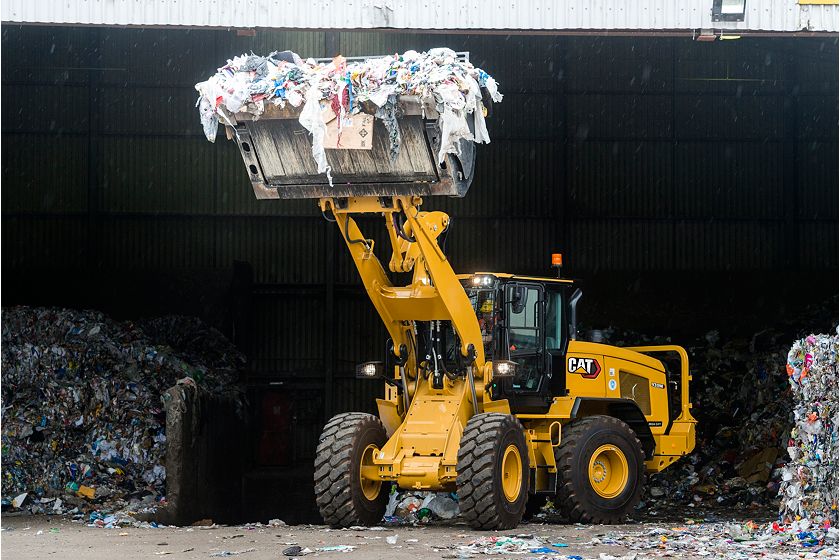

Photos
Videos
360° View

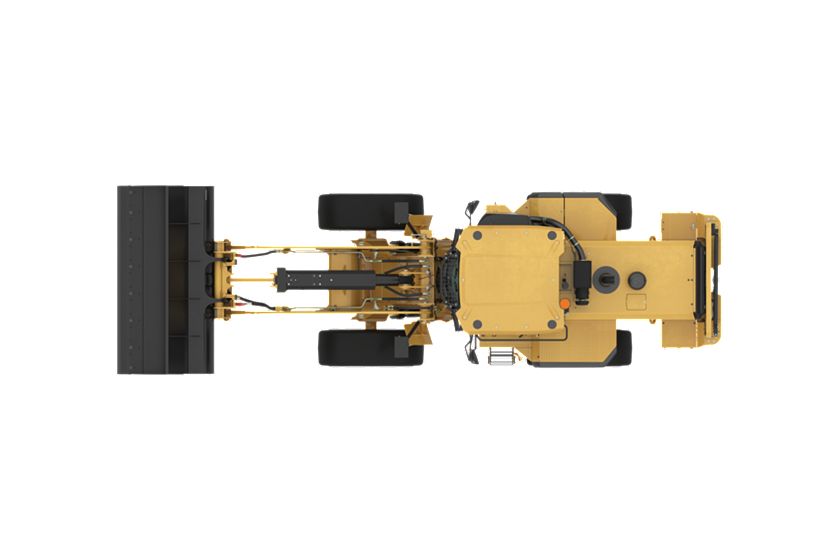

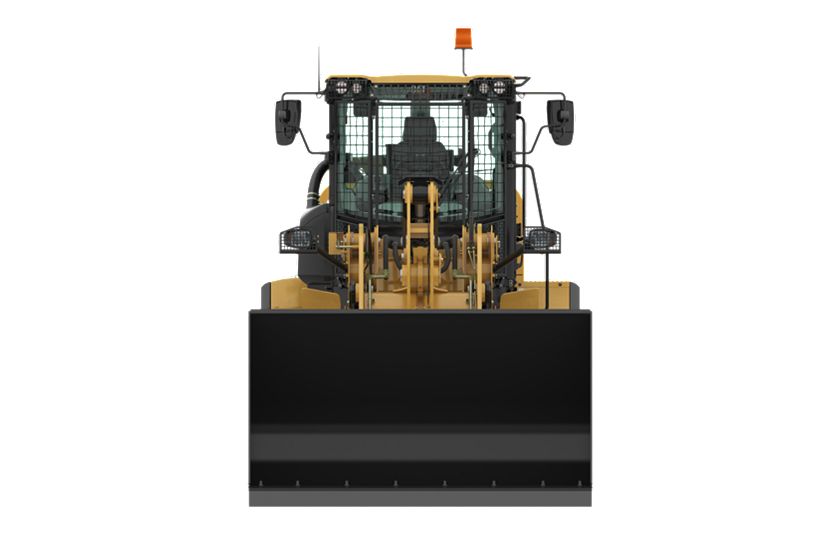

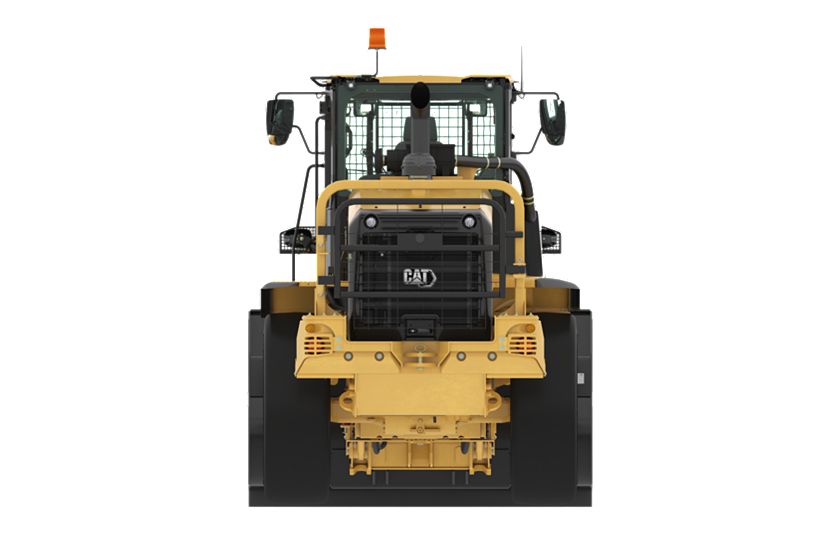

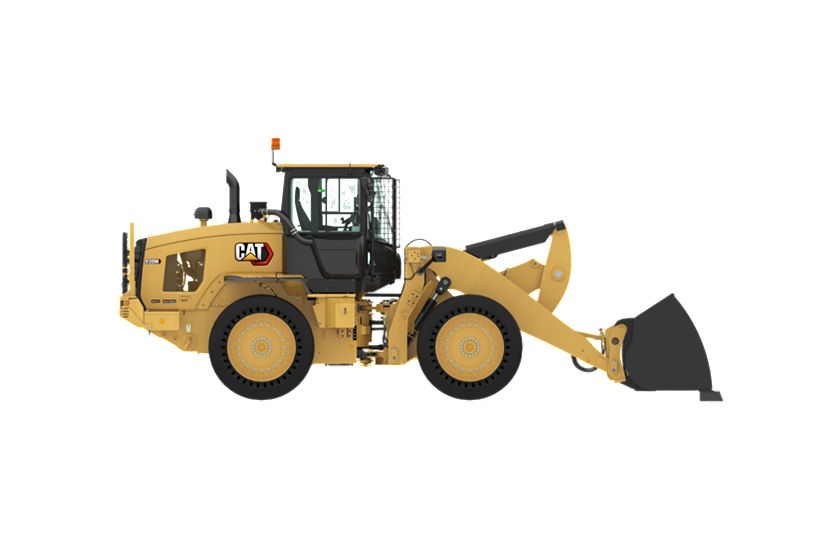

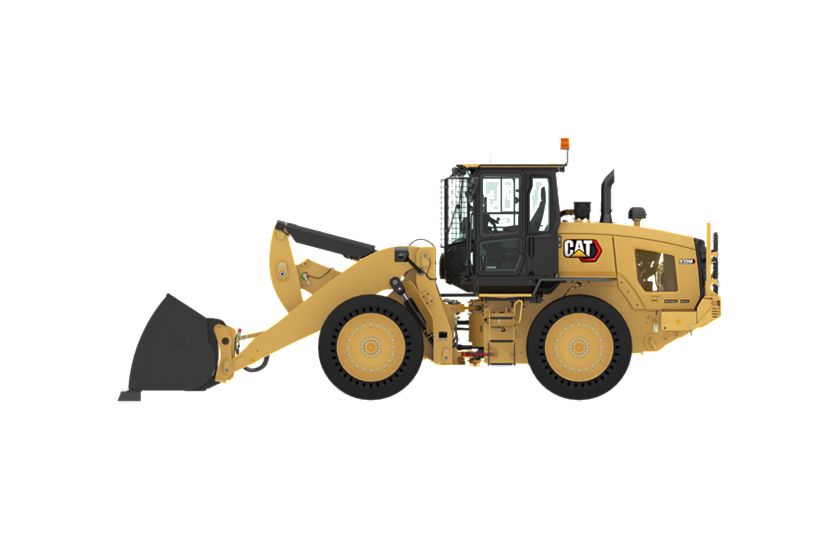

Exterior
360° Exterior view. Double click on the image to zoom in on any area of the product.
Interior
360° Interior view. Double click on the image to zoom in on any area of the product.
Features
Efficiently Powerful
Enjoy All Day Comfort
Customize Your Experience
Service
Customer Support
Details
Specifications
Engine
| Spec | Value |
|---|---|
| Maximum Gross Power | 168 hp 125 kW |
| Bore | 4 in 105 mm |
| Stroke | 5 in 135 mm |
| Displacement | 427 in³ 7.01 l |
| Note (3) | No derating required up to 3000 m (10,000 ft) altitude. Auto derate protects hydraulic and transmission systems. No derating required up to 3000 m (10,000 ft) altitude. Auto derate protects hydraulic and transmission systems. |
| Maximum Gross Power – ISO 14396 (Performance Power Mode: Range 1-4) | 168 hp 125 kW |
| Maximum Gross Power – Maximum Engine Speed (Performance Power Mode: Range 1-4) | 1800 r/min 1800 r/min |
| Maximum Gross Torque – ISO 14396 (Performance Power Mode: Range 1-4) | 601 ft·lbf 815 N·m |
| Maximum Gross Power – Maximum Engine Speed (Standard Power Mode: Range 1-3*) | 1600 r/min 1600 r/min |
| Maximum Gross Torque – ISO 14396 (Standard Power Mode: Range 1-3*) | 586 ft·lbf 795 N·m |
| Maximum Gross Power – ISO 14396 (Standard Power Mode: Range 1-3*) | 160 hp 119 kW |
| Maximum Net Torque – SAE J1349 (Performance [HP+] Power Mode: Range 1-4) | 588 ft·lbf 797 N·m |
| Maximum Net Torque – SAE J1349 (Standard Power Mode: Range 1-3*) | 573 ft·lbf 777 N·m |
| Emissions | The Cat C7.1 engine meets U.S. EPA Tier 4 Final/EU Stage V and Korea Tier 4 Final emission standards. The Cat C7.1 engine meets U.S. EPA Tier 4 Final/EU Stage V and Korea Tier 4 Final emission standards. |
| Engine Model | Cat® C7.1 Cat® C7.1 |
| Note (1) | *Range 4 power and torque is equal to Performance Mode with Caterpillar Power by Range technology. *Range 4 power and torque is equal to Performance Mode with Caterpillar Power by Range technology. |
| Note (2) | Net power ratings are tested at the reference conditions for the specified standard and denote power available at the flywheel when the engine is equipped with alternator, air cleaner, emission components and fan at specified speed. Net power ratings are tested at the reference conditions for the specified standard and denote power available at the flywheel when the engine is equipped with alternator, air cleaner, emission components and fan at specified speed. |
| Maximum Net Torque – ISO 9249:2007 (Standard Power Mode: Range 1-3*) | 572 ft·lbf 776 N·m |
| Maximum Net Torque – ISO 9249:2007 (Performance Power Mode: Range 1-4) | 587 ft·lbf 796 N·m |
| Net Power – ISO 9249 (metric) at Minimum Fan Speed (Performance Power Mode: Range 1-4) | 166 hp 122 kW |
| Maximum Gross Power – ISO 14396 (metric) (Performance Power Mode: Range 1-4) | 170 hp 125 kW |
| Net Power – SAE J1349 at Minimum Fan Speed (Performance Power Mode: Range 1-4) | 163 hp 122 kW |
| Net Power – ISO 9249 at Minimum Fan Speed (Performance Power Mode: Range 1-4) | 164 hp 122 kW |
| Engine Power – ISO 14396 – Metric | 170 hp 125 kW |
| Engine Power – ISO 14396:2002 | 168 hp 125 kW |
| Maximum Gross Power – ISO 14396 (metric) (Standard Power Mode: Range 1-3*) | 162 hp 119 kW |
| Net Power – ISO 9249 (metric) at Minimum Fan Speed (Standard Power Mode: Range 1-3*) | 158 hp 116 kW |
| Net Power – ISO 9249 at Minimum Fan Speed (Standard Power Mode: Range 1-3*) | 156 hp 116 kW |
| Net Power (Standard Power Mode: Range 1-3*) | 1600 r/min 1600 r/min |
| Net Power – SAE J1349 at Minimum Fan Speed (Standard Power Mode: Range 1-3*) | 156 hp 116 kW |
| Net Power (Performance Power Mode: Range 1-4) | 1800 r/min 1800 r/min |
Buckets
| Spec | Value |
|---|---|
| Bucket Capacities | 3.0-5.0 m3 (3.9-6.5 yd3) 3.0-5.0 m3 (3.9-6.5 yd3) |
Operating Specifications
| Spec | Value |
|---|---|
| Note (2) | ^Dimensions listed are for a machine configured with standard counterweights, waste guarding, rear waste gate, 80 kg (176 lb) operator, and new solid tires. ^Dimensions listed are for a machine configured with standard counterweights, waste guarding, rear waste gate, 80 kg (176 lb) operator, and new solid tires. |
| Note (1) | **Dimensions listed are for a machine configured with optional counterweights, waste guarding, 80 kg (176 lb) operator, and Michelin 20.5 R25 XMINE D2 tires. **Dimensions listed are for a machine configured with optional counterweights, waste guarding, 80 kg (176 lb) operator, and Michelin 20.5 R25 XMINE D2 tires. |
| Full Turn Tip Load (2) | 9525 kg (20,998 lb)^ 9525 kg (20,998 lb)^ |
| Full Turn Tip Load (1) | 8573 kg (18,900 lb)** 8573 kg (18,900 lb)** |
Weights
| Spec | Value |
|---|---|
| Operating Weight | 37713 lb 17107 kg |
| Note (2) | ^Dimensions listed are for a machine configured with standard counterweights, waste guarding, rear waste gate, 80 kg (176 lb) operator, and new solid tires. ^Dimensions listed are for a machine configured with standard counterweights, waste guarding, rear waste gate, 80 kg (176 lb) operator, and new solid tires. |
| Note (1) | **Dimensions listed are for a machine configured with optional counterweights, waste guarding, 80 kg (176 lb) operator, and Michelin 20.5 R25 XMINE D2 tires. **Dimensions listed are for a machine configured with optional counterweights, waste guarding, 80 kg (176 lb) operator, and Michelin 20.5 R25 XMINE D2 tires. |
| Operating Weight (1) | 15 381 kg (33,908 lb)** 15 381 kg (33,908 lb)** |
| Operating Weight (2) | 17 107 kg (37,713 lb)^ 17 107 kg (37,713 lb)^ |
Cab
| Spec | Value |
|---|---|
| ROPS | ISO 3471:2008 ISO 3471:2008 |
| FOPS | ISO 3449:2005 LEVEL II ISO 3449:2005 LEVEL II |
| Note (1) |
* Measurements were conducted at 70% of maximum engine cooling fan speed. Sound level may vary at different engine cooling fan speeds. The cab was properly installed and maintained. The measurements were conducted with the cab doors and the cab windows closed. – The Blue Angel environmental label is an optional attachment for Europe only. * Measurements were conducted at 70% of maximum engine cooling fan speed. Sound level may vary at different engine cooling fan speeds. The cab was properly installed and maintained. The measurements were conducted with the cab doors and the cab windows closed. – The Blue Angel environmental label is an optional attachment for Europe only. |
| Declared Sound Levels – Operator Sound Pressure Level (ISO 6396:2008)* | 68 dB(A) 68 dB(A) |
| Declared Sound Levels – Exterior Sound Power Level (ISO 6395:2008)* | 101 dB(A) 101 dB(A) |
Air Conditioning System
| Spec | Value |
|---|---|
| Air Conditioning | The air conditioning system on this machine contains the flourinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.9 kg of refrigerant which has a CO2 equivalent of 2.717 metric tonnes. The air conditioning system on this machine contains the flourinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.9 kg of refrigerant which has a CO2 equivalent of 2.717 metric tonnes. |
Loader Hydraulic System
| Spec | Value |
|---|---|
| Maximum Flow – Implement Pump | 50 gal/min 190 l/min |
| Maximum Working Pressure – Implement Pump | 3771 psi 26000 kPa |
| Cycle Times – Performance (HP+) at 1,800 rpm/Standard Power Mode at 1,600 rpm – Raise (Ground Level to Maximum Lift) | 5.1/5.7 seconds 5.1/5.7 seconds |
| Relief Pressure – Tilt Cylinder – 3rd and 4th Function Maximum Working Pressure | 4061 psi 28000 kPa |
| Relief Pressure – Tilt Cylinder | 4061 psi 28000 kPa |
| Note (1) | Implement system uses a dedicated load sensing variable displacement pump with dual double acting lift cylinders and a single double acting tilt cylinder. Implement system uses a dedicated load sensing variable displacement pump with dual double acting lift cylinders and a single double acting tilt cylinder. |
| Cycle Times – Performance (HP+) at 1,800 rpm/Standard Power Mode at 1,600 rpm – Dump (at Maximum Lift Height) | 1.5/1.7 seconds 1.5/1.7 seconds |
| Cycle Times – Performance (HP+) at 1,800 rpm/Standard Power Mode at 1,600 rpm – Float Down (Maximum Lift to Ground Level) | 2.7/2.7 seconds 2.7/2.7 seconds |
| Note (2) | Flow values listed are for a machine running in Performance Power Mode (1,800 rpm). Flow values listed are for a machine running in Performance Power Mode (1,800 rpm). |
| Maximum Flow – Implement Pump – 4th Function Maximum Flow* | 42 gal/min 160 l/min |
| Note (3) | * 3rd and 4th function flow is fully adjustable from 20% to 100% of maximum flow through the touch screen display when equipped. * 3rd and 4th function flow is fully adjustable from 20% to 100% of maximum flow through the touch screen display when equipped. |
| Relief Pressure – Tilt Cylinder – 3rd and 4th Function Relief Pressure | 4061 psi 28000 kPa |
| Cycle Times – Performance (HP+) at 1,800 rpm/Standard Power Mode at 1,600 rpm – Total Cycle Time | 9.3/10.1 seconds 9.3/10.1 seconds |
| Maximum Flow – Implement Pump – 3rd Function Maximum Flow* | 50 gal/min 190 l/min |
| Lift Cylinder: Standard Lift Linkage – Stroke | 28.7 in 728 mm |
| Tilt Cylinder: Standard Lift Linkage – Bore Diameter | 5.9 in 150 mm |
| Lift Cylinder: Standard Lift Linkage – Bore Diameter | 4.7 in 120 mm |
| Lift Cylinder: Standard Lift Linkage – Rod Diameter | 2.6 in 65 mm |
| Tilt Cylinder: Standard Lift Linkage – Rod Diameter | 3.5 in 90 mm |
| Tilt Cylinder: Standard Lift Linkage – Stroke | 21.9 in 555 mm |
Steering
| Spec | Value |
|---|---|
| Steering Cylinder, Double Acting – Bore Diameter | 2.8 in 70 mm |
| Steering Cylinder, Double Acting – Rod Diameter | 1.6 in 40 mm |
| Maximum Steering Torque – 0° (Straight Machine) | 37155 ft·lbf 50375 N·m |
| Steering Cylinder, Double Acting – Stroke | 17.2 in 438 mm |
| Steering Cycle Times – Full Left to Full Right – Maximum RPM: 90 rpm Steering Wheel Speed | 2.4 s 2.4 s |
| Maximum Working Pressure – Steering Pump | 3500 psi 24130 kPa |
| Steering Cycle Times – Full Left to Full Right – Minimum RPM: Pump Flow Limited | 2.8 s 2.8 s |
| Maximum Steering Torque – 40° (Full Turn) | 27747 ft·lbf 37620 N·m |
| Note (1) | Steering system uses a dedicated load sensing variable displacement pump with dual double acting cylinders. Steering system uses a dedicated load sensing variable displacement pump with dual double acting cylinders. |
| Note (2) | Flow values listed are for a machine running in Performance Power Mode (1,800 rpm). Flow values listed are for a machine running in Performance Power Mode (1,800 rpm). |
| Maximum Flow – Steering Pump | 34 gal/min 130 l/min |
Transmission
| Spec | Value |
|---|---|
| Forward and Reverse – Range 4 | 25 mile/h 40 km/h |
| Forward and Reverse – Range 3 | 17 mile/h 27 km/h |
| Forward and Reverse – Range 2 | 8 mile/h 13 km/h |
| Note | *Creeper control allows maximum speed range adjustability from 1 km/h (0.6 mph) to 13 km/h (8 mph) in Range 1 through the touch screen display when equipped. Factory default is 7 km/h (4.4 mph). *Creeper control allows maximum speed range adjustability from 1 km/h (0.6 mph) to 13 km/h (8 mph) in Range 1 through the touch screen display when equipped. Factory default is 7 km/h (4.4 mph). |
| Forward and Reverse – Range 1* | 1-13 km/h (0.6-8 mph) 1-13 km/h (0.6-8 mph) |
Power Train
| Spec | Value |
|---|---|
| Rear Axle – Oscillation Angle by Tire Size – 20.5 R25, 550/65, 600/65, 650/65 | ± 10.5 degrees ± 10.5 degrees |
| Note (3) | Differential front locking axle can be engaged on the go at full torque to 10 km/h (6.2 mph) on the 930M. Differential front locking axle can be engaged on the go at full torque to 10 km/h (6.2 mph) on the 930M. |
| Note (2) | Offset rims available to meet European roading requirements. Offset rims available to meet European roading requirements. |
| Rear Axle | Oscillating Oscillating |
| Front Axle | Fixed Fixed |
| Brakes – Parking | Spring applied hydraulically released Spring applied hydraulically released |
| Note (1) | Power train is governed by the Caterpillar exclusive Intelligent Power Management system to deliver peak performance and efficiency. Power train is governed by the Caterpillar exclusive Intelligent Power Management system to deliver peak performance and efficiency. |
| Front Axle – Traction Aid | Locking differential Locking differential |
| Rear Axle – Traction Aid – Optional | Limited slip differential Limited slip differential |
| Brakes – Service | Inboard wet disc Inboard wet disc |
| Rear Axle – Oscillation Angle by Tire Size – Solid Tires, 750/65, 620/65, Skidder | ± 7 degrees ± 7 degrees |
Service Refill Capacities
| Spec | Value |
|---|---|
| Cooling System | 7.9 gal (US) 30 l |
| Engine Crankcase | 5.3 gal (US) 20 l |
| Axles – Rear | 6.6 gal (US) 25 l |
| Hydraulic Tank | 23.8 gal (US) 90 l |
| Transmission – Gear Box | 2.2 gal (US) 8.5 l |
| Fuel Tank | 51.5 gal (US) 195 l |
| Axles – Front | 6.9 gal (US) 26 l |
| Diesel Exhaust Fluid (DEF) Tank | 5 gal (US) 19 l |
| Hydraulic System – Including Tank | 43.6 gal (US) 165 l |
Sustainability
| Spec | Value |
|---|---|
| Recyclability | 94% 94% |
Standard Equipment
POWER TRAIN
- Axle Duo-Cone™ seal guards
- Auto idle shut down feature
- Cat C7.1 engine
– Power modes (Standard and Performance)
– Power by range (High Power in Range 4)
– Turbocharged and aftercooled
– Diesel particulate filter (Fit for Life) - Coded start (requires secondary display)
- Differential lock in front axle
- Enclosed wet disc full hydraulic brakes
- Hydraulically driven demand cooling fan
- Hydrostatic transmission with electronic control
– Operator modes (Default, TC, Hystat, and Ice)
– Directional Shift Aggressiveness (fast, medium, slow)
– Rimpull control, adjust wheel torque
– Creeper control, adjust ground speed - Parking brake, electric
- Single plane cooling package wide six fins per inch density
- Oil sampling ports
- Throttle lock and max speed limiter
HYDRAULICS
- Automatic lift lower and tilt kickouts, adjustable in-cab
- Bucket and fork modes, adjustable in-cab
- Cylinder damping at kickout and mechanical end stops
- Fine mode control (fast, medium, slow)
- Hydraulic response setting (fast, medium, slow)
- Load sensing hydraulics and steering
- Seat-mounted hydraulic joystick controls
ELECTRICAL
- Alternator, 115 amp, heavy duty
- Batteries, 1,000 CCA (2) 24V system, disconnect switch
- Back-up alarm
- Emergency shutdown switch
- Halogen work and roading lights, LED rear tail lights
- Product Link PRO with three year subscription
- Remote jump start post
- Resettable main and critical function breakers
OPERATOR ENVIRONMENT
- 75 mm (3 in) High-Vis retractable seat belt, with audible alarm and indicator
- Automatic temperature control
- Cab, pressurized
- Camera, rearview
- External heated mirrors with lower parabolic
- Ground level cab door release
- Hydraulic control lockout
- Mirror, single
- Lunch box storage
- Radio ready speakers
- Rear window defrost, electric
- Column mounted multi function control – lights, wipers, turn signal
- Tilt and telescopic steering wheel
- Tinted front glass
- Wet arm wiper/washer, 2-speed and intermittent, front, lights, wipers, turn signal
- Suspension seat, fabric
OTHER STANDARD EQUIPMENT
- Large-access enclosure doors with adjustable close/open force
- Cat optimized Z-bar linkage with parallel lift
- Recovery hitch, with pin
- Remote mounted lubrication points
- Lockable compartments and enclosures
Optional Equipment
OPTIONAL EQUIPMENT
- Autolube, integrated in secondary display
- Auxiliary flow, third and fourth function
- Differential, limited slip, rear
- Beacon light, strobe
- Cab, deluxe (standard in Europe)
– Camera, rearview integrated into advanced display
– Electrically adjustable external heated mirrors (2)
– Secondary display to enable features and adjust parameters
– LED interior lighting
– Sunscreen, front and rear
– Touchscreen secondary display
– Ride control adjustable speed activation
– Preventative maintenance reminders
– Integrated help function (26 languages) - Camera, roof mounted, front view with separate display
- Cold start package
– Ether starting aid, block heater and additional batteries, 1,000 CCA (4 total) - Counterweight, additional options
- Coupler, (Fusion and ISO 23727)
- Debris packages (low, medium, high)
- Fenders (extended cover and full coverage)
- Guarding packages
- Linkage, high lift
- Lights, auxiliary, halogen or LED with engine and DEF compartment lights
- Payload Technology
– Cat Production Measurement (CPM)
– CPM Printer - Product Link ELITE with capabilities for software push, data logging, histogram and trend mapping
- Radio packages
- Rear Object Detection
- Ride Control System, adjustable through secondary display
- Seats
– Deluxe seat – fully adjustable fabric air suspension seat with mid seat backrest
– Premium seat – fully adjustable leather and fabric air suspension with high backrest and air lumbar support. Seat is heated and ventilated on bottom cushion and backrest. - Steering
– Dual mode and secondary - Tire Pressure Monitoring (TPM)
Related Products
Straight Snow Pushes
Pallet Fork Carriages
Pipe & Pole Forks
General Purpose Buckets - Performance Series
Sand & Gravel Buckets
Light Material Buckets
3.66 m (12 ft)
3.66 m (12 ft)
4.87 m (16 ft)
4.26 m (14 ft)
4.87 m (16 ft)
4.26 m (14 ft)
3.66 m (12 ft)
4.26 m (14 ft)
4.87 m (16 ft)
3.66 m (12 ft)
4.26 m (14 ft)
4.87 m (16 ft)
1566 mm (62 in)
1566 mm (62 in)
1566 mm (62 in)
1524 mm (60 in)
1829 mm (72 in)
2.9 m3 (3.8 yd3), Fusion™ Coupler
2.5 m3 (3.3 yd3), Fusion™ Coupler, Bolt-On Cutting Edge
2.7 m3 (3.5 yd3), Fusion™ Coupler
2.5 m3 (3.3 yd3), Fusion™ Coupler, Bolt-On Cutting Edge
2.9 m3 (3.8 yd3), Fusion™ Coupler, Bolt-On Cutting Edge
2.5 m3 (3.3 yd3), Fusion™ Coupler
2.7 m3 (3.5 yd3), Fusion™ Coupler, Bolt-On Cutting Edge
2.5 m3 (3.3 yd3), Fusion™ Coupler
2.7 m3 (3.5 yd3), Fusion™ Coupler
2.5 m3 (3.3 yd3), Fusion™ Coupler, Bolt-On Cutting Edge
2.9 m3 (3.8 yd3), Fusion™ Coupler, Bolt-On Cutting Edge
2.7 m3 (3.5 yd3), Fusion™ Coupler, Bolt-On Cutting Edge
3.2 m3 (4.2 yd3), Fusion™ Coupler, Bolt-On Cutting Edge
4.2 m3 (5.5 yd3), Fusion™ Coupler, Bolt-On Cutting Edge
3.5 m3 (4.6 yd3), Fusion™ Coupler, Bolt-On Cutting Edge
5.0 m3 (6.5 yd3), Fusion™ Coupler, Bolt-On Cutting Edge
3.0 m3 (3.9 yd3), Fusion™ Coupler, Bolt-On Cutting Edge
3.8 m3 (5.0 yd3), Fusion™ Coupler, Bolt-On Cutting Edge
3.8 m3 (5.0 yd3), Pin On, Bolt-On Cutting Edge
