Cat

2134 mm (84 in) Angle Blade

Robust, high capacity design for moving dirt, gravel, livestock waste and snow.

Media

Photos

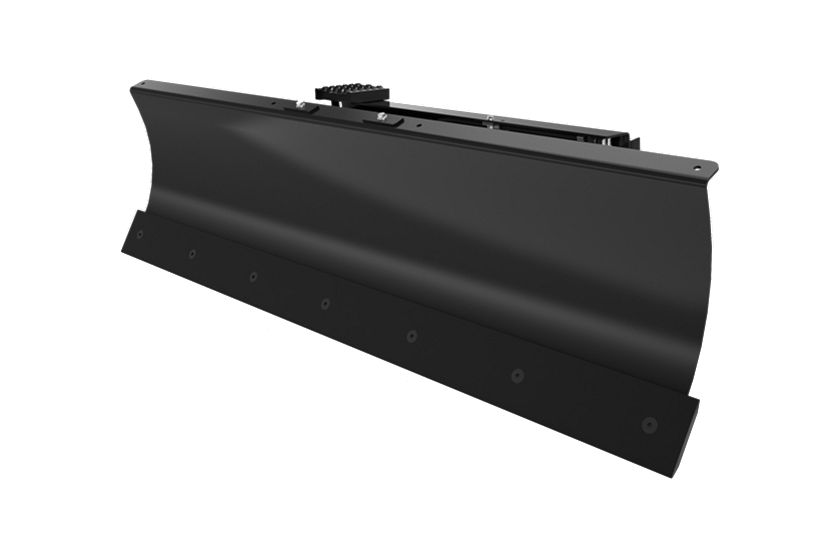

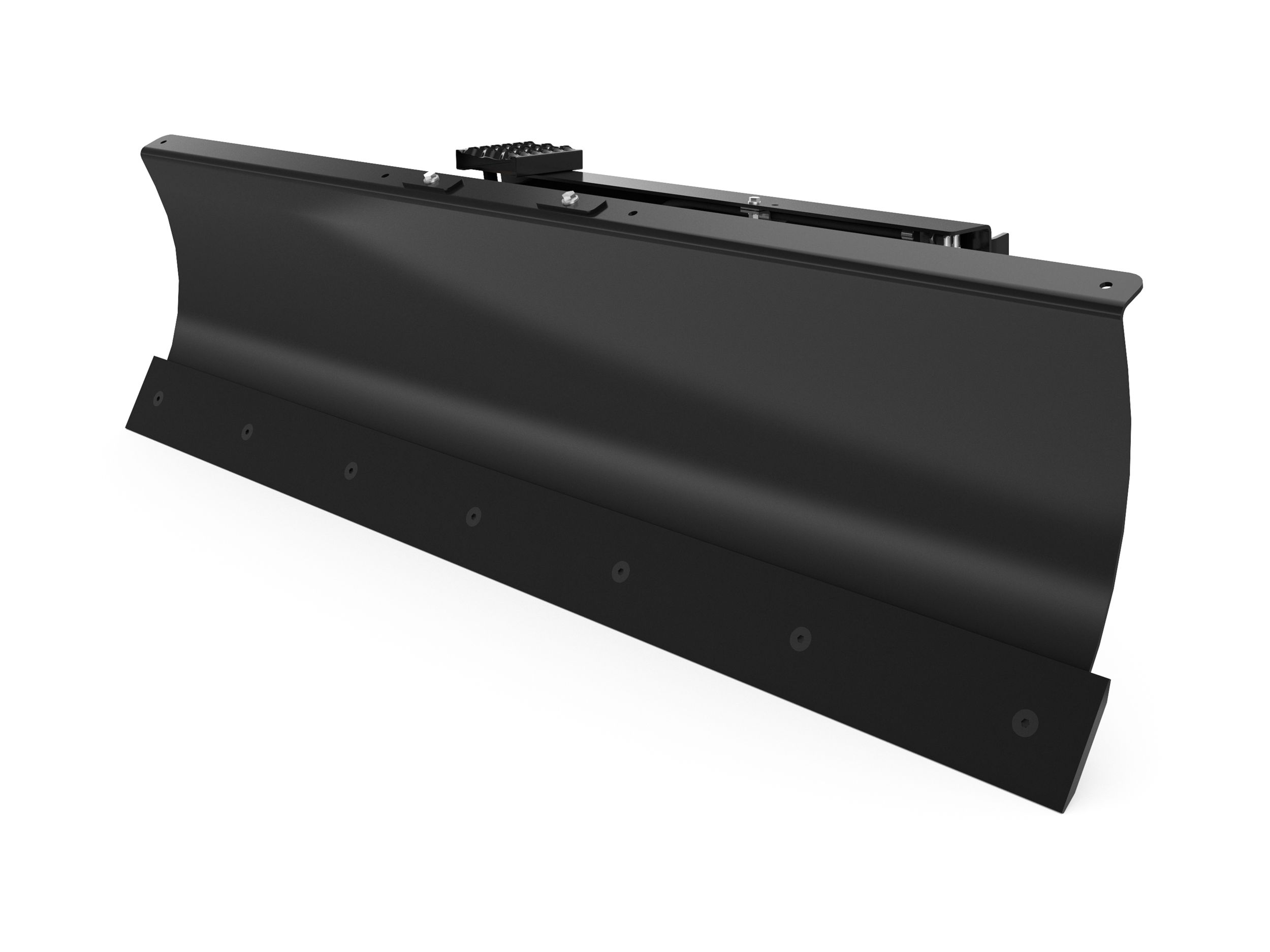

Studio Shot
Studio Shot

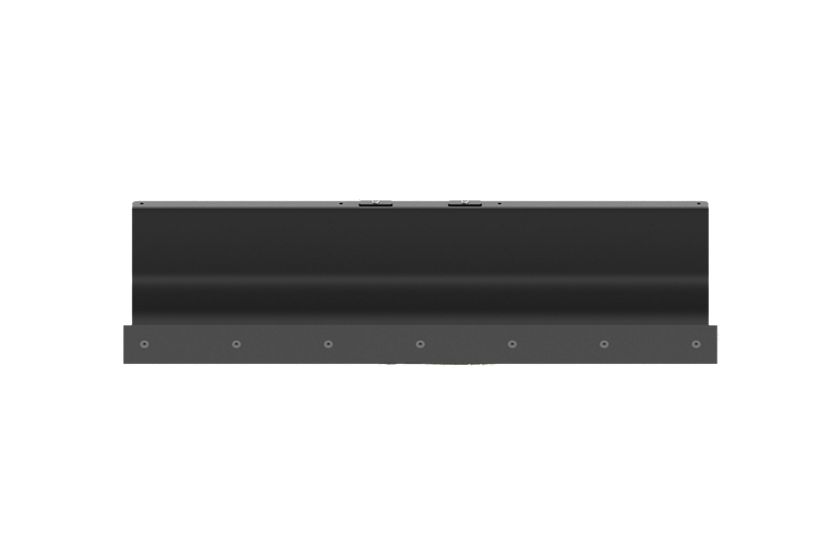

Front View
Front View

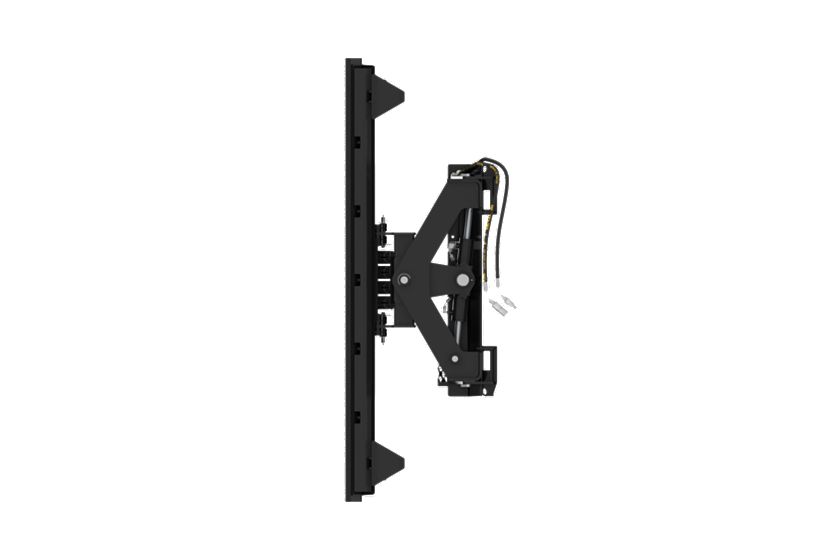

Top View
Top View

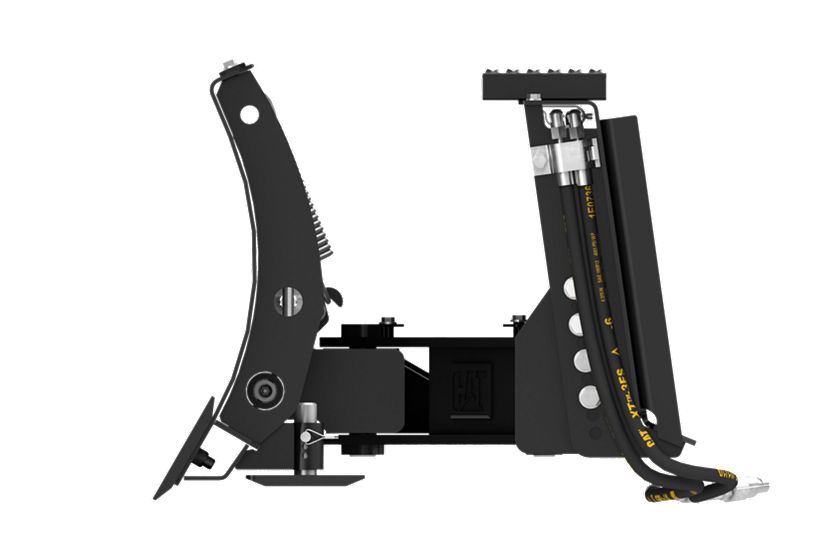

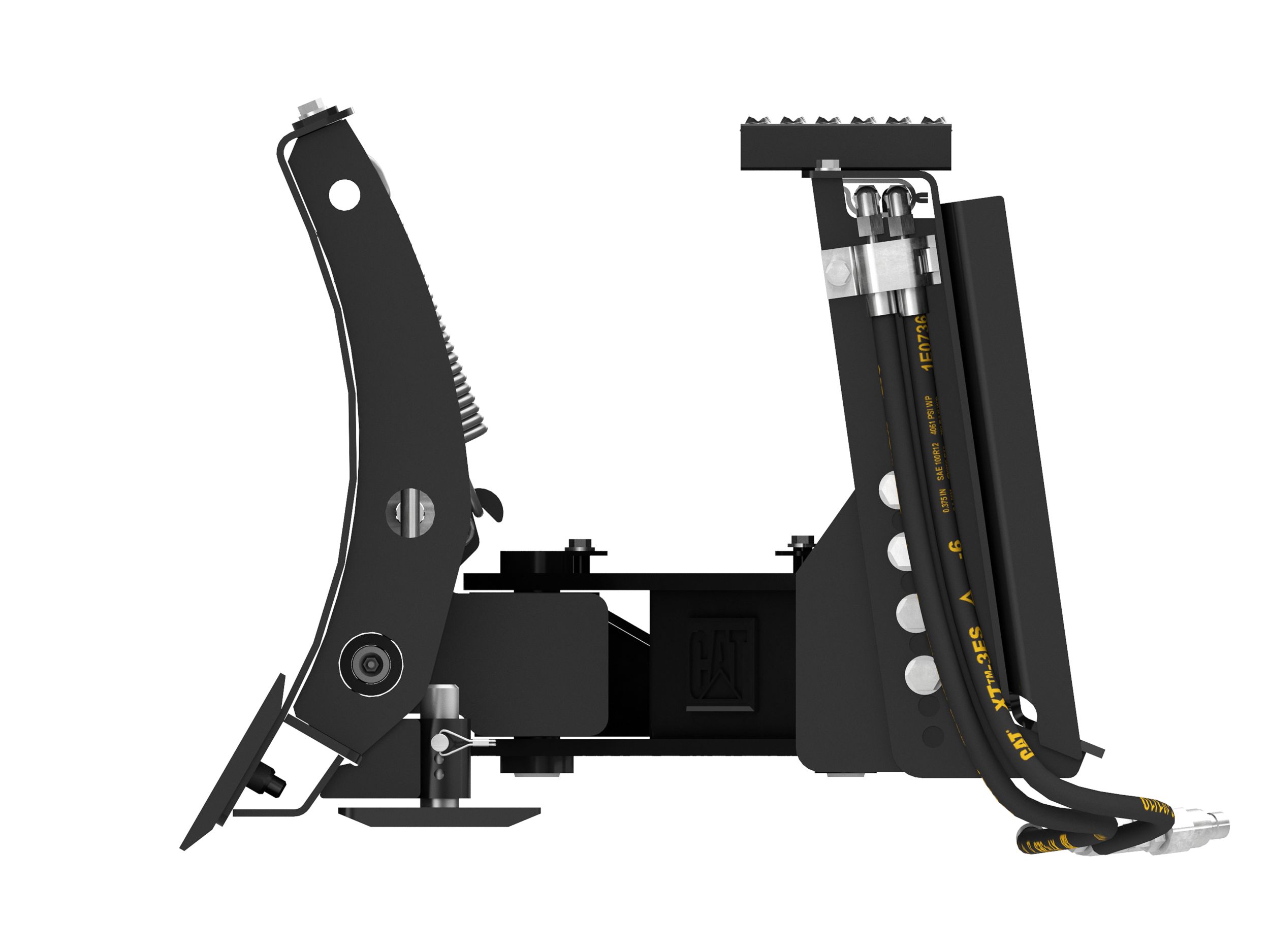

Left View
Left View

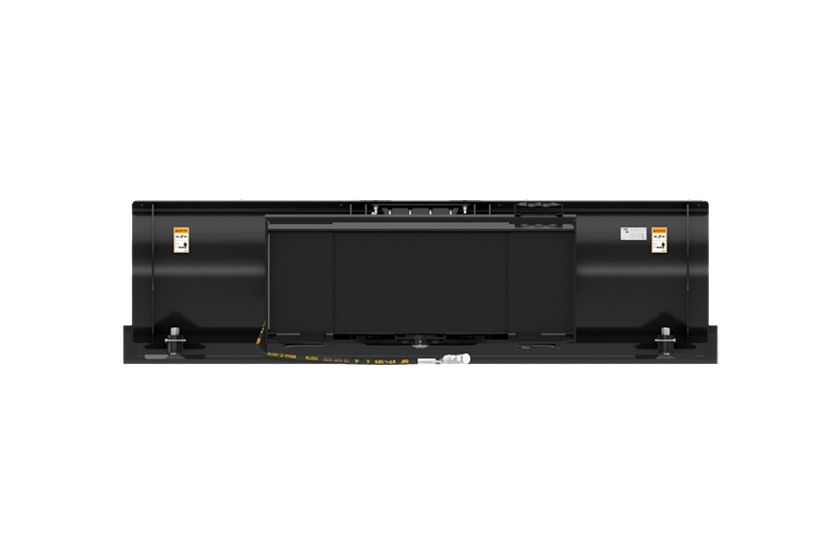

Rear View
Rear View

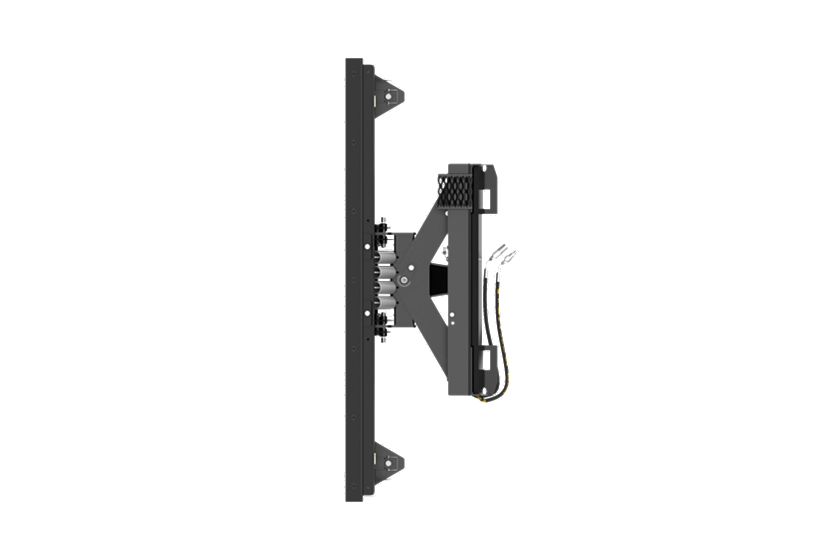

Bottom View
Bottom View

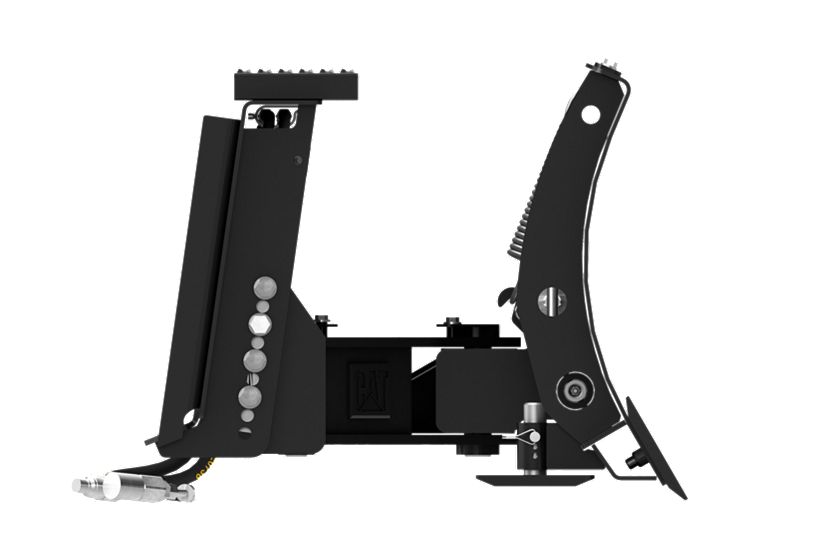

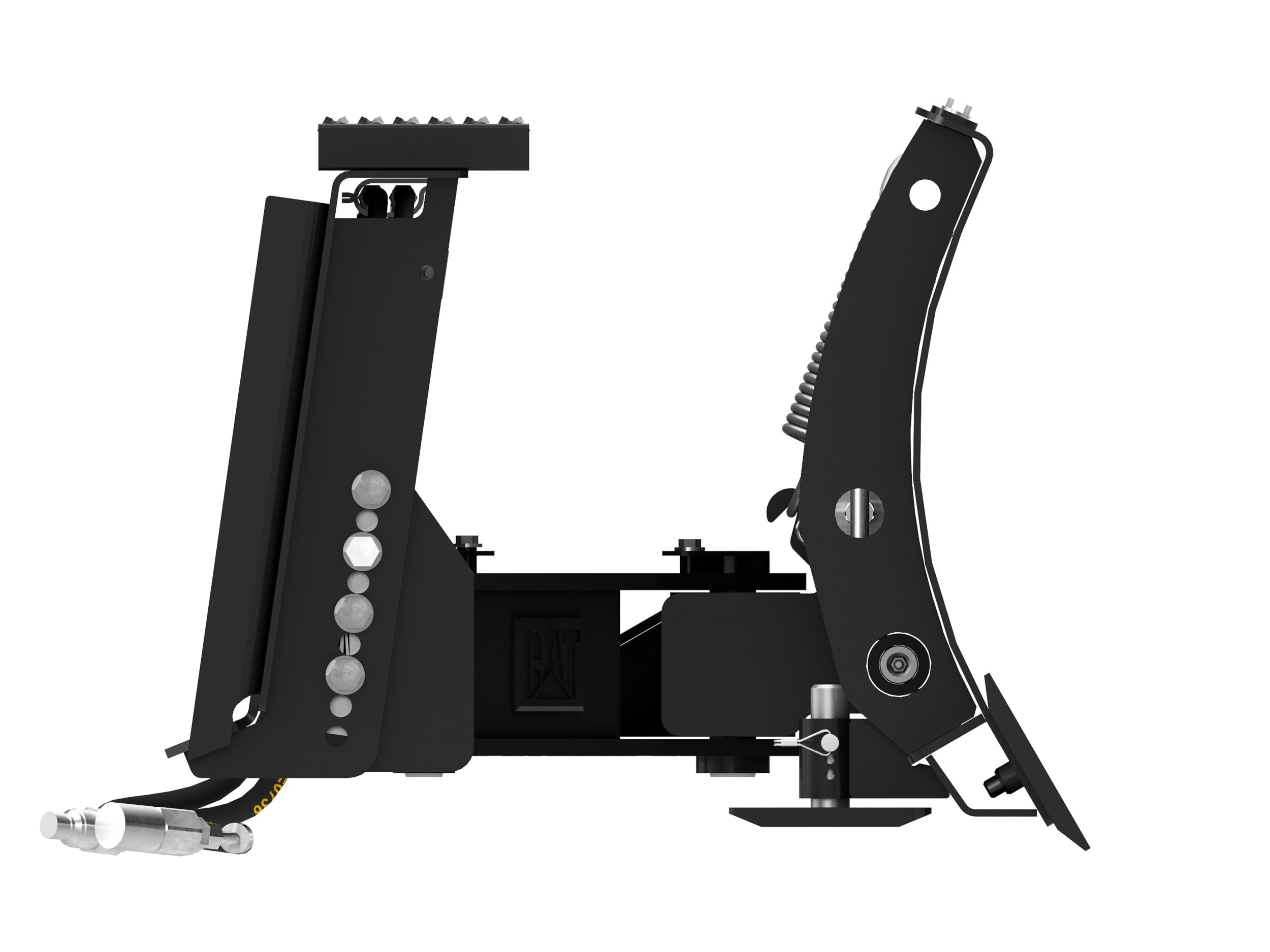

Right View
Right View
Cat® Blade at Work
Cat® Blade at Work

Videos

Cat® Blades at Work
Cat® Angle Blade Operating Tips
Cat® Angle Blade and Dozer Blade Overview
An Attachment for Every Job – Cat® Work Tool Attachments

360° View

Exterior

Model shown represents features on all Cat® Angle Blades except where indicated.

Documents

Features

Application

Two-Way Blade

Angle Range

Curved Moldboard

Adjustable Skid Shoes

Spherical Rod Eye Cylinder

Four Pre-loaded Springs

Adjustable Interface

Optional Snow Kit

Optional Non-Metallic Blade

Details

Specifications

Spec Value
Blade Width 84 in 2134 mm
Width – Fully Angled 76.7 in 1949 mm
Maximum Blade Angle – Right/Left of Center 30 degrees 30 degrees
Blade Height 24.2 in 614 mm
Cutting Edge Width 86.5 in 2198 mm
Length 29.6 in 753 mm
Weight 729.7 lb 331 kg
Cutting Edge Thickness 0.6 in 16 mm
Optimal Hydraulic Flow 42-86 L/min (11-23 gpm) 42-86 L/min (11-23 gpm)
Optimal Hydraulic Pressure 145-235 bar (2100-3400 psi) 145-235 bar (2100-3400 psi)
Required Hydraulics Standard Flow Standard Flow
Interface Type Skid Steer Coupler Skid Steer Coupler
