Cat

BP118C Pickup Broom

Cat® Pickup Brooms collect dirt and debris from a variety of surfaces.

Media

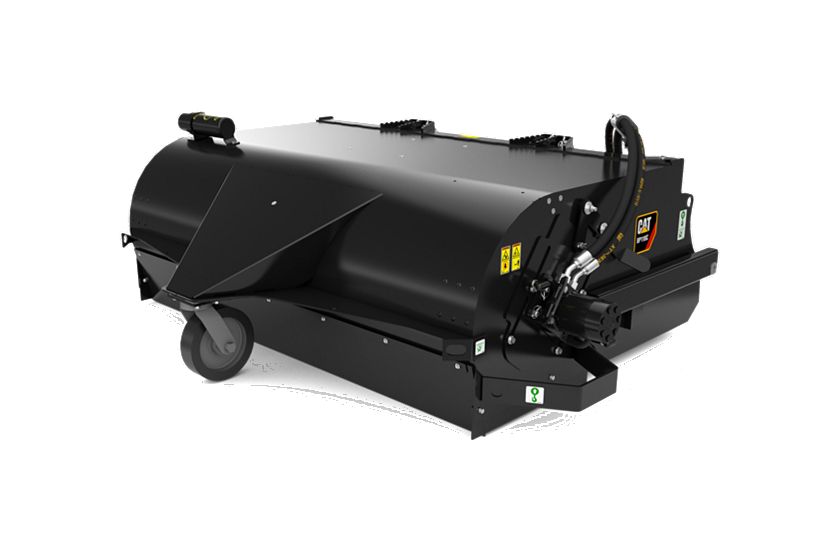

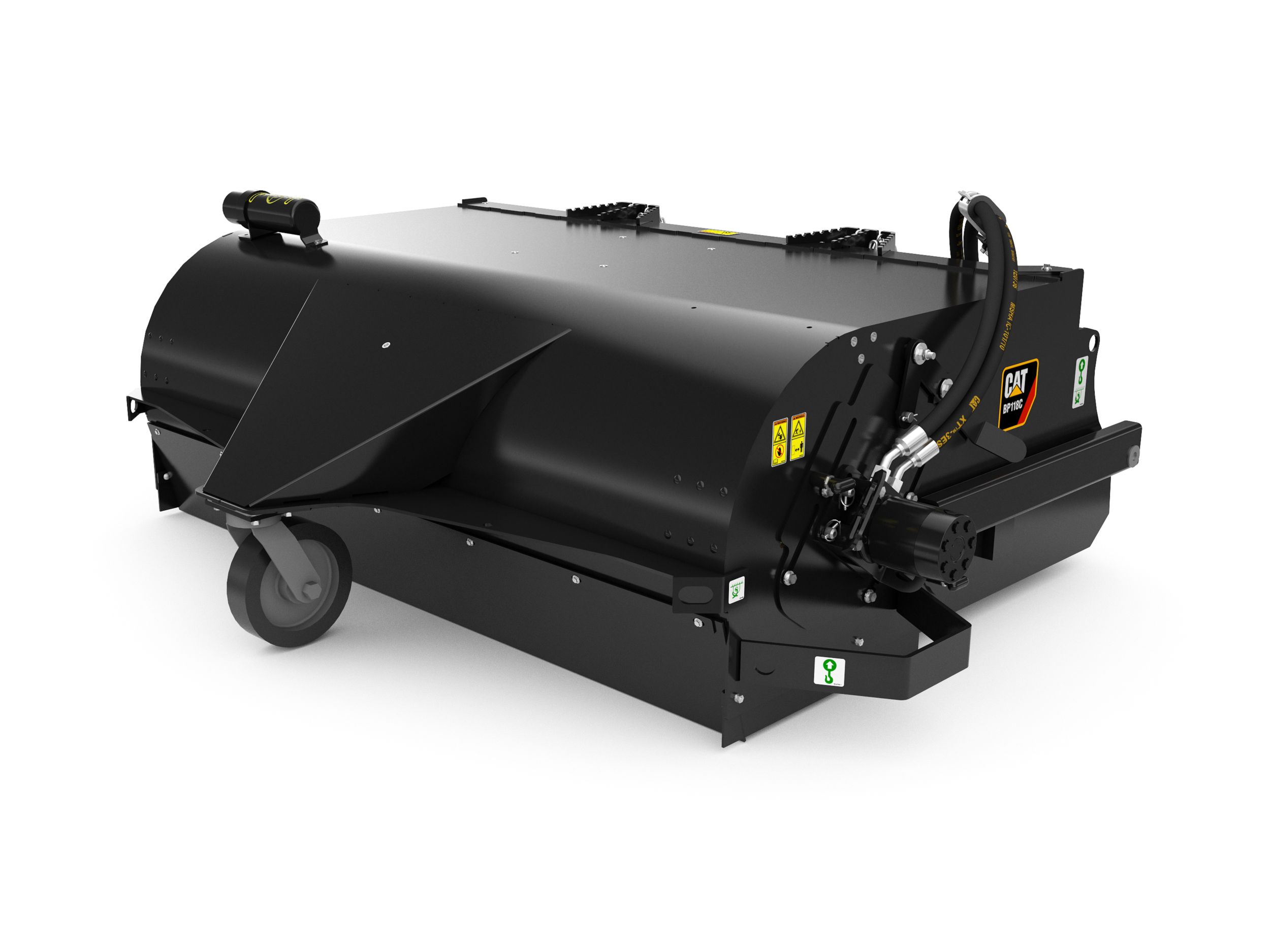

Studio Shot

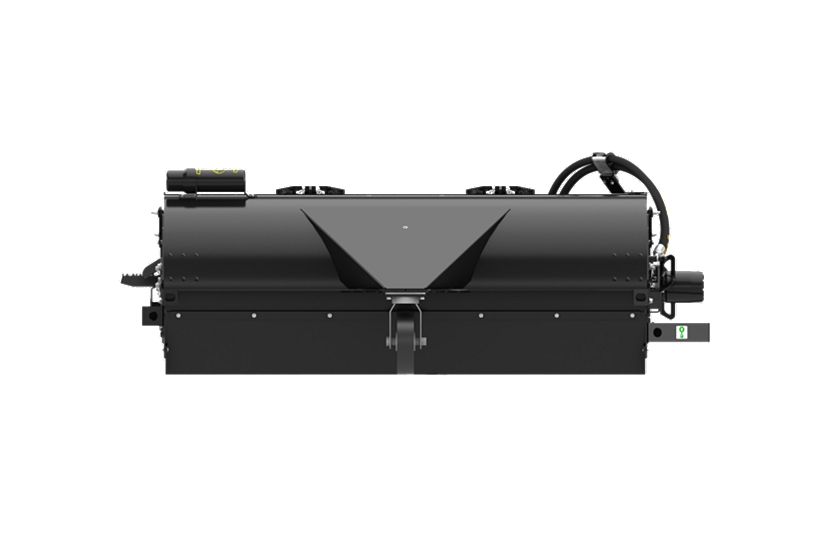

Front View

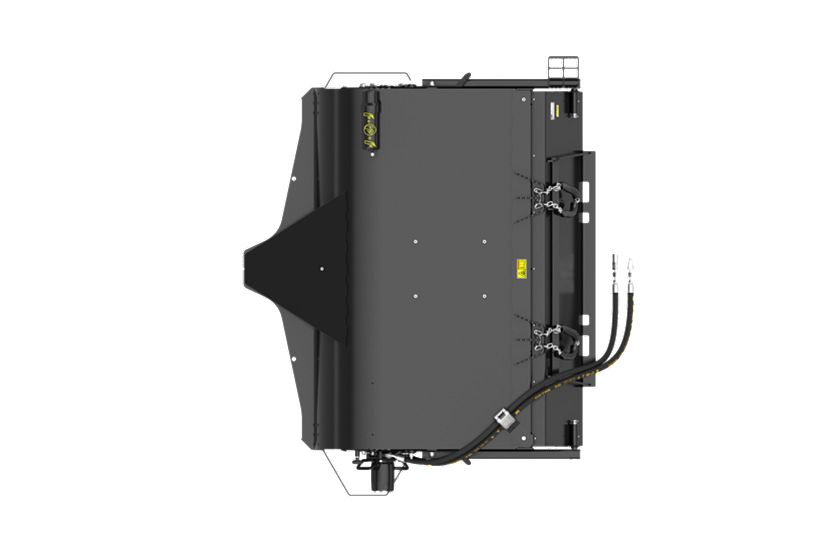

Top View

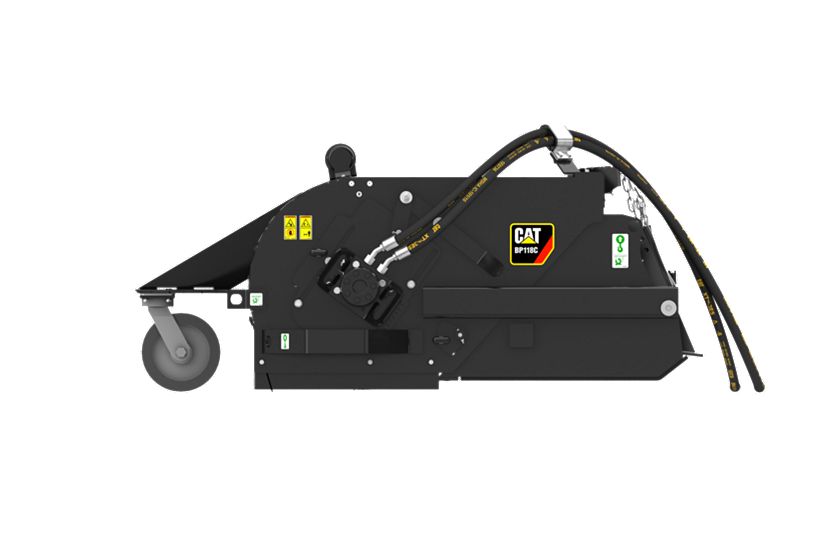

Left View

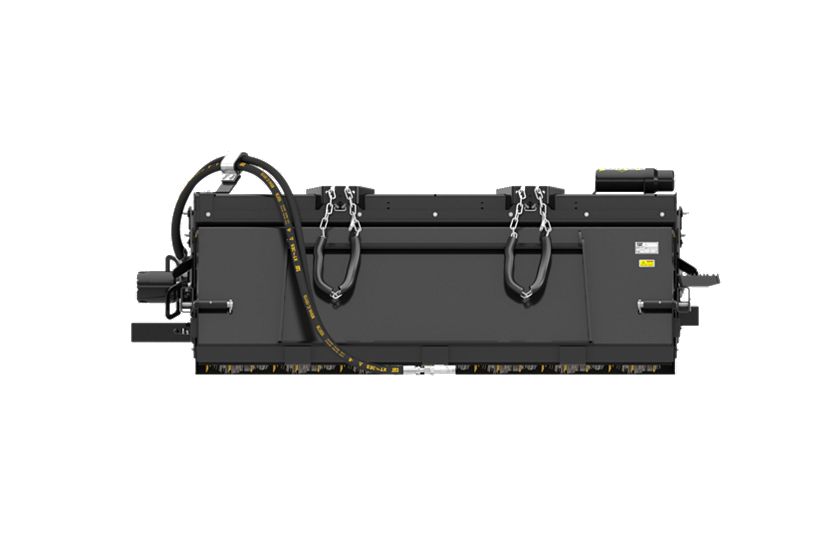

Rear View

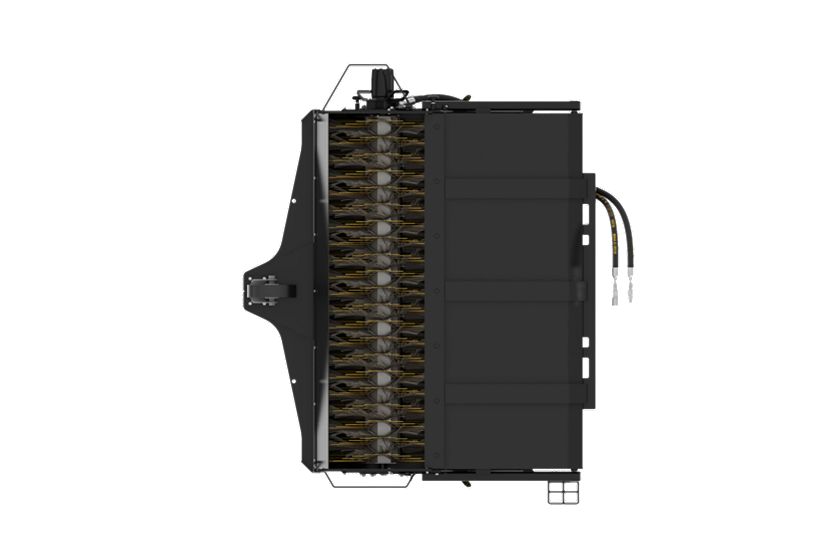

Bottom View

Right View

Cat® Pickup Broom at Work

Cat® Angle Broom and Utility Broom for Compact Equipment at Work

Cat® Brooms at Work

Cat® Pickup Broom and Utility Broom Overview

An Attachment for Every Job – Cat® Work Tool Attachments

Exterior

Model shown represents features on all Cat® Pickup Brooms except where indicated.

Documents

Cat® Brooms Product Brochure

Get more info

First Name*
Last Name*
Company
Address 1*
Address 2
City*
County*
State*
Zip code*
Phone*
Email*
Hidden
Quote Information
Message or additional info
CAPTCHA
How did you hear about us?*
*If you chose Referral or Other, please explain below.
Comments
This field is for validation purposes and should be left unchanged.

Features

Application

Large Hopper Capacity

Adjustable Volumizer

Guide Wheel

Optional Gutter Brush

Optional Dust Control

Broom Material Options

Interior Deflectors

Dual Chain and Loader Arm Bracket System

Bristle Height Adjustment

Motor Serviceability

Replaceable Bolt-On Cutting Edges

Tool Mounted Operation and Maintenance Manual (OMM) Holder

Specifications

US Metric

General

Spec	Value
Overall Width	90.4 in 2295 mm
Sweeping Width	72 in 1829 mm
Brush Diameter	26 in 660 mm
Required Hydraulics	Standard Flow Standard Flow
Height	34.3 in 872 mm
Length	72.3 in 1837 mm
Weight	1256.6 lb 570 kg
Required Hydraulic Flow	42-86 L/min (11-23 gpm) 42-86 L/min (11-23 gpm)
Optimal Hydraulic Pressure	145-235 bar (2100-3400 psi) 145-235 bar (2100-3400 psi)
Motor Displacement	24.7 in³/rev 405 cm³/rev
Brush Speed at Maximum Flow	199 rpm 199 rpm
Hopper Capacity	0.6 yd³ 0.49 m³
Gutter Brush Weight	90.4 lb 41 kg
Drive Method	Direct Drive Direct Drive
