325 Heavy-Duty Undercarriage Configuration –  Heavy-Duty Stability. Built for Demanding Terrain.*


• When the jobsite demands more muscle, the latest heavy-duty (HD) Cat 325 Excavator delivers. Built with an oversized long undercarriage and a robust 203 mm (8 in) track pitch, it’s engineered for outstanding stability and durability in harsh, uneven ground conditions.

• A 7,500 kg (16,350 lb) counterweight enhances balance and control, even when equipped with optional attachments such as a blade, Variable Angle boom, heavy-duty stick, bucket thumbs, or quick coupler. Advanced travel motors improve grade-climbing power, while upgraded swing motors and bearings ensure strong, smooth swing performance—even on slopes.

• Operators still get all the benefits they expect from a Cat 325: factory-integrated technology to boost productivity, extended maintenance intervals help keep owning and operating costs low, and electro-hydraulic efficiency ensures smooth, precise operation —all backed by Caterpillar’s proven electro-hydraulic system.

Machine Setup Simplification


• At the touch of fingertips and navigating user-friendly icons, the latest operator-oriented User Interface (UI) maximizes uptime and gets crews to work without delay. From re-ordering work tool lists to creating new work tool combinations as needed, operators can quickly set up machines and easily access information.

• The interface allows operators to maintain accuracy and makes the most of every second of their shift. Adding the ability to input couplers and attachments into the system makes setting up work tool combinations highly efficient by significantly reducing calibration time. It also eliminates the need to measure up again when changing Cat® work tool attachments and makes it manageable for a single person to check and adjust for bucket wear.

Cat® Grade 3D Ready


• The Cat Grade 3D Ready option includes all the hardware required for the Grade with 3D system, installed and tested from the factory. This option provides an easier upgrade path for customers who want to add Grade with 3D after their initial purchase. To activate, contact your Cat Dealer to purchase the required 3D software licenses. Licenses can be installed remotely or manually loaded onto the machine.

Cat Payload and Advanced Payload**


• Cat Payload provides operators with on-the-go weighing to help them hit load targets and avoid overloading, underloading, or misloading materials. Advanced Payload is a system upgrade that offers expanded features and capabilities, including custom tags, daily totals, and electronic ticketing. Combine Payload with VisionLink™*** to analyze jobsites and individual assets for remote management of production targets and key metrics.

*Available in North America and Europe only.
**Payload technologies are not legal for trade.
***VisionLink subscription required.

Not all features are available in all regions. Please check with your local Cat dealer for specific offering availability in your area.
Build Number: 07H


• Smart mode helps reduce fuel consumption by automatically matching engine and hydraulic power to digging conditions.

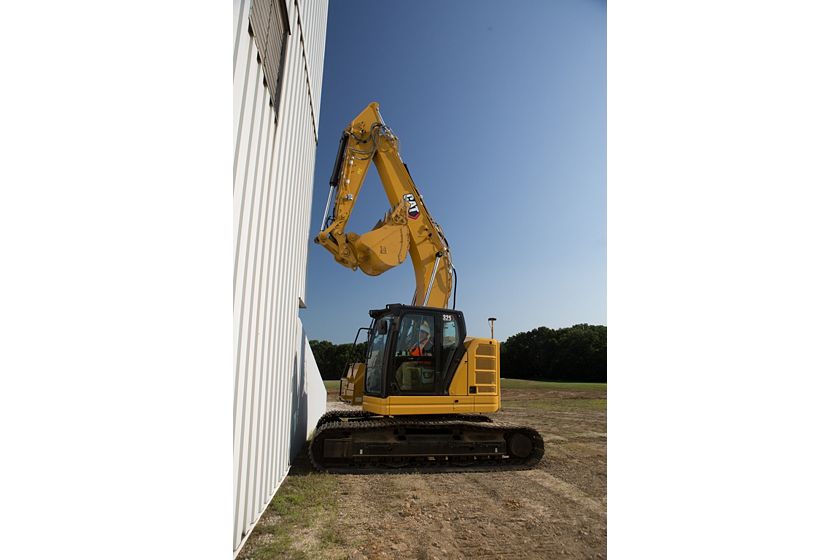

• Compact radius helps you work in tight spaces.

• High swing torque makes working on slopes easier.

• Increase operating efficiency with standard Cat® technologies that help lower operator fatigue and your operating costs, including fuel consumption and daily maintenance.

• C4.4 engine that meets emission standards. An aftertreatment system that requires no maintenance or downtime.

• The advanced hydraulic system provides the optimum balance of power and efficiency while giving you the control you need for precise digging requirements.

• Match the excavator to the job with power modes; let Smart mode automatically match engine and hydraulic power to digging conditions.

• Advansys™ bucket tips increase penetration and improve cycle times. Tip changes can be done quickly with a simple lug wrench instead of a hammer or special tool, improving safety and uptime.

• Auxiliary hydraulic options give you the versatility to use a wide range of Cat attachments.

• Available SmartBoom™ lets the boom freely travel up and down without using any pump flow so operators can focus on stick and bucket work. The benefits are reduced operator stress and reduced fuel consumption(not available in all regions – consult your local dealer on availability).

• Don’t let the temperature stop you from working. The excavator has a standard high-ambient temperature capability of 50° C (122° F) with de-rate and cold start capability of –18° C (0° F). An optional –32° C (–25° F) cold start package is available.


•  The latest operator oriented User Interface (UI) has been designed to maximize uptime by allowing operators to easily reorder work tool lists and quickly create new work tool combinations. It also eliminates the need to measure up again when changing Cat® work tool attachments and makes it manageable for a single person to check and adjust for bucket wear.

• Cat® Lift Assist helps avoid machine tipping. With visual and auditory alerts, operators will know if their load is within the excavator’s safe working range limits.

• Cat® Grade with Assist helps operators stay on grade simply and effortlessly with semi-autonomous digging. It automates boom, stick, and bucket movements to deliver more accurate cuts with less effort.

• Cat® Grade with 2D for excavators is an indicate system that helps operators reach grade faster.*  Select your target depth and slope and watch the Grade with 2D system use on-board processors and sensors to provide real-time guidance on the distance to grade.

• Cat® Grade with 3D for excavators helps operators grade more quickly, accurately, and efficiently, improving productivity. *It incorporates GNSS technology and RTK positioning guidance to streamline the grading process for complex designs commonly encountered on large infrastructure and commercial projects. This system allows operators to work confidently, eliminating guesswork while cutting and filling to precise specifications.

• The Cat® Grade 3D Ready option includes all the hardware required for the Grade with 3D system, installed and tested from the factory. Activation requires the purchase of additional 3D software licenses, contact your Cat Dealer for details.

• Upgrade to our dual antenna GNSS for maximum grading efficiency. The system lets you create and edit designs on the touchscreen monitor while you’re on the job, or you can have the plan design sent to the excavator to make your work easier. Plus, you get added benefits of avoidance zones, cut and fill mapping, lane guidance, and augmented reality along with advanced positioning capability.

• All Cat Grade systems are compatible with radios and base stations from Trimble, Topcon, and Leica. Already invested in a grade infrastructure? You can install grade systems from Trimble, Topcon, and Leica onto the machine.

• Cat® Payload provides operators with on-the-go weighing to help them hit load targets and avoid overloading, underloading, or misloading materials. Advanced Payload is a system upgrade that offers expanded features and capabilities, including custom tags, daily totals, and electronic ticketing. Combine Payload with VisionLink™**  to analyze jobsites and individual assets for remote management of production targets and key metrics.

• Cat® Operator Coaching allows operators of all experience levels to take their efficiency and productivity to the next level. With tips and data at their fingertips, operators can track and improve their productivity through everyday work on the job site. Gain data-based insights towards operators and operations when you pair Operator Coaching with VisionLink™** There are two coaching tip categories –

  1. Operational Efficiency Tips: Help operators stay at the top of their game by identifying areas to increase skill and efficiency, such as digging technique and idle times.

  2. Machine Health Tips: Some actions are inefficient and cause unnecessary wear and tear on the machine and its components. Following Machine Health Tips can help extend the life of the machine, improve digging technique, and reduce fuel waste.





* Compared with traditional grading methods.
**VisionLink™ subscription required.

NOTE: Cat® Payload for excavators is not legal for trade. Availability may vary by region, consult your Cat Dealer for more details.


• VisionLink™ provides actionable data insights for all assets – regardless of fleet size or equipment manufacturer.* Review equipment data from your desktop or mobile device to maximize uptime and optimize assets. Equipment management features provide up-to-date asset tracking of your entire fleet. You can track asset location, operating hours, fuel level, health issues, and overall utilization. Monitor equipment health with fault codes, fluid analysis, and inspection due dates. It’s all about making informed, data-based decisions to help reduce operating costs. Productivity management features enable you to analyze overall job site performance. You’ll be able to track tonnage moved, production targets, and payload, as well as Grade 3D and compaction data. These vital metrics help you to reduce costs and improve jobsite operational efficiency.

• Cat® Inspect is a mobile application that allows you to easily perform digital preventative maintenance (PM) checks, inspections, and daily walkarounds. Inspections can easily be integrated with other Cat data systems like VisionLink so you can keep a close eye on your fleet.

• Remote Troubleshoot is a mobile application that allows your Cat dealer to perform diagnostic testing on your connected machine remotely to help ensure that issues are resolved quickly and with less downtime.

• Remote Flash is a mobile application that allows you to update onboard software without a technician being present, allowing you to initiate software updates when convenient, increasing your overall operating efficiency.

• The Cat PL161 attachment locator allows you to track attachments across all worksites, reduce the number of lost attachments, and plan for attachment maintenance and replacement. The work tool recognition feature automatically adjusts machine settings based on the selected tool.

* Data field availability can vary by equipment manufacturer.

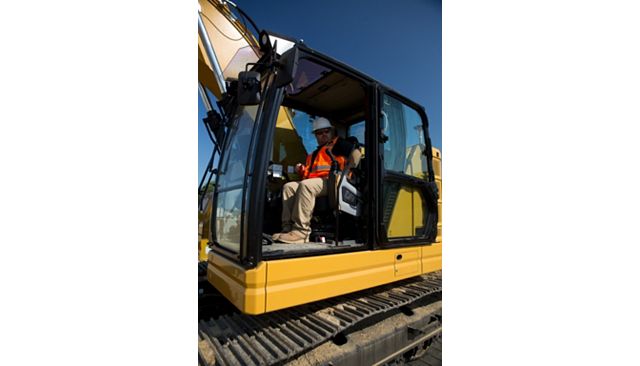

• Choose between Comfort, Deluxe and Premium cabs – all with automatic climate control (consult your local dealer on availability in your region).

• The Comfort cab is equipped with a mechanical suspension seat. The Deluxe seat is heated and air adjustable. The Premium seat is heated and cooled and adjusts automatically.

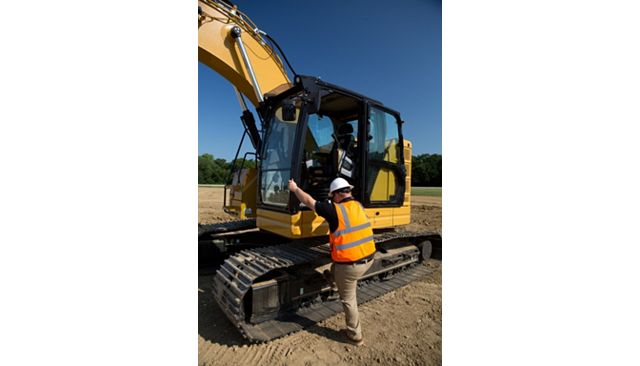

• Get in and out of the cab easier using the tip-up left console available in the deluxe and premium cabs.

• Improved viscous mounts help reduce cab vibration, increasing operator comfort and efficiency.

• Control the excavator comfortably with easy-to-reach controls all located in front of you.

• Stow your gear with plenty of in-cab storage beneath and behind the seat and in the consoles. A cup holder, document holder, bottle holder, and coat hook are also provided.

• Use the standard radio’s USB ports and Bluetooth® technology to connect personal devices and make hands-free calls.


• Start the engine with a push button; use a Bluetooth® key fob*, or the unique Operator ID function.

• Program your power mode and joystick preferences using Operator ID; the excavator will remember what you set each time you go to work.

• Navigate quickly on the standard high-resolution 203 mm (8 in) touchscreen monitor, or with the optional 254 mm (10 in) touchscreen monitor (available on the Deluxe and Premium cabs only), or with the aid of the jog dial control.

• Not sure how a function works or how to maintain the excavator? Always have the operator’s manual at your fingertips in the touchscreen monitor.

• Make operating easier with the touch of a joystick button. Additional auxiliary relays allow you to power on or turn off a CB radio, beacon light, and even a dust suppression watering system without taking your hands off the joysticks.

• Tiltrotator attachments-ours or other brands-work seamlessly with Cat 2D Grade, Assist, Payload, and E-Fence . With no additional hardware required, all you have to do is simply select “Third Party Tiltrotator System Installation” in the monitor, do the calibration, and get to work.

• Find the tool you need – even if it’s hidden beneath overgrowth or debris. The excavator’s onboard Bluetooth reader can locate any work tool equipped with Cat asset tracking devices up to a range of 60 m (200 ft).*

• Auto Dig Boost increases power by up to 8% for better bucket penetration, shorter cycle times, and greater payloads.**

• Make moving the excavator much easier with Cat Stick Steer. Simply push a button and use one hand to travel and turn instead of both hands or feet on levers or pedals.

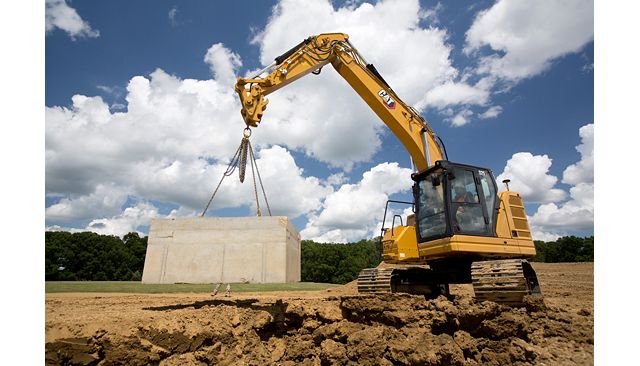

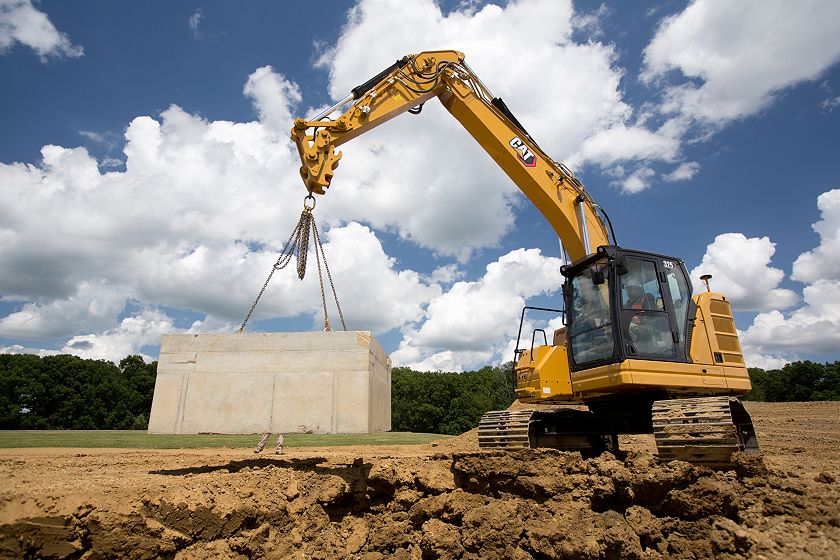

• Need more lift during your shift? Turn on Auto Heavy Lift and get up to 8% more power exactly when you need it for as long as you need it.**

*Not available with the Comfort cab.
**Auto Dig Boost and Auto Heavy Lift calculations are based on 300 bar (boost pressure) divided by 350 bar (standard pressure).


• Expect lower maintenance cost with extended and more synchronized maintenance intervals. All maintenance checkpoints are accessible at ground level, resulting in safe, faster, easier daily maintenance checks.

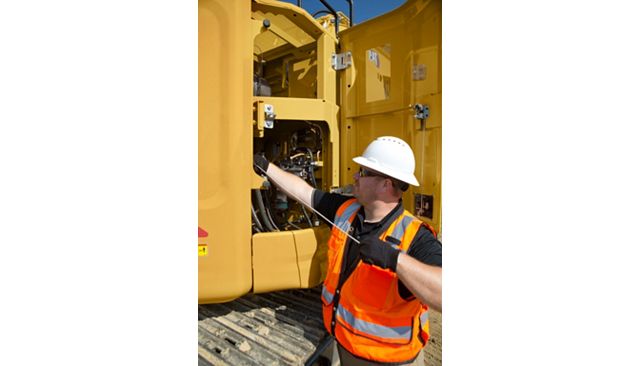

• Check engine oil level quickly and safely with the ground-level engine oil dipstick; fill and check engine oil on top of the machine with a conveniently located second dipstick.

• Track your excavator’s filter life and maintenance intervals via the in-cab monitor.

• No required maintenance on the Cat® Clean Emissions Module.

• Using Cat genuine oil and filters and doing typical S·O·S^SM monitoring will extend the current service interval to 1,000 hours, giving you greater uptime to do more work.

• S·O·S ports are on ground level, simplifying maintenance and allowing for quick, easy extraction of fluid samples for analysis.

• Expect the latest air intake filter with pre-cleaner to last up to 1,000 hours.

• The latest hydraulic oil filter offers high-quality filtration performance, features anti-drain valves to keep the oil clean when the filter is replaced, and provides an extended 3,000-hour replacement interval for efficiency and convenience.

• High-efficiency cooling fans run only when needed; you can program intervals so they automatically reverse to keep cores clean without interrupting your work.

• Boost productivity with proactive service reminders. The integrated vehicle health management system alerts the operator with step-by-step service guidance along with parts needed so you don’t experience any unnecessary downtime.


• Optional Cat® Detect – People Detection helps protect the most valuable asset on any jobsite – people. The system uses smart cameras with depth sensors to provide the operator with visual and auditory alerts so he or she can take immediate action when a person is too close to the excavator.*

• Optional Cat Command remote control enables equipment operators to work safely outside the machine when working in hazardous environments. Command offers the choice of handheld Consoles (line-of-sight) or long-distance virtual Stations** (non-line-of-sight). Deep integration with machine systems enables efficiency and productivity by maintaining the use of in-cab technology** features (Grade, Payload, Assist, etc.).

• Cat Lift Assist helps avoid machine tipping. With visual and auditory alerts, operators will know if their load is within the excavator’s safe working range limits.

• Cat® 2D E-Fence restricts the front linkage from moving beyond operator-defined preset boundaries for the ceiling, floor, wall, swing, and cab. It helps operators avoid jobsite hazards such as traffic, keeps personnel safe, and helps you save on costly repairs, equipment downtime, and potential jobsite fines.

• Access all service checkpoints from ground level – no need for you to climb on top of the excavator.

• The standard ROPS cab meets ISO 12117-2:2008 requirements.

• Enjoy great visibility into the trench, in each swing direction, and behind you with the help of smaller cab pillars, larger windows, and a flat engine hood design.

• The standard hydraulic lockout lever isolates all hydraulic and travel functions in the lowered position.

• Ground-level shut-off switch stops all fuel to the engine when activated and shuts down the machine.

• A rearview camera and a right-side-view camera are standard. Upgrade to 360° visibility and you’ll easily visualize objects and personnel around the excavator in a single view.

• The latest service platform design in the front of the machine provides easy, safe, and quick access to upper service platform; the service platform steps use anti-skid punch plate to prevent slipping.

• Optional boom and stick lowering check valves prevent reverse flow, keeping your front linkage securely in place should the hydraulic system unexpectedly lose power.

• Brightly colored seatbelts allow easy recognition of properly utilized safety restraints.

• Enhance jobsite safety. Add a swing alarm to alert people when you’re rotating from trench to stockpile and back again.

*The system may not detect personnel in certain circumstances, such as fast swing speeds, people lying down or crouching, or when cameras are impaired by low light conditions (dusk, dawn, overcast), inclement weather (snow, rain, fog), or other similar conditions. For limitations of use, refer to the operation and maintenance manual.
**Operator assist features for the Command Console are not available in the Europe, Australia, and New Zealand.

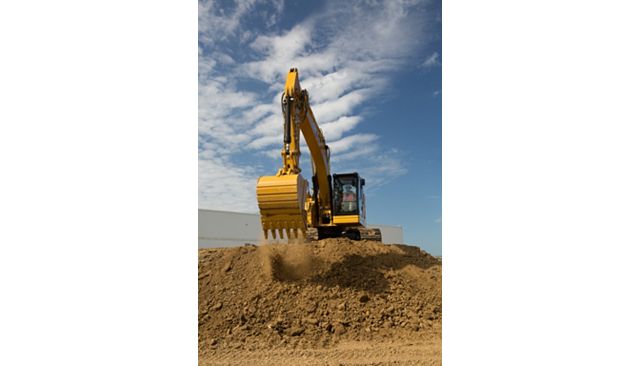

Tackle your jobs with a complete Cat® solution. Cat attachments are not just accessories – they are essential tools that define what your machine can do. When you pair a Cat excavator with Cat attachments, you unlock a fully integrated system built for performance, durability, and efficiency. Whether you are clearing land, breaking concrete, or compacting soil, the right attachment transforms your excavator into a powerful, multi-purpose tool ready for any challenge. Depending on your project or application, you could benefit from excavator attachments such as:Buckets: Handle everything from digging and grading to cleanup and debris removal with your excavator. Caterpillar® offers general duty, heavy duty, extreme duty, and severe duty buckets, as well as specialized designs for ditch cleaning, rock, and finishing work. Reinforced edges and wear-resistant materials ensure long-lasting performance in tough conditions.


• Couplers (HEX): Cat® couplers for excavators enable fast, secure attachment changes, without the need to leave the cab. From Pin Grabbers to hydraulic quick connect options, couplers help reduce downtime, boost jobsite efficiency and promote versatility by allowing multiple machines to share a common attachment inventory.

• Hammers: Break concrete, rock, and steel with up to 1,000 blows per minute. Built for high-production demolition, quarrying, and construction, they offer powerful impact energy and consistent performance. Their durability and low-maintenance design make them essential for demanding breaking applications.

• Multi-Processors: A versatile tool for demolition, equipped with interchangeable jaws to handle concrete, steel, and rebar. Multi-Processors combine cutting, crushing and pulverizing capabilities in one attachment. Their modular design maximizes efficiency across a range of job site demands.

• Demolition and Sorting Grapples: Tackle larger debris or precisely sort materials into piles. These grapples are engineered for accuracy in demolition and material sorting, handling concrete, rebar, wood, and mixed debris. High clamping force and agile movement make them ideal for primary and secondary demolition and recycling operations.

• Scrap and Demolition Shears: Rotating shears provide precision cutting for metal structures, pipes, rebar, and scrap, making them ideal for demolition and recycling. Their powerful jaws and fast cycle times ensure clean cuts and high productivity. Built for durability, they excel in heavy-duty steel processing.

• Pulverizers: Built to crush concrete and separate rebar during demolition and recycling. With high crushing force and fast cycle times, pulverizers efficiently reduce material for easier handling. Primary models feature 360° bidirectional rotation and tackle structure teardown, while secondary models have a fixed jaw design and process debris after demolition.

• Compactors (Vibratory Plate): Compact soil, sand, gravel and asphalt quickly and efficiently to create a stable foundation. Vibratory plate compactors deliver high-impact force and even coverage, reducing air pockets and improving surface integrity for trenching, roadwork, and patching.

• Rotary Cutters: Get accurate, precise work with less noise and vibration. Cat® Rotary Cutters deliver high torque and precision for a range of applications: demolition, grinding, profiling, trenching, tunneling, and quarrying. Specifically designed for excavator-mounted use to handle heavy-duty materials like concrete, rock, and dense brush with ease.

• Orange Peel Grapples: Built for scrap and bulk material handling, Orange Peel Grapples excel with irregular, heavy loads like metal, rock, and waste. Their hydraulic tines provide superior grip and penetration. High-capacity and continuous rotation are perfect for scrap yards and transfer stations. Caterpillar® offers these grapples with a choice of different shell designs and tine options suited to various applications.

• Thumbs: Add gripping capability to your buckets, enabling precise and secure handling of irregular materials like rocks, stumps, and debris. Perfect for loading, sorting, and placing tasks, they enhance versatility and control. Hydraulic or mechanical options allow for flexible operation across job types.

• Tiltrotators: Tiltrotators provide 360° rotation and 40° left/right tilt functionality, allowing attachments to move with unmatched precision and flexibility. This flexibility transforms your machine into a multi-functional tool capable of working from virtually any angle without repositioning. Ideal for grading, trenching, and complex excavation work, they deliver multi-angle control for tight and confined spaces.

Cat® attachments are engineered to maximize your excavator’s productivity, helping you get more work done with greater efficiency and confidence. Choosing the right attachment is not just about compatibility, it is about unlocking your machine’s full potential while avoiding equipment damage or safety risks. Connect with your Cat Dealer to find the optimal attachments for your specific machine and application needs.

Please note: Not all attachments are available in all regions. Contact your Cat Dealer for details.


• The Cat® C4.4 engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.

• The 325 emits lower CO2 emissions compared to the previous 325F.

• Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)*** or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations”(SEBU6250) for details.

• Cat Grade technologies combine advanced guidance with optional automated machine control helping you reach grading targets while reducing fuel burn and greenhouse gas emissions by improving efficiency, job site productivity, and accuracy.

• Auto Engine Speed Control reduces unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.

• Cat® Payload for excavators provides on-the-go material weighing which helps reduce fuel burn by improving loading efficiency, job site productivity, and eliminating trips to the scale.

• Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.

• VisionLink™ displays the CO2 emissions for monitored assets, calculated by fuel type for the Runtime Fuel Burned each day in a selected date range.

• Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.

*While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use.
**Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.
***Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).

325 Heavy Duty Undercarriage Configuration

Built for Tough Jobs with Excellent Stability & Durability
The latest Heavy-Duty long undercarriage offers outstanding stability, especially in rough or uneven terrain. Pair that with the optional HD stick, and you’re getting a machine built to handle demanding applications with minimal downtime, helping to reduce maintenance costs and extend the life of your investment.

Ready-to-Work Attachments Save Time & Money
The 325 comes Thumb-Ready and with a Quick Coupler Circuit pre-installed. That means fast attachment changes and no need for costly aftermarket modifications. You get flexibility right off the factory floor — whether you’re switching between buckets, thumbs, or other tools.

Power That Pays Off
With its high drawbar pull, the 325 effortlessly climbs steep grades, ensuring productivity at any site.* Thanks to its enhanced swing torque, you can move material quickly — even uphill — resulting in fast cycle times and increased work completed in less time.

Bottom Line: Low Owning and Operating Costs + More Uptime = A Smart Investment for Any Fleet
The latest 325 isn’t just another excavator — it’s a compact radius machine that packs heavy-duty performance, integrated technology, and unmatched versatility.

*7500 kg (16,540 lb) counterweight with a heavy-duty undercarriage versus the 325 with an 8300 kg (18,300 lb) counterweight and standard undercarriage. Unchanged uphill capabilities for other configurations.

Available in North America and Europe only.
