Blades
Cat® Blades efficiently doze, plow and move material. Specialized designs mean the perfect match for every job.
Equipment Type (9 items)
Models

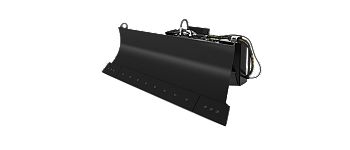

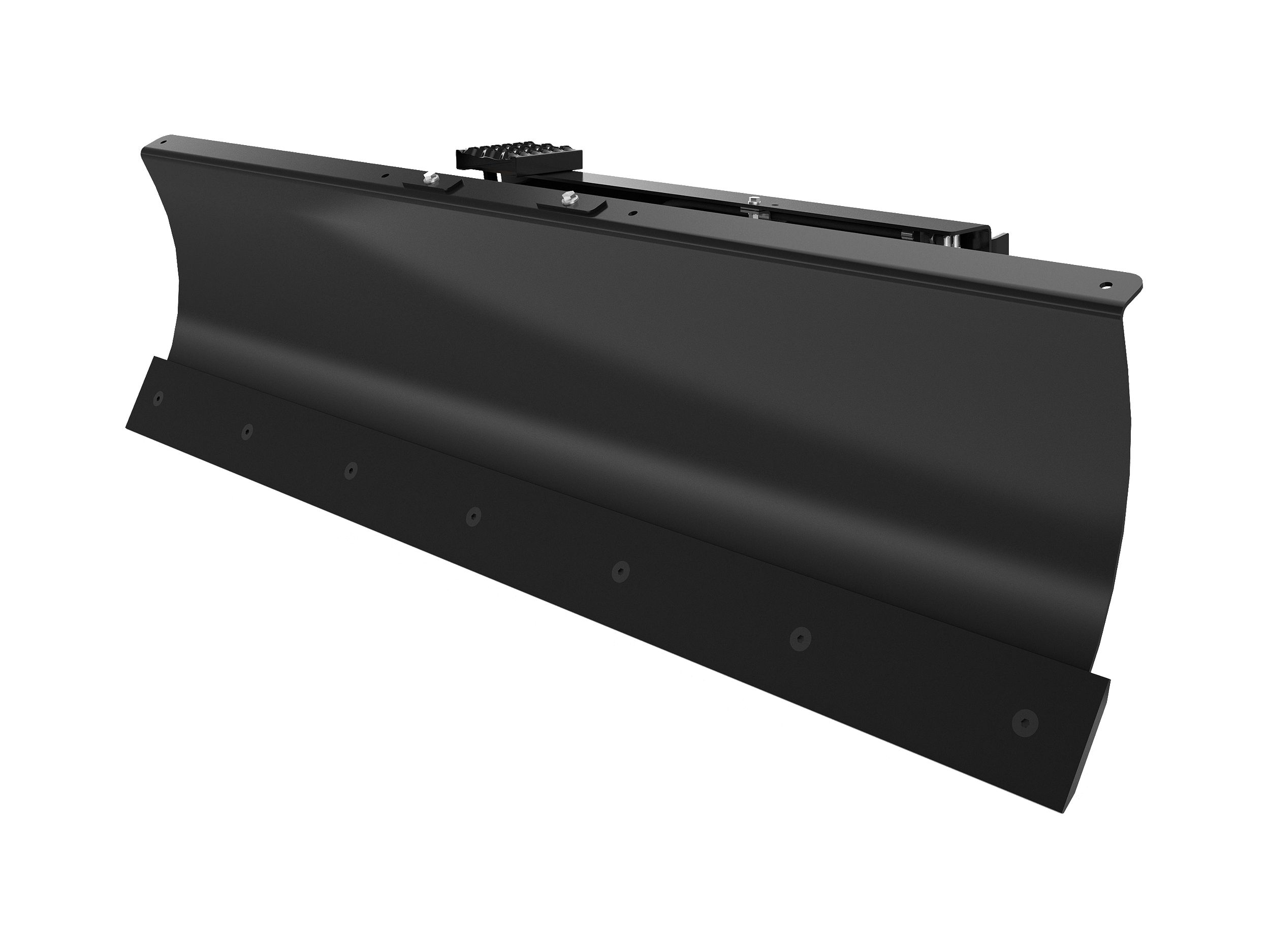

Angle Blades - Compact Products
Robust, high capacity design for moving dirt, gravel, livestock waste and snow.

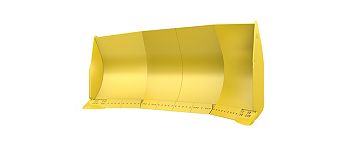

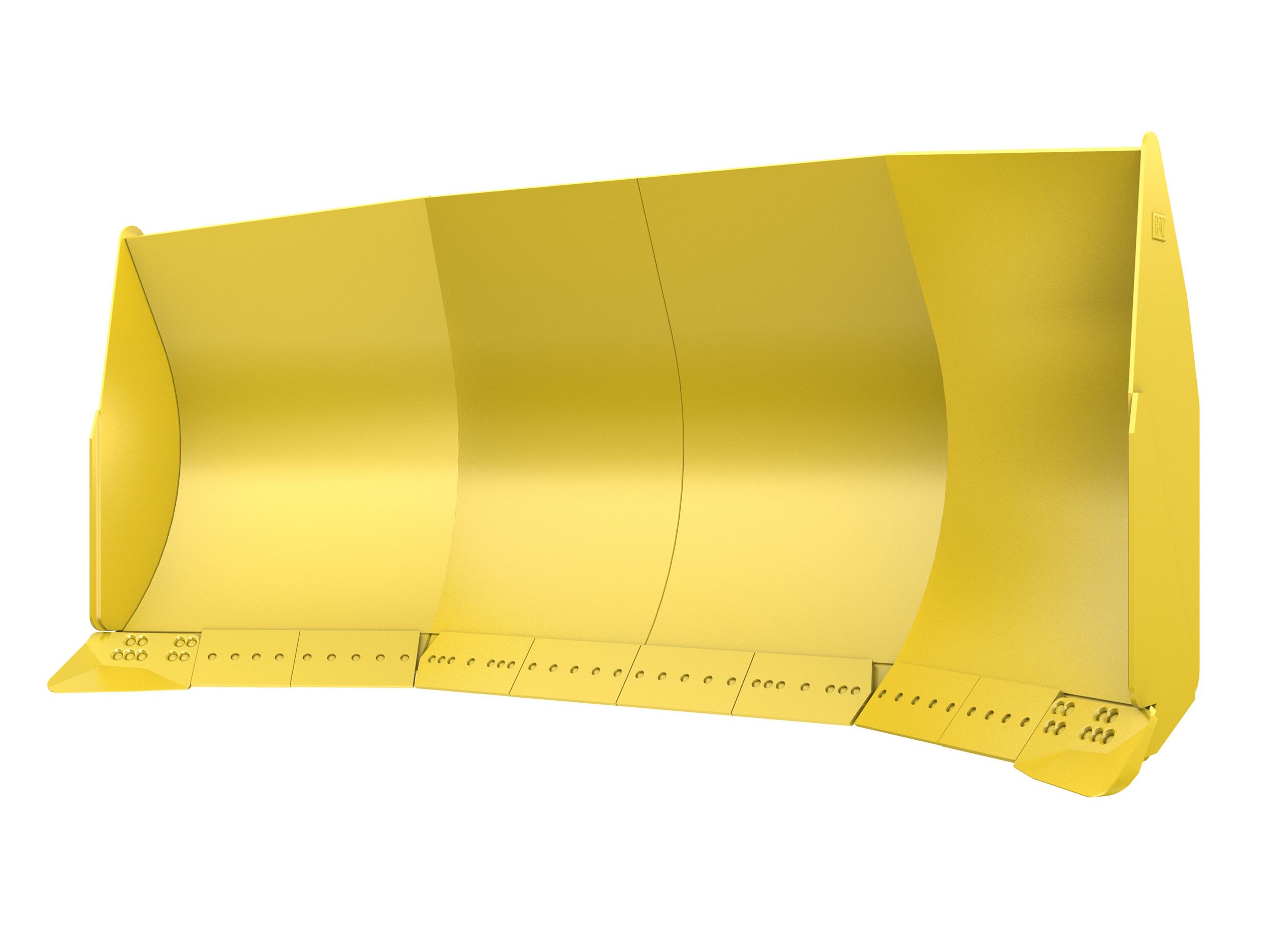

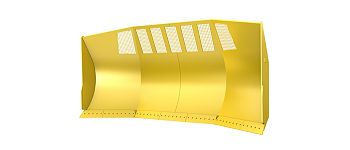

Coal U-Blades
Designed for the unique challenges of efficiently moving coal.
14.8 m³ (19.4 yd³)
-
Width
193 in
-
Wing Angle
30 °
-
Height
70 in
9.66 m³ (13 yd³)
-
Width
168 in
-
Wing Angle
30 °
-
Height
58 in
13.38 m³ (17.5 yd³)
-
Width
168 in
-
Wing Angle
30 °
-
Height
64 in
21.41 m³ (28.0 yd³)
-
Width
218 in
-
Wing Angle
30 °
-
Height
78 in
36.70 m³ (48.0 yd³)
-
Width
226 in
-
Wing Angle
30 °
-
Height
101 in
52.0 m³ (68.0 yd³)
-
Width
265 in
-
Wing Angle
30 °
-
Height
110 in
63.46 m³ (83.0 yd³)
-
Width
270 in
-
Wing Angle
30 °
-
Height
121 in
65.75 m³ (86.0 yd³)
-
Width
290 in
-
Wing Angle
30 °
-
Height
120 in
74.93 m³ (98.0 yd³)
-
Width
322 in
-
Wing Angle
30 °
-
Height
120 in

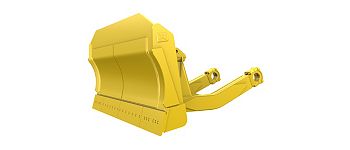

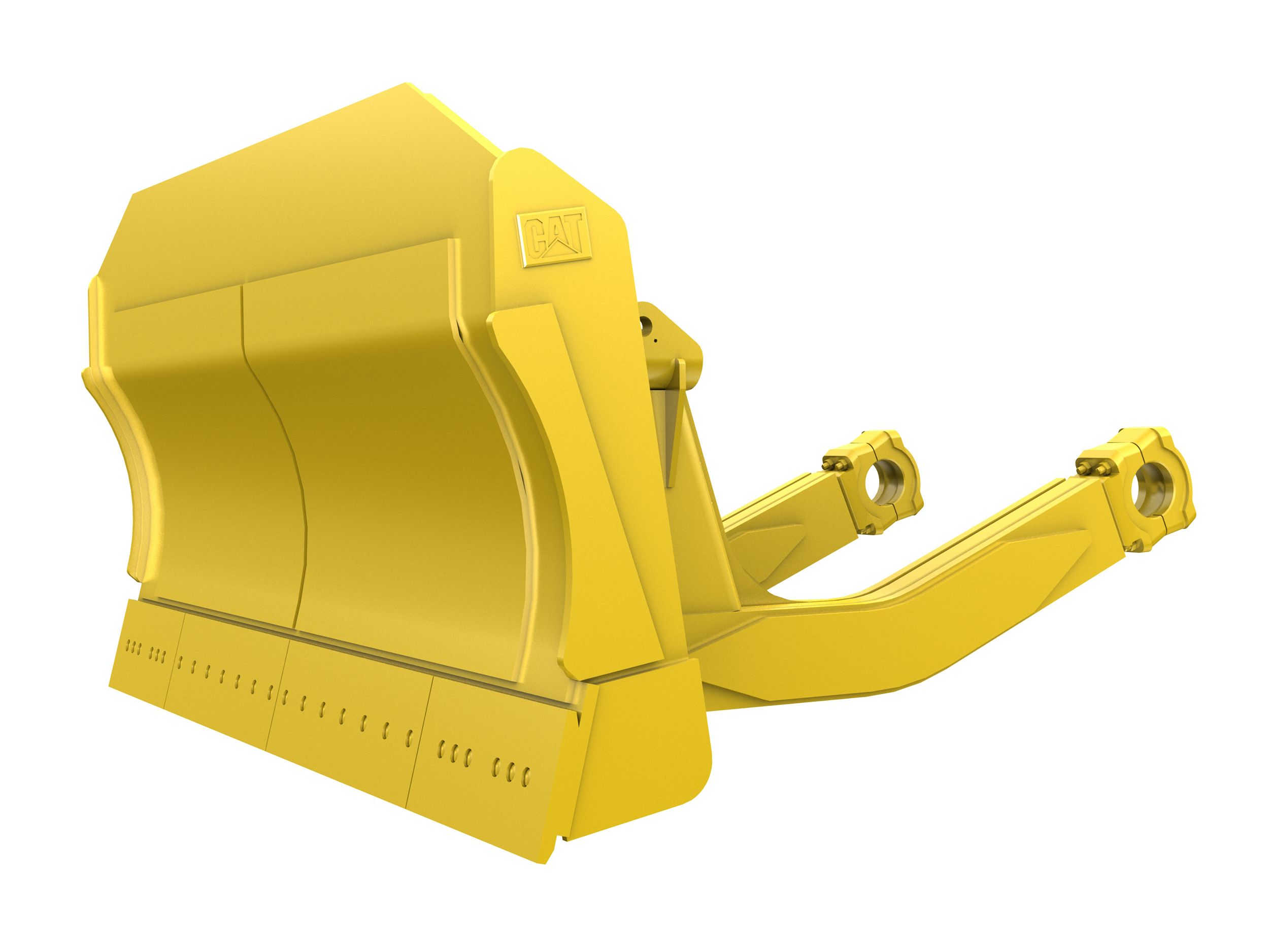

Cushion Dozer Blades
Used to push load scrapers or track-type tractors.

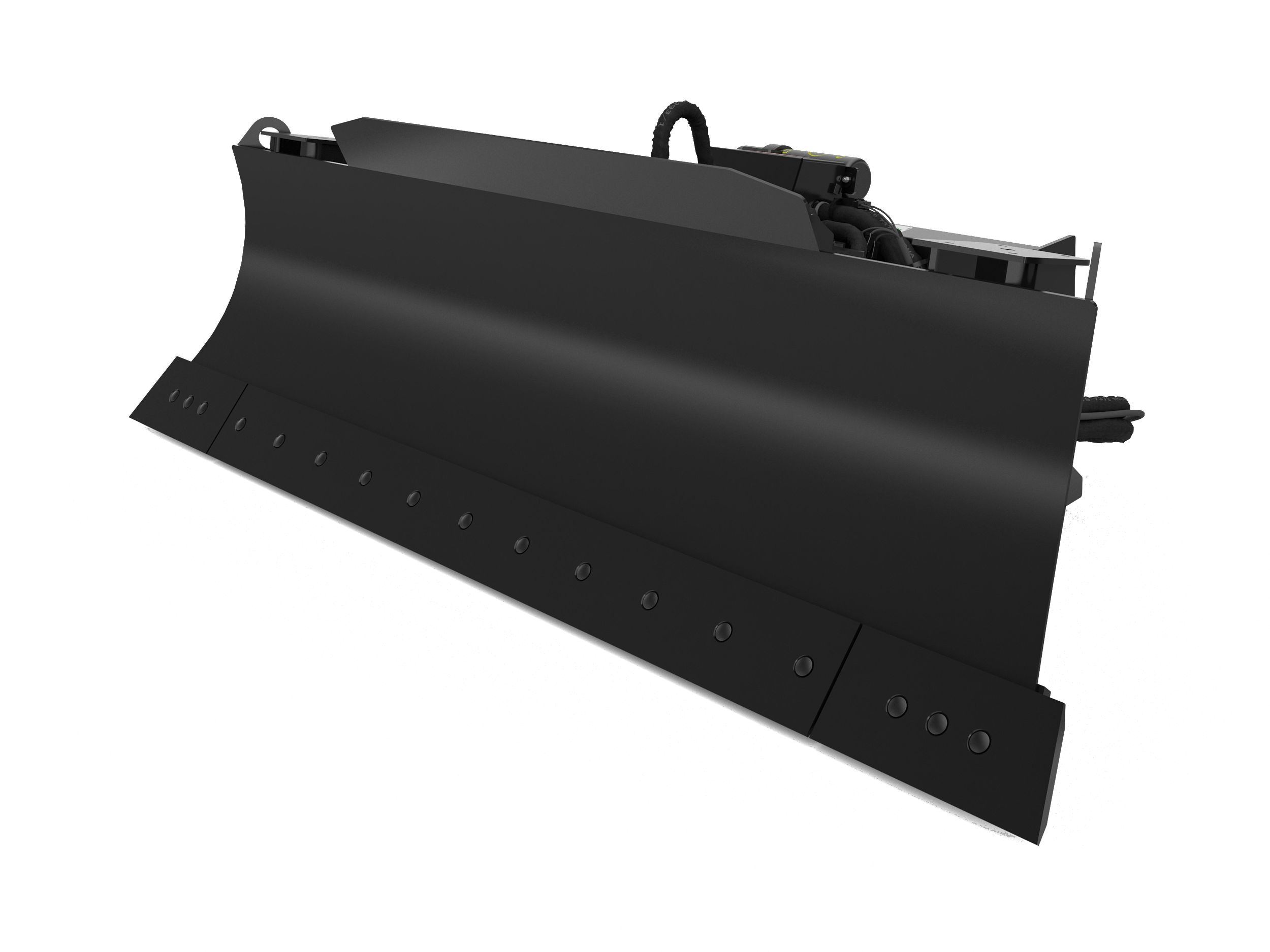

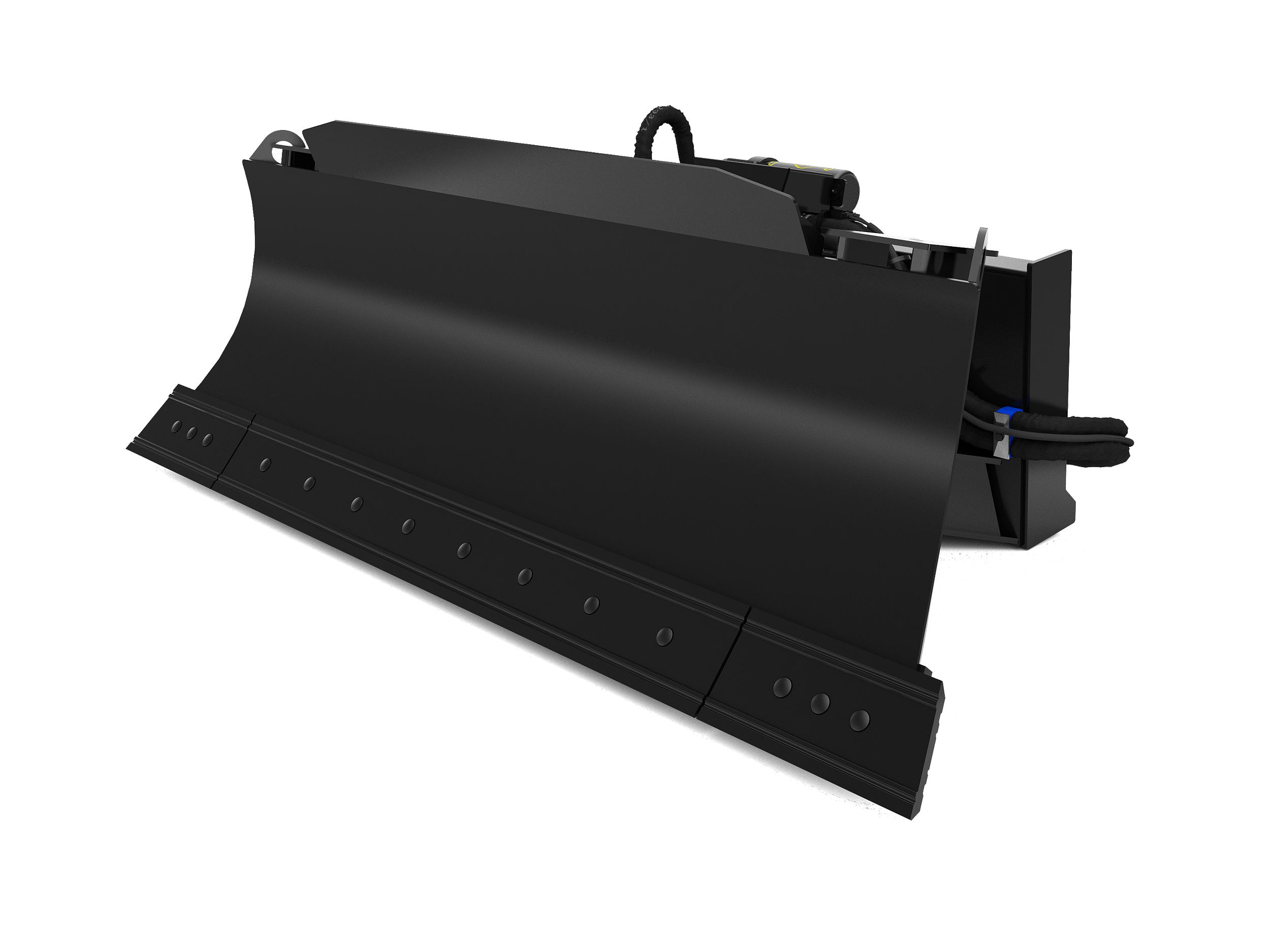

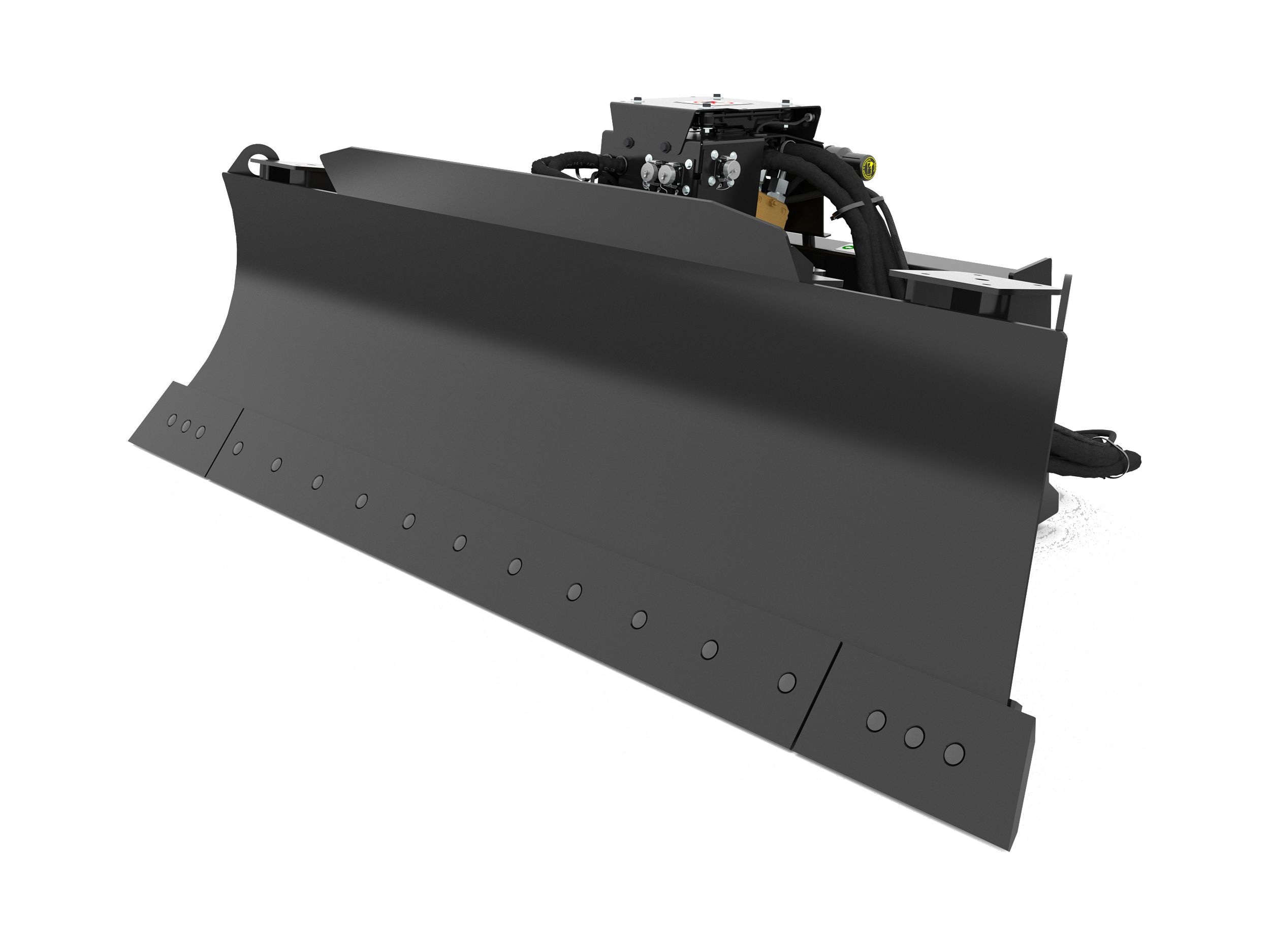

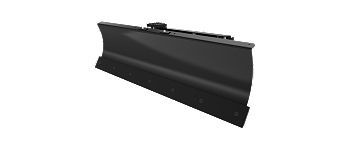

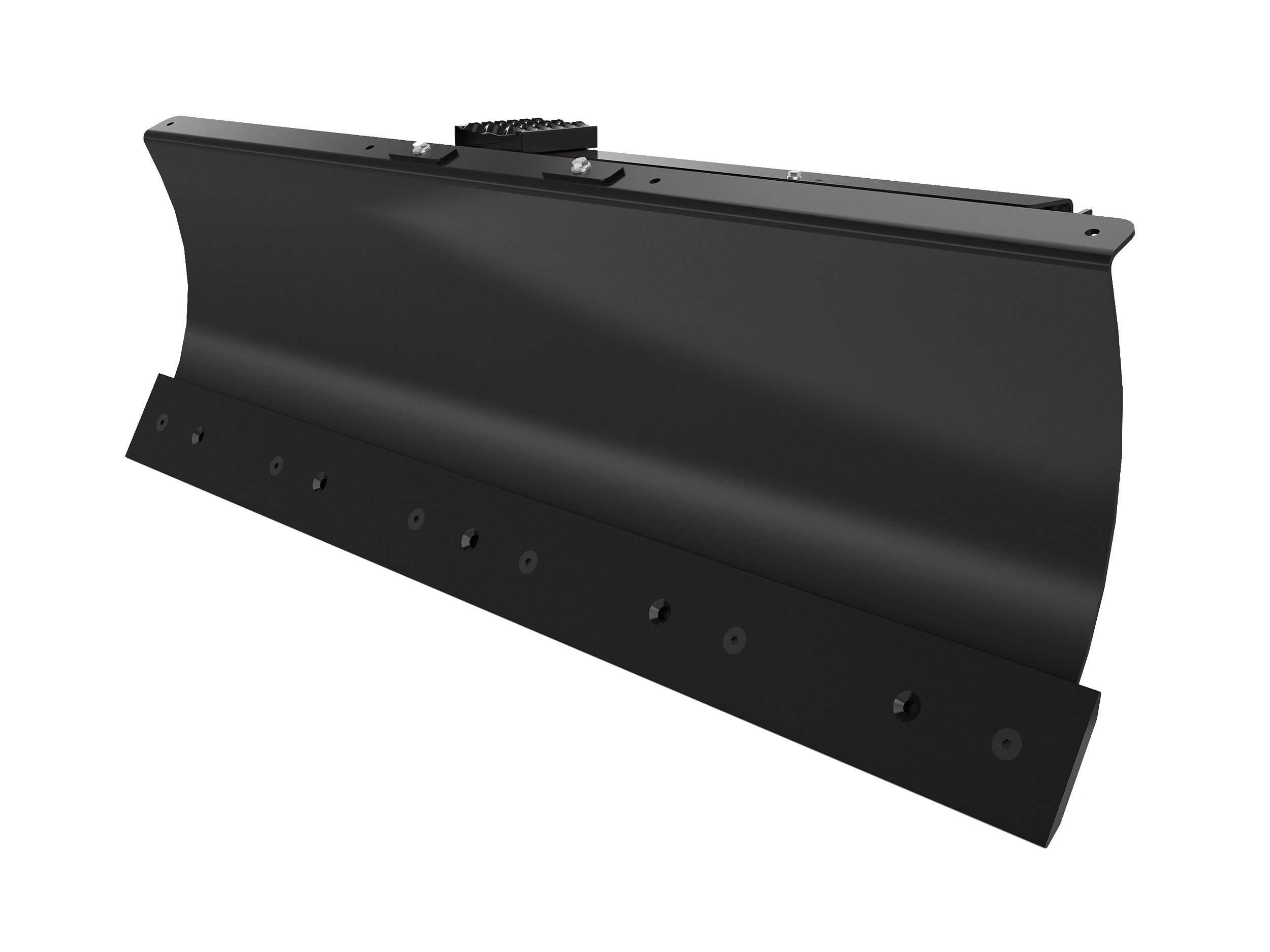

Dozer Blades
Designed for rough and finish grading in dirt, gravel, and light dozing.
2007 mm (79 in)
-
Blade Width
79 in
-
Width – Fully Angled
68.9 in
-
Maximum Blade Angle – Right/Left of Center
30 degrees
2337 mm (92 in), Smart
-
Blade Width
92 in
-
Width – Fully Angled
80.7 in
-
Maximum Blade Angle – Right/Left of Center
30 degrees
2337 mm (92 in)
-
Blade Width
92 in
-
Width – Fully Angled
80.7 in
-
Maximum Blade Angle – Right/Left of Center
30 degrees

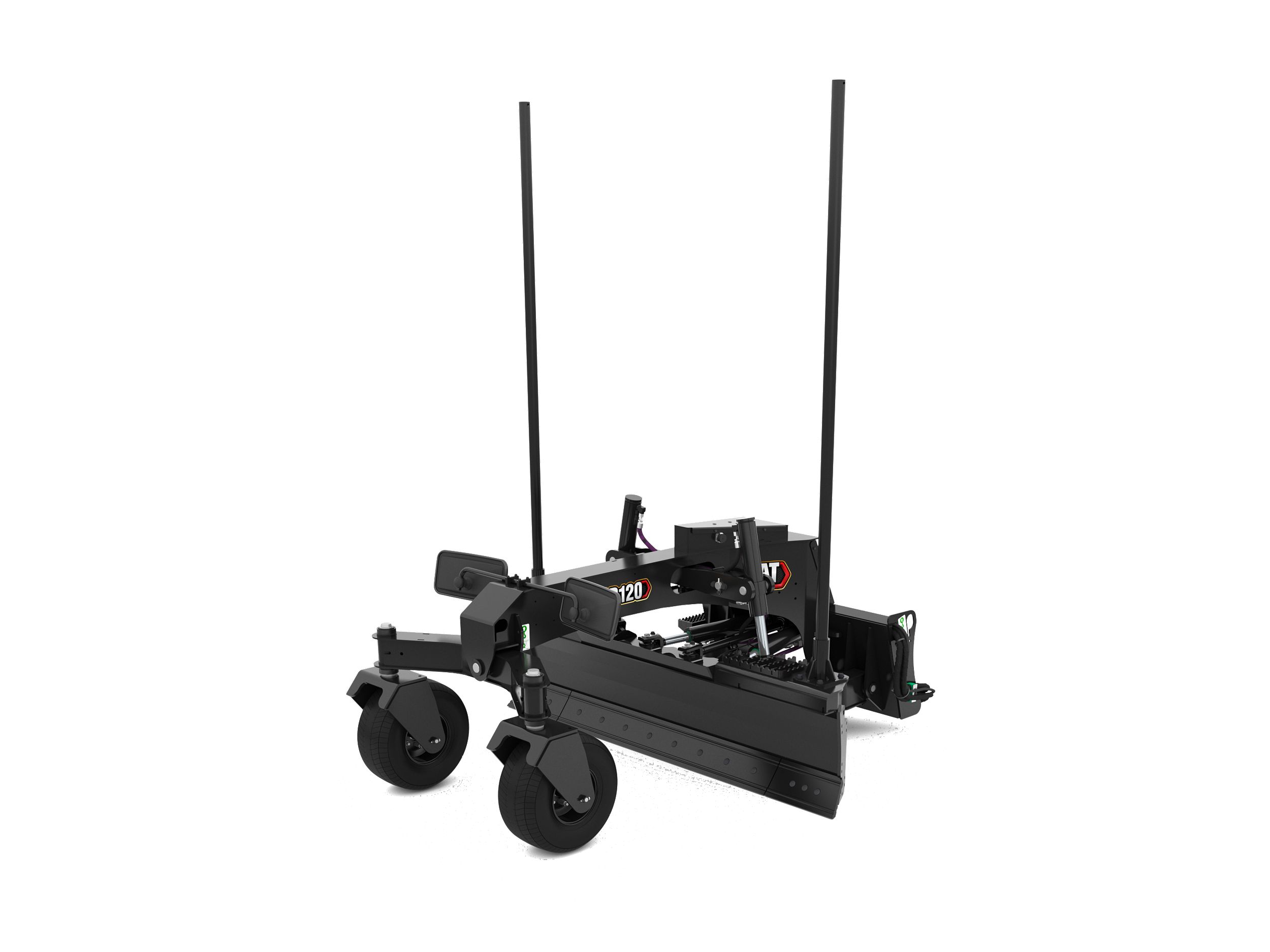

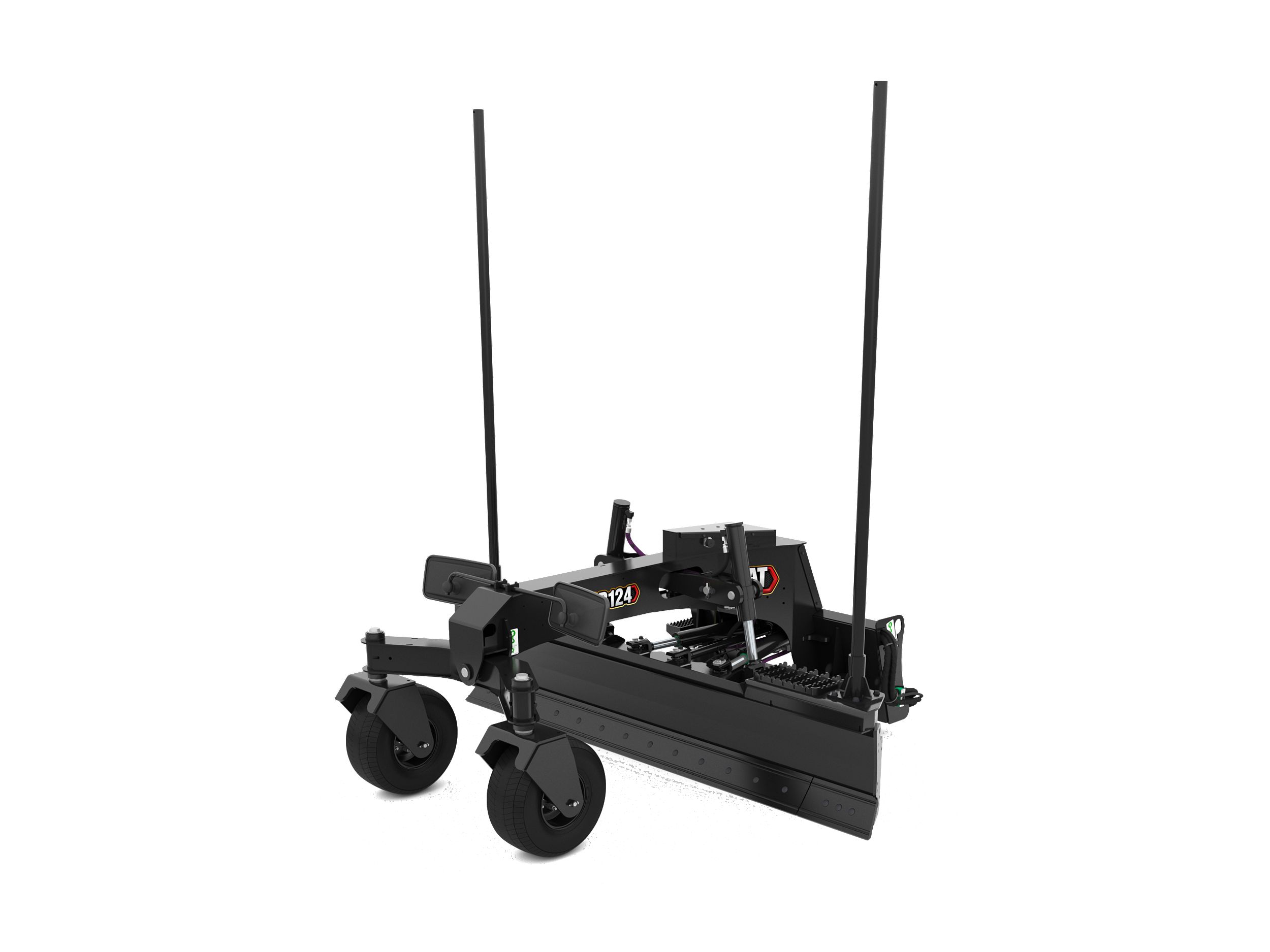

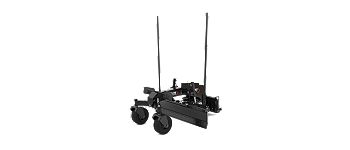

Grader Blades
Cat® SMART Grader Blade attachments are for cutting, moving and grading dirt, gravel, sand and virtually any other material used as a base.

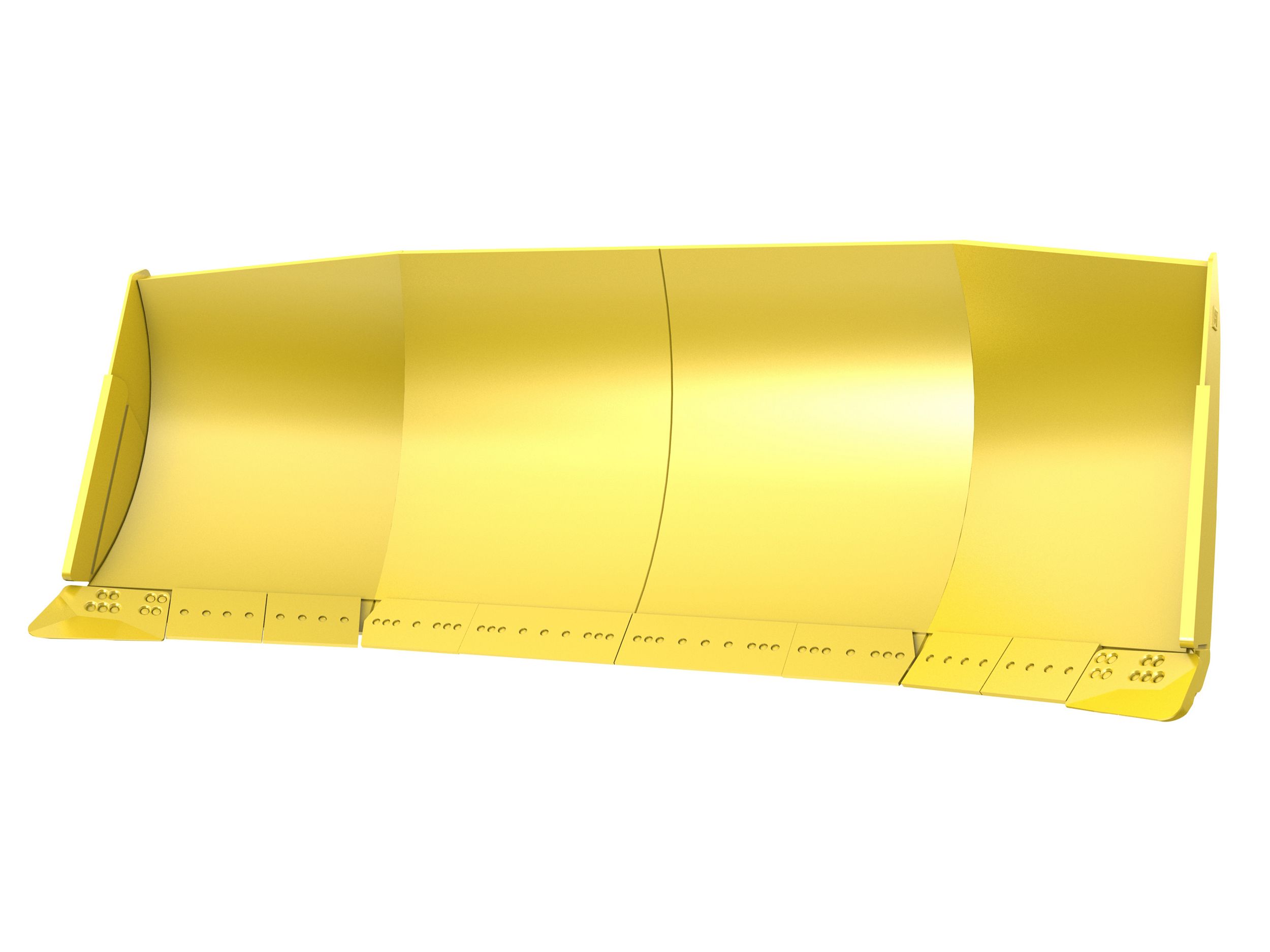

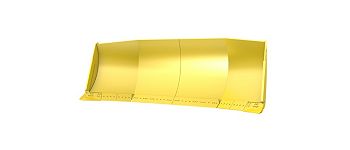

Landfill U-Blades
Designed as a versatile performer. A multi-purpose powerhouse, able to doze refuse, dig and move cover materials.
Reclamation U-Blades
Used for reclamation of mine spoil piles.

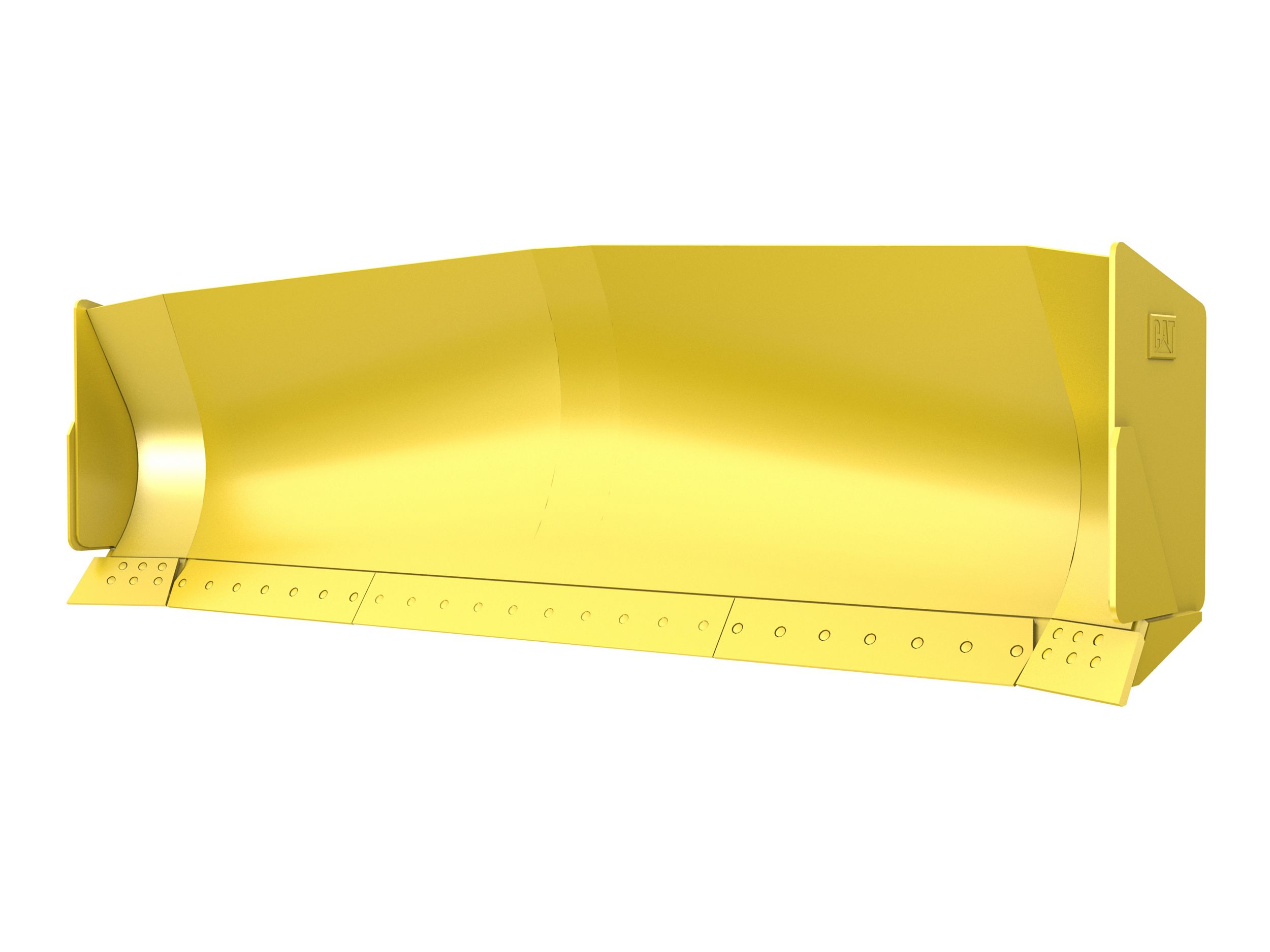

Variable Radius Semi-U Blades
Used for land improvements, soil conservation, site development or general construction.

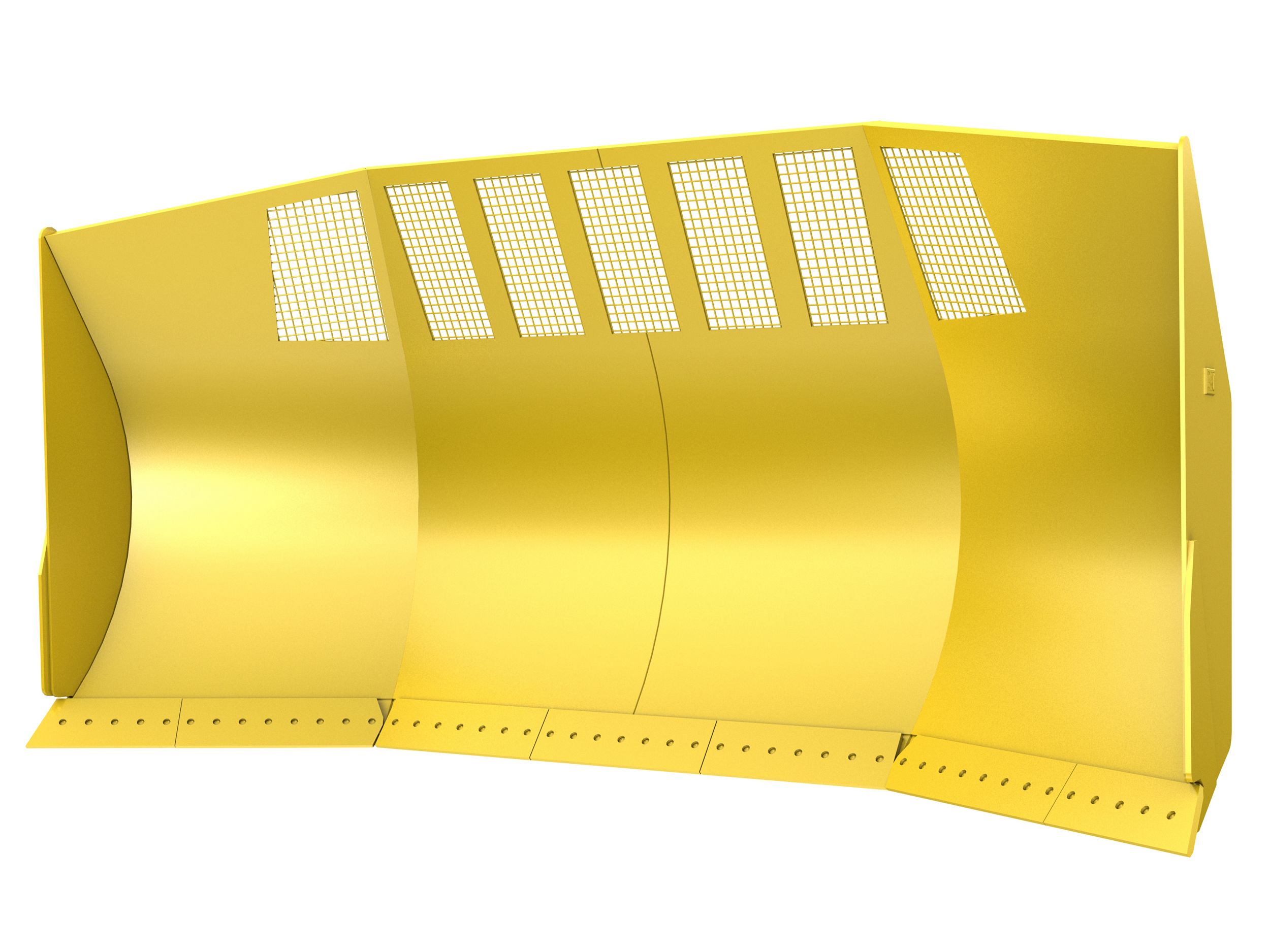

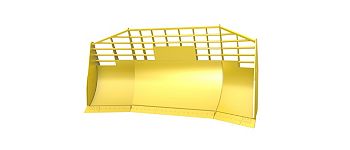

Woodchip U-Blades
A unique wing configuration provides aggressive side setting into the chip pile, quickly knocking down stacked chips and loading the blade.
15.3 m³ (20.0 yd³)
-
Width
168 in
-
Wing Angle
30 °
-
Height
74 in
28.3 m³ (37.0 yd³)
-
Width
216 in
-
Wing Angle
30 °
-
Height
92 in
45.9 m³ (60.0 yd³)
-
Width
215 in
-
Wing Angle
30 °
-
Height
122 in
72.6 m³ (95.0 yd³)
-
Width
265 in
-
Wing Angle
30 °
-
Height
132 in
23.8 m³ (30.8 yd³ )
-
Width
193 in
-
Wing Angle
30 °
-
Height
90 in
