Caterpillar

1883 mm (74 in) General Purpose Bucket with bolt-on cutting edge

Used to dig, load, carry, level, dump and grade in a variety of applications.

Media

Photos

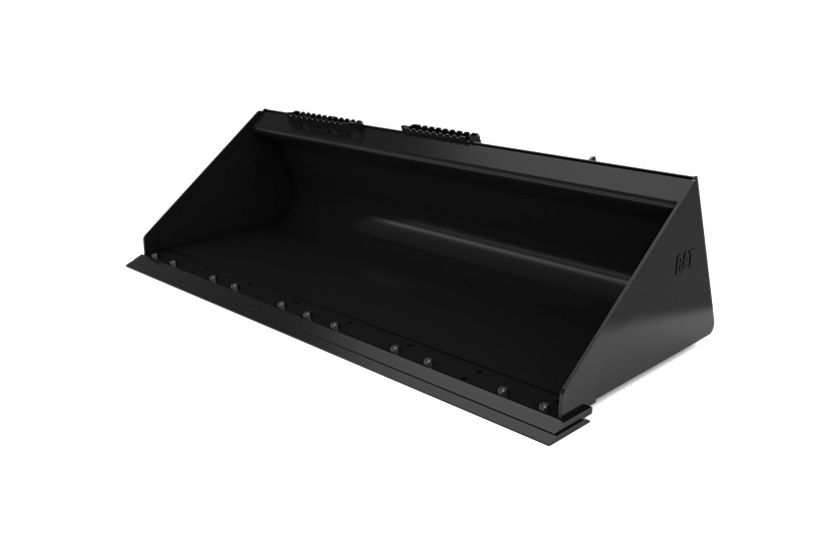

Studio Shot
Studio Shot

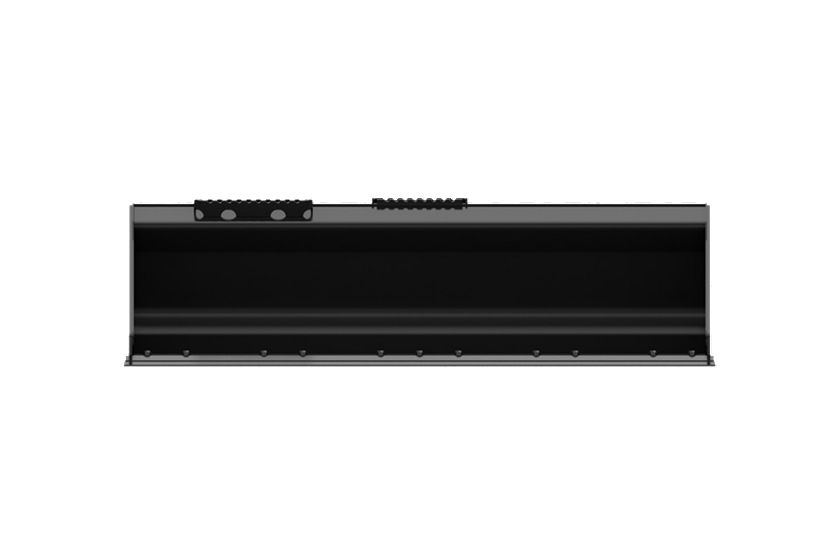

Front View
Front View
Top View
Top View

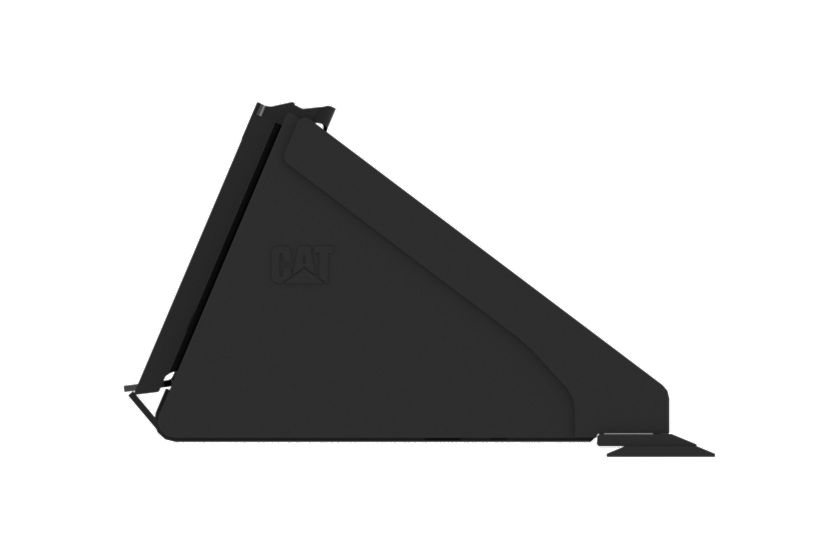

Left View
Left View

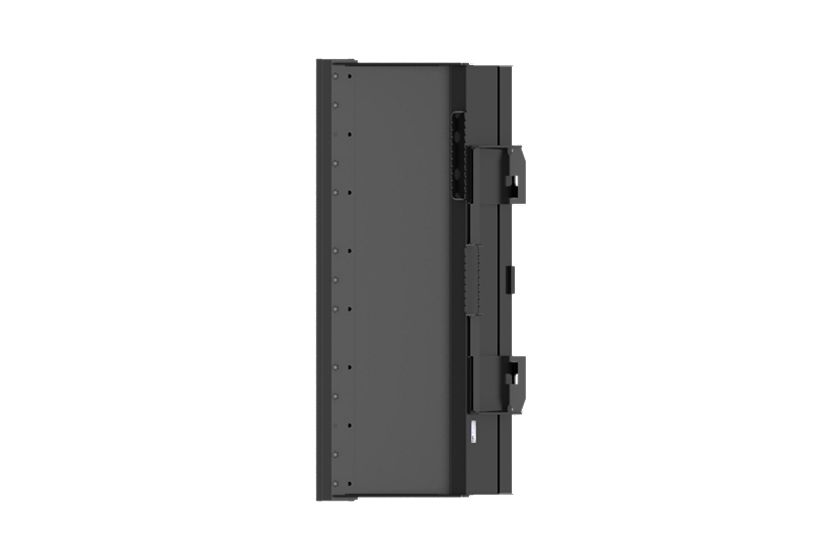

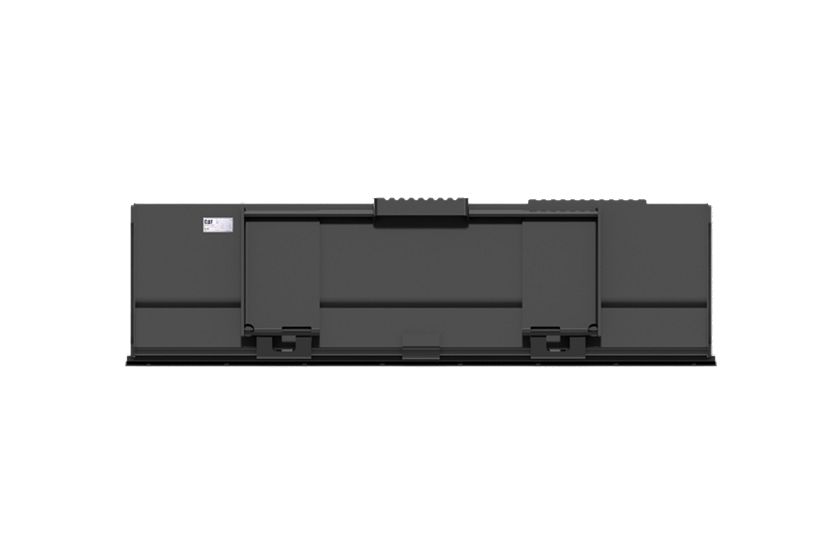

Rear View
Rear View

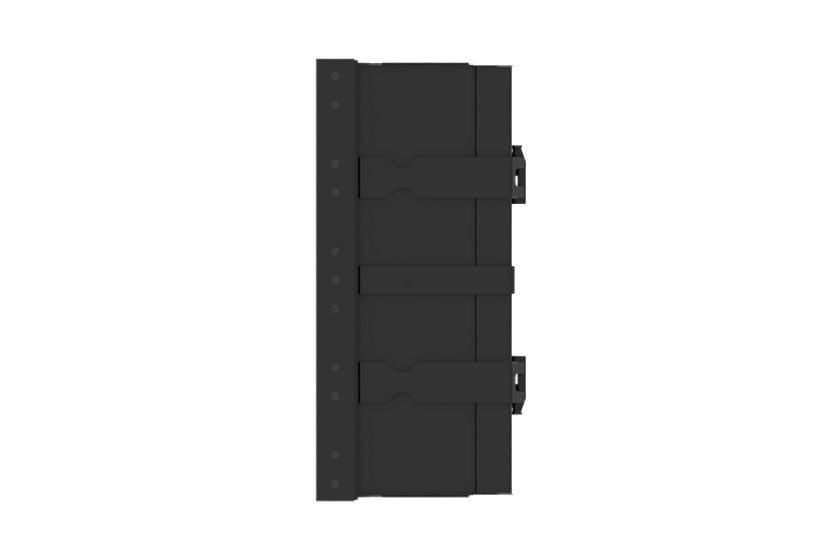

Bottom View
Bottom View

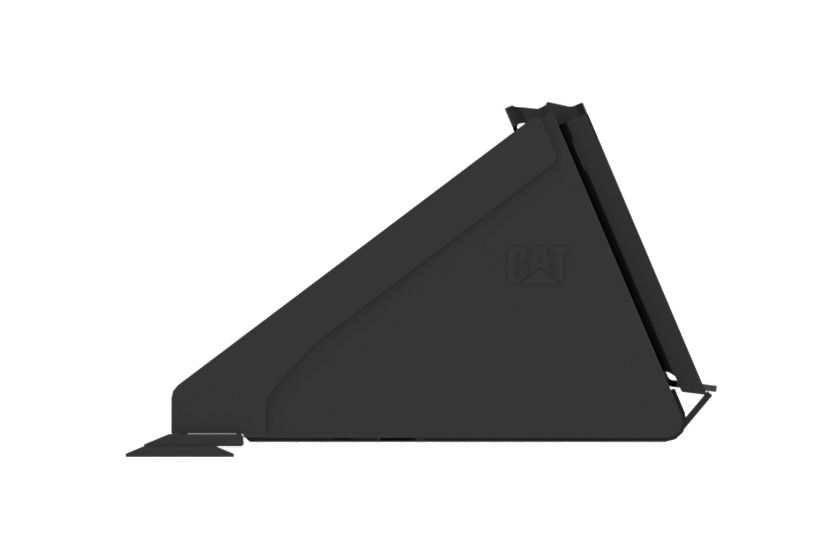

Right View
Right View

Videos

Cat® Buckets for Compact Loaders at Work
Cat® General Purpose Buckets for Skid Steer and Compact Loaders Features and Benefits
An Attachment for Every Job – Cat® Work Tool Attachments

Documents

Features

Application

Optimum Bucket Geometry

Full Length Skid Bars

Rugged Design

Ground Engaging Tool Options

Details

Specifications

Spec Value
Width 74.1 in 1883 mm
Capacity 0.58 yd³ 0.44 m³
Weight 597.5 lb 271 kg
Height 16.8 in 426 mm
Length 27.9 in 708 mm
Base Edge Thickness 0.7 in 19 mm
Cutting Edge Thickness 0.6 in 16 mm
Interface Type Skid Steer Coupler Skid Steer Coupler
