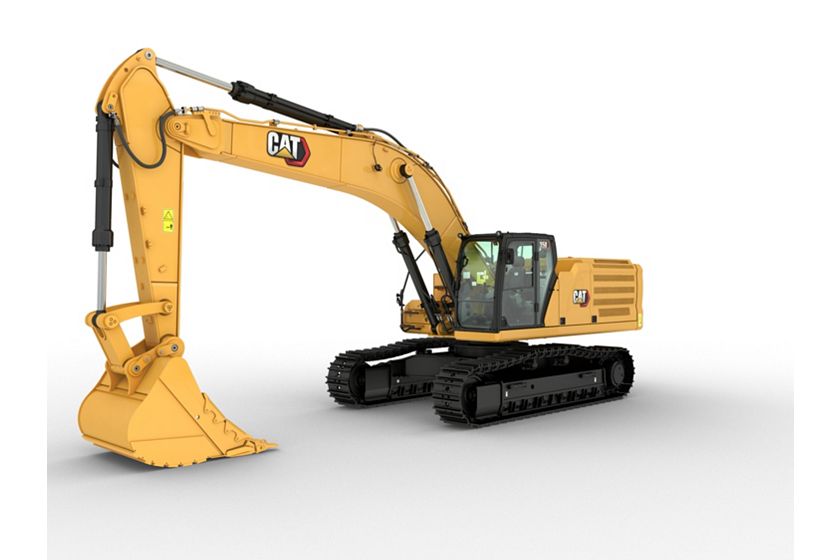

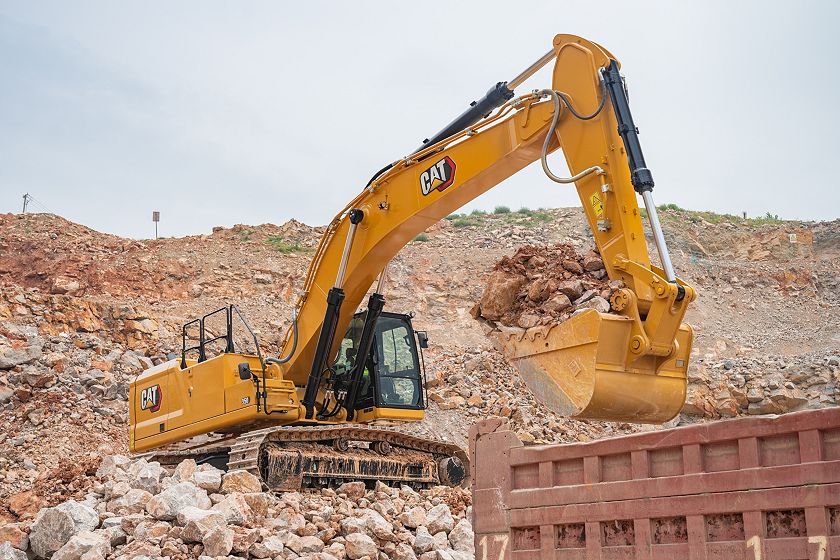

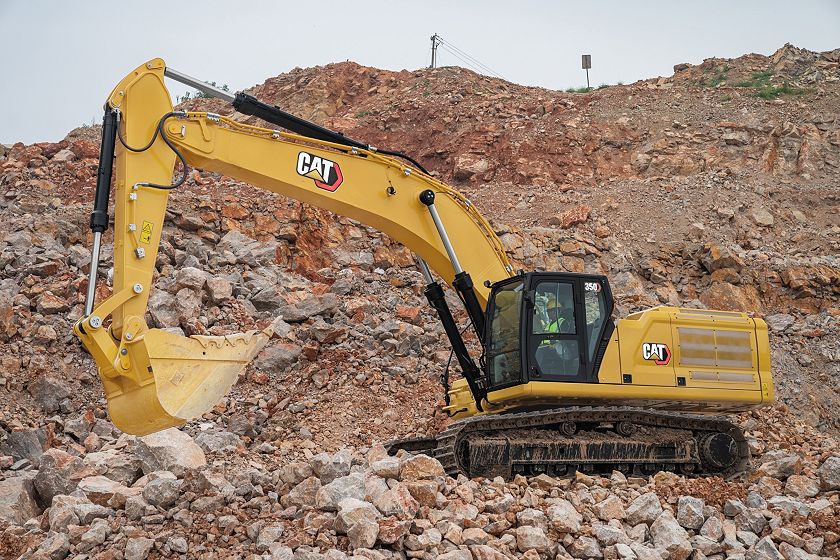

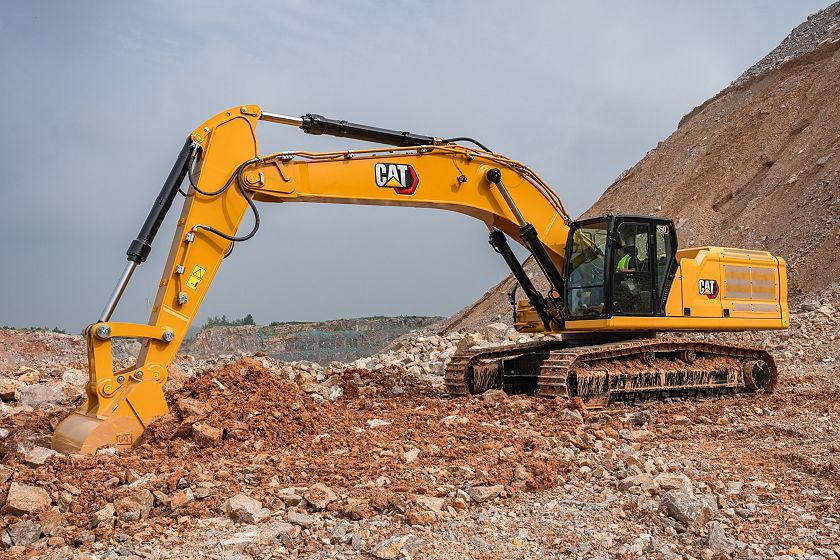

Cat® 350 Hydraulic Excavator

Name: Cat® 350 Hydraulic Excavator
Brand: Cat

Net Power – ISO 9249

413 hp

308 kW

Operating Weight

105100 lb

46000 kg

Maximum Digging Depth

26.11 ft

8210 mm

Overview

The Cat® 350 is known for its premier productivity, low owning and operating costs, and easy-to-use Cat technology. With a bucket capacity of up to 3.2 m3 (4.2 yd3) and outstanding digging force and swing torque, the 350 can move tons of material for top production. The cab features large windows at the front, sides, and rear, giving excellent visibility in all directions from the operator’s seat. Narrow front cab pillars allow a wider field of view to the front. The 350 will help you get tons of work done on grade and on time.

Availability may vary by region, consult your Cat® Dealer for more details.

Media

Jared Brown, Caterpillar’s Senior Product Service Excavator Engineer, highlights the latest features during the 2025 Annual Product Update (APU) for the Cat® Excavator lineup that helps you and your crew get to work without delays. With advancements in machine setup simplification, the latest operator-oriented User Interface (UI), Cat Grade 3D Ready, Cat Payload, and Advanced Payload, these updates help you make the most of every second of your shift. Learn more about the latest APU 2025 features at www.catoperatortraining.com. Availability of these features may vary by region, consult your Cat Dealer for more details.

The Cat® 350 is at the top of its class for productivity. With low owning and operating costs and easy-to-use Cat technology, the excavator will help you get tons of work done on grade and on time.

Founded in 1925, Caterpillar established the standard for tractors and construction equipment from the outset. Over the years, the company’s leaders have gained a great deal of knowledge about what works and what doesn’t. Caterpillar has grown alongside its customers, developing new products for hardworking individuals who want to push the limits. With that history comes innovation, change, creation, and learning. Caterpillar has partnerships across multiple industries and companies, continually developing and refining its understanding of how equipment should operate. Our commitment to designing and building the world’s best equipment is evident in every single product.

Interior

Interior 360 View

Documents

Get more info

Email
This field is for validation purposes and should be left unchanged.
First Name*
Last Name*
Company
Address 1*
Address 2
City*
County*
State*
Zip code*
Phone*
Email*
Referral
Message or additional info
CAPTCHA
How did you hear about us?*
*If you chose Other, please explain below.

Features

Latest Features

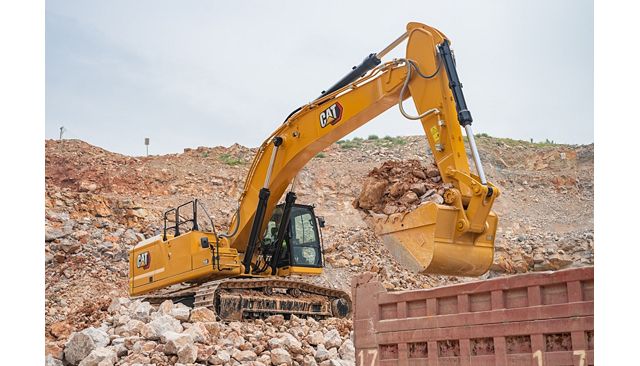

Performance Powerhouse

Exceptional Efficiency Through Technology

Take The Guesswork Out of Managing Your Equipment

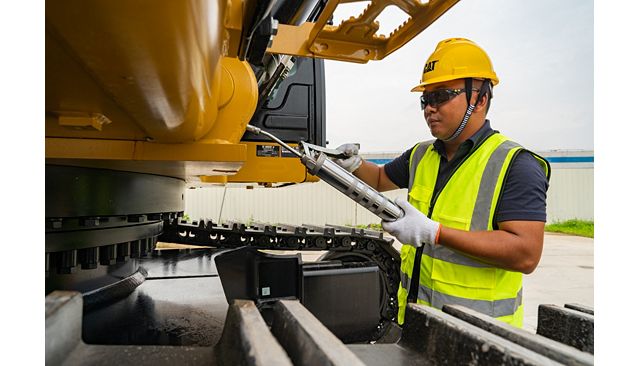

Easy and Economical Maintenance

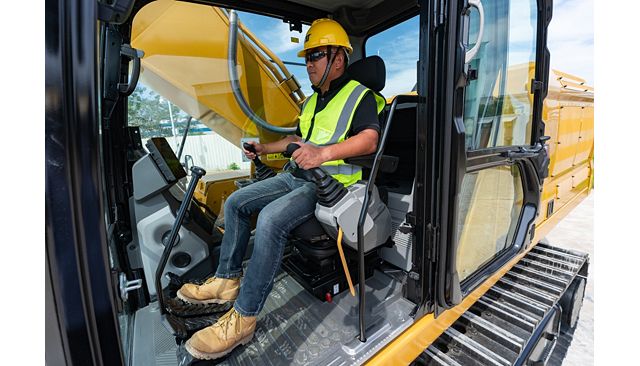

Ultimate Operator Comfort

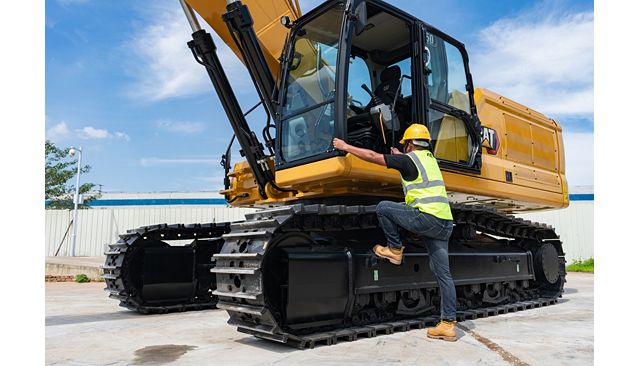

Safely Home Every Day

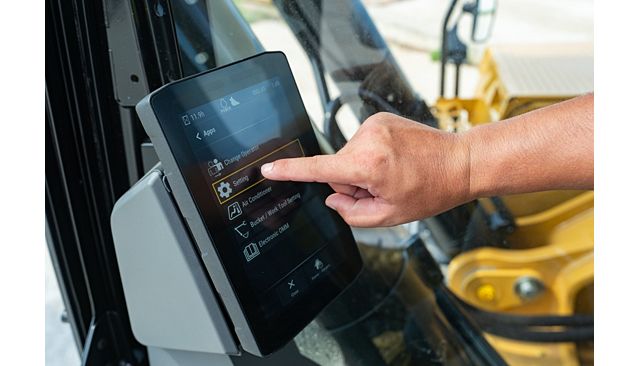

Intuitive and Empowering to Operate

Attachments

Sustainability

Specifications

US Metric

Engine

Spec	Value
Net Power – ISO 9249	413 hp 308 kW
Net Power – ISO 9249 (DIN)	419 hp (metric) 419 hp (metric)
Engine Model	C9.3 B C9.3 B
Engine Power – ISO 14396	414 hp 309 kW
Engine Power – ISO 14396 (DIN)	420 hp (metric) 420 hp (metric)
Bore	5 in 115 mm
Stroke	6 in 149 mm
Displacement	568 in³ 9.3 l
Biodiesel Capability	Up to B20¹ Up to B20¹
Emissions	Meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards. Meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
Note (1)	Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 1,800 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture. Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 1,800 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (2)	¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester)* 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. * Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. *** Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). ¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester)* 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. * Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. *** Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).

Hydraulic System

Spec	Value
Main System – Maximum Flow	206 gpm 779 L/min
Maximum Pressure – Equipment	5076 psi 35000 kPa
Maximum Pressure – Equipment – Lift Mode	5511 psi 38000 kPa
Maximum Pressure – Travel	5076 psi 35000 kPa
Maximum Pressure – Swing	3727 psi 25700 kPa

Swing Mechanism

Spec	Value
Maximum Swing Torque	139275 lbf·ft 189 kN·m
Note (1)	For CE-marked machine default value may be set lower For CE-marked machine default value may be set lower

Weights

Spec	Value
Operating Weight	105100 lb 46000 kg

Service Refill Capacities

Spec	Value
Fuel Tank Capacity	179.6 gal (US) 680 l
Cooling System	12.7 gal (US) 48 l
Engine Oil	8.5 gal (US) 32 l
Swing Drive	4 gal (US) 15 l
Final Drive – Each	2.9 gal (US) 11 l
Hydraulic System – Including Tank	145.3 gal (US) 550 l
Hydraulic Tank	57.3 gal (US) 217 l
DEF Tank	21.1 gal (US) 80 l

Dimensions

Spec	Value
Boom	Reach 6.9 m (22'8") Reach 6.9 m (22'8")
Stick	Reach 3.9 m (12'10") Reach 3.9 m (12'10")
Bucket	GDC 3.08 m³ (4.03 yd³) GDC 3.08 m³ (4.03 yd³)
Shipping Height – Top of Cab	10.8 ft 3260 mm
Handrail Height	11.2 ft 3400 mm
Shipping Length	39 ft 11800 mm
Tail Swing Radius	12.4 ft 3760 mm
Counterweight Clearance	4.5 ft 1340 mm
Ground Clearance	1.8 ft 520 mm
Track Length	17.9 ft 5400 mm
Track Length to Center of Rollers	14.4 ft 4360 mm
Track Gauge	9 ft 2740 mm
Transport Width – 600 mm (24”) Shoes	10.11 ft 3340 mm

Working Ranges and Forces

Spec	Value
Maximum Digging Depth	26.11 ft 8210 mm
Boom	Reach 6.9 m (22'8") Reach 6.9 m (22'8")
Stick	Reach 3.9 m (12'10") Reach 3.9 m (12'10")
Bucket	GDC 3.08 m³ (4.03 yd³) GDC 3.08 m³ (4.03 yd³)
Maximum Reach at Ground Level	39.8 ft 12150 mm
Maximum Cutting Height	35.1 ft 10690 mm
Maximum Loading Height	24.3 ft 7390 mm
Minimum Loading Height	7.2 ft 2190 mm
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom	26.6 ft 8080 mm
Maximum Vertical Wall Digging Depth	19.2 ft 5840 mm
Bucket Digging Force – ISO	60160 lbf·ft 268 kN
Stick Digging Force – ISO	41090 lbf·ft 183 kN

Air Conditioning System

Spec	Value
Air Conditioning	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. If equipped with R134a (Global Warming Potential = 1430), the system contains 1.000 kg (2.205 lb.) of refrigerant, which has a CO2 equivalent of 1.430 metric tonnes (1.576 tons). If equipped with R1234yf (Global Warming Potential = 0.501), the system contains 0.810 kg (1.786 lb.) of refrigerant, which has a CO2 equivalent of 0.001 metric tonnes (0.001 tons). The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. If equipped with R134a (Global Warming Potential = 1430), the system contains 1.000 kg (2.205 lb.) of refrigerant, which has a CO2 equivalent of 1.430 metric tonnes (1.576 tons). If equipped with R1234yf (Global Warming Potential = 0.501), the system contains 0.810 kg (1.786 lb.) of refrigerant, which has a CO2 equivalent of 0.001 metric tonnes (0.001 tons).

Standard Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

CAT TECHNOLOGY

VisionLink™
Remote Flash
Remote Troubleshoot
Compatibility with radios and base stations from Trimble, Topcon, and Leica
Capability with 3D grade systems from Trimble, Topcon, and Leica
Cat Grade with 2D
Cat Assist (Grade, Boom, Bucket, Swing, Lift)
Cat Payload (On-the-go weighing, Semiautomatic calibration, Payload/cycle information, USB Reporting Capability)
Work tool recognition and tracking (Requires PL161 attachment locator on work tool and Bluetooth receiver on machine)

ELECTRICAL SYSTEM

Maintenance-free 1,000 CCA batteries (x2)
Centralized electrical disconnect switch
LED exterior chassis and boom lights

ENGINE

Three selectable modes: Power, Smart, Eco
Auto engine speed control
52° C (126° F) high-ambient cooling capacity
Hydraulic reverse fan (optional in Europe)
– 18° C (0° F) cold start capability
Double element air filter with integrated pre-cleaner

HYDRAULIC SYSTEM

Boom and stick regeneration circuit
Electronic main control valve
Auto hydraulic oil warmup
Auto dig boost
Auto heavy lift
Auto swing parking brake
High performance hydraulic return filter
Bio hydraulic oil capability
Two speed travel

SAFETY AND SECURITY

E-Fence
Auto hammer stop
Caterpillar One Key security system
Lockable external tool / storage box
Lockable door, fuel, and hydraulic tank locks
Lockable fuel drain compartment
Service platform with anti-skid plate & recessed bolts
RH handrail and handhold
Signaling / warning horn
Ground-level secondary engine shutoff switch
Rearview camera
Lockable disconnect switch
Inspection lighting

SERVICE AND MAINTENANCE

Integrated vehicle health management system
Grouped location of engine oil & fuel filters
Scheduled Oil Sampling (S.O.S) ports

UNDERCARRIAGE AND STRUCTURES

Towing eye on base frame
9 mt (19,842 lb) counterweight

DELUXE CAB

High-resolution 203 mm (8″) LCD touchscreen monitor
Auto bi-level air conditioner
Jog dial and shortcut keys for monitor control
Keyless push-to-start engine control
Height-adjustable console
Tilt-up left-side console
Heated air-suspension seat
Monitor integrated Bluetooth radio with USB/Aux ports
12V DC outlets
Document storage
Overhead storage and rear storage with nets
Cup holder
Openable two-piece front window
Rear window emergency exit
Radial wiper with washer
Openable polycarbonate skylight hatch
LED dome light
Floor welcome light
Roof sunscreen
Roller front sunscreen
Washable floor mat
Beacon ready

PREMIUM CAB

High-resolution 254 mm (10″) LCD touchscreen monitor
Auto bi-level air conditioner
Jog dial and shortcut keys for monitor control
Keyless push-to-start engine control
Height-adjustable console
Tilt-up left-side console
Heated and ventilated air-suspension seat
Monitor integrated Bluetooth radio with USB/Aux ports
12V DC outlets
Document storage
Overhead storage and rear storage with nets
Beverage holder
Openable two-piece front window
Rear window emergency exit
Parallel wiper
Openable polycarbonate skylight hatch
LED dome light
Floor welcome light
Roof sunscreen
Roller front sunscreen
Washable floor mat
Beacon ready

Optional Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

BOOMS AND STICKS

6.55 m (21’6) Mass boom
6.9 m (22’8″) Reach boom
2.5 m (8’2″) Mass stick
2.9 m (9’6″) Reach stick
3.0 m (9’10”) Mass stick
3.35 m (11′) Reach stick
3.9 m (12’10”) Reach stick

CAT TECHNOLOGY

VisionLink™ back office reporting
Cat Grade Connectivity
Cat Grade 2D with Attachment Ready Option (ARO)
Cat Grade with 3D (single or dual GNSS)
Cat Grade 3D Ready
GNSS antennae
Laser catcher
Cat Tilt Rotator (TRS) Integration
Operator Coaching
Advanced Payload (Daily totals, Custom lists, Smart weight target, E-ticket Integration)
