Caterpillar

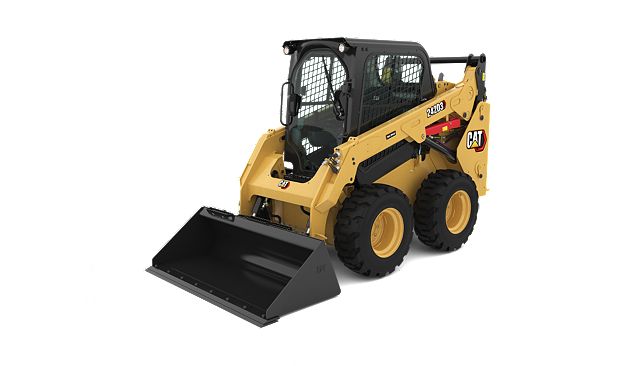

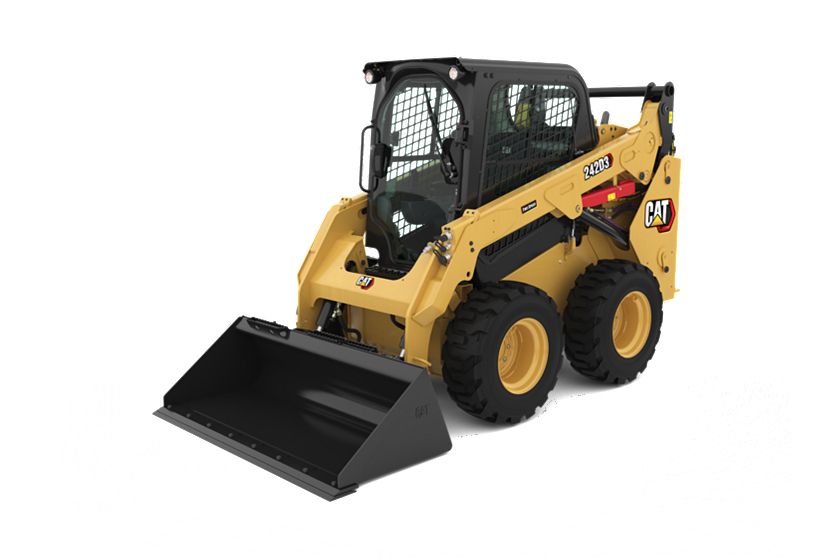

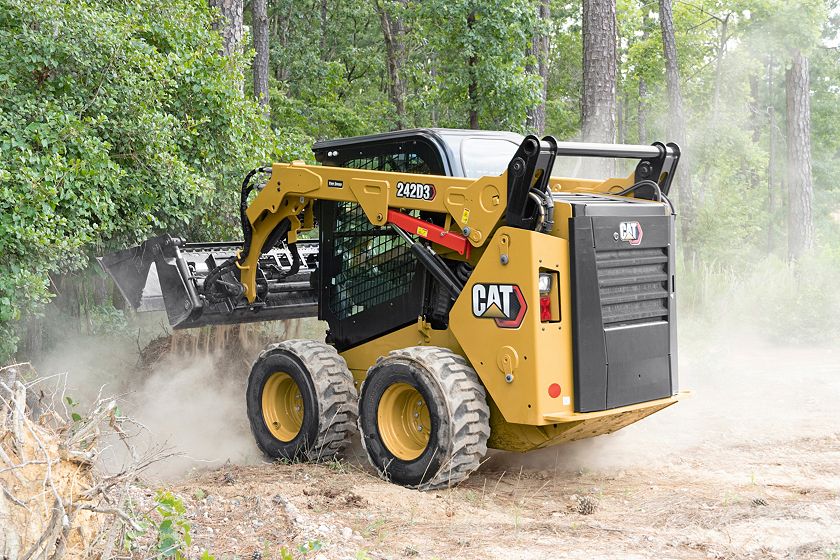

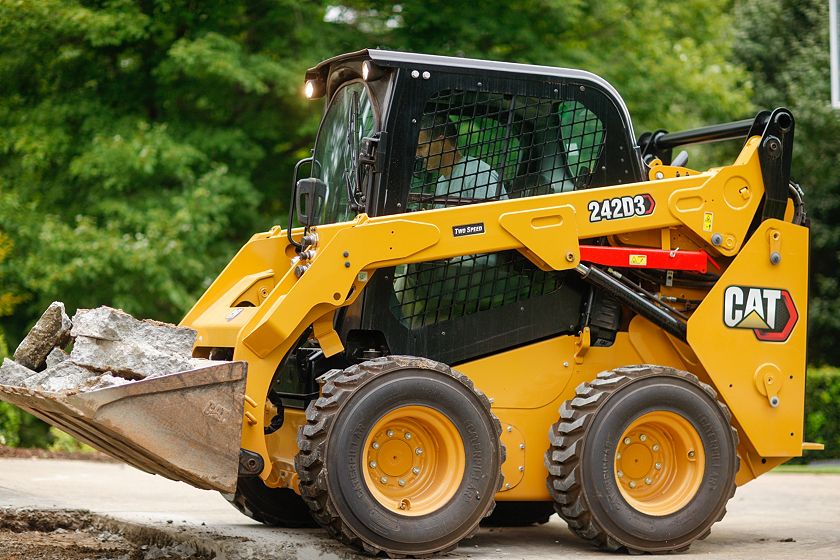

242D3 Skid Steer Loader

Name: 242D3 Skid Steer Loader
Brand: Caterpillar

Gross Power – SAE J1995

74.3 hp

55.4 kW

Rated Operating Capacity

2200 lb

1000 kg

Operating Weight

7138 lb

3238 kg

Overview

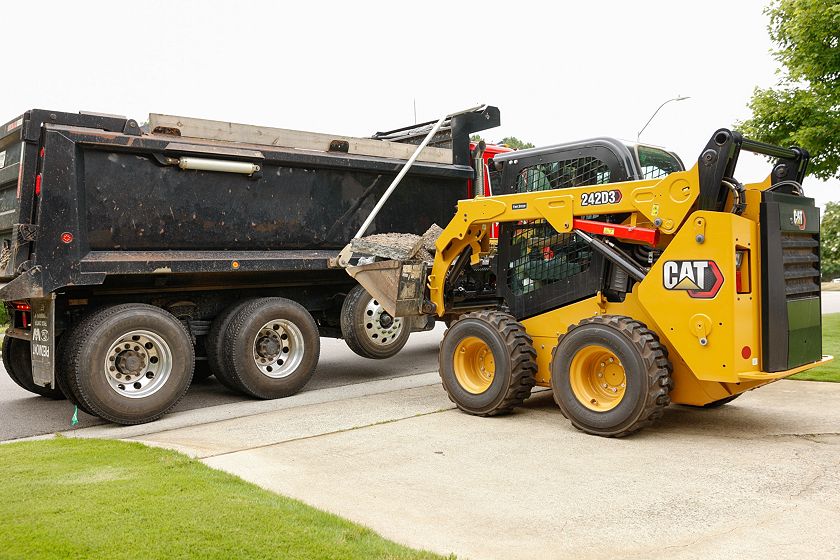

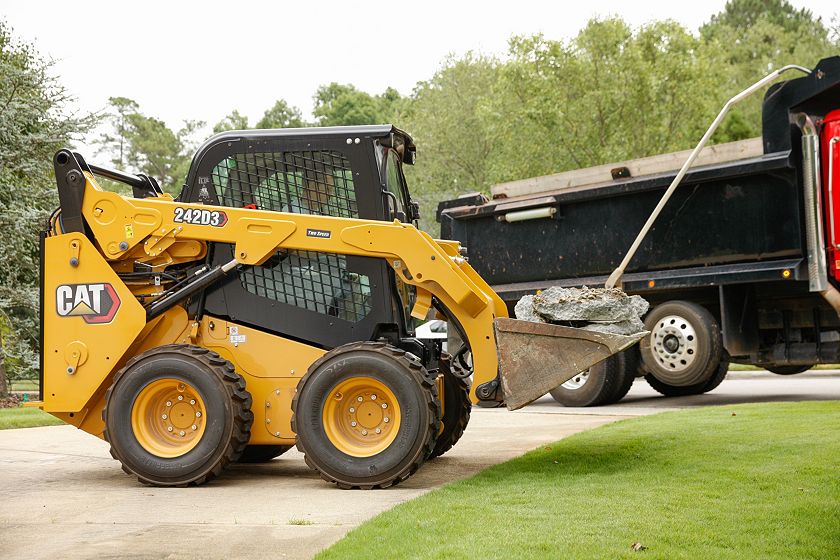

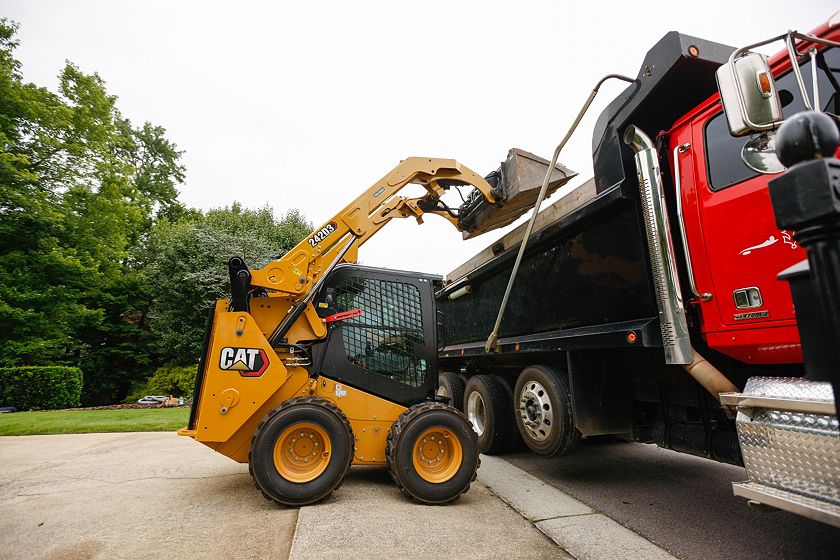

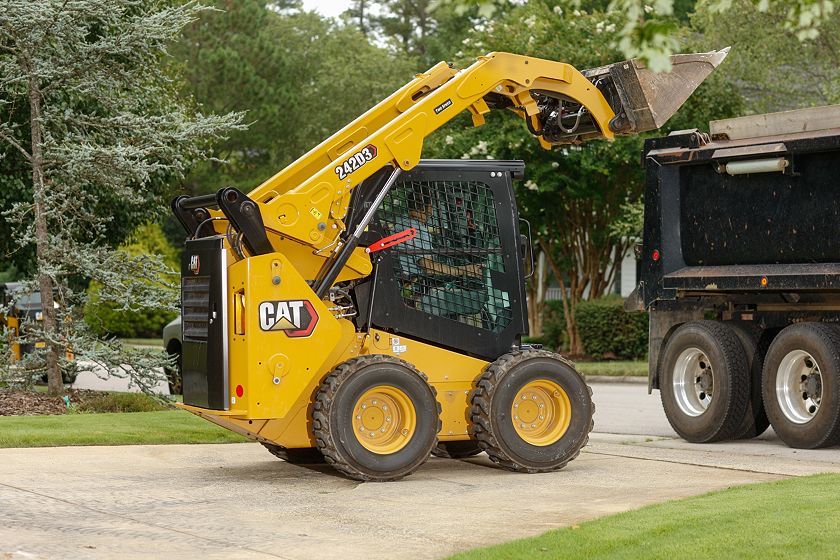

The Cat® 242D3 Skid Steer Loader, with its vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its stability and lifting performance provides excellent material handling.

Media

Overview

Features and Benefits

At Work

SSL and CTL At Work

Daily Maintenenace

Experience What You Inspired

Exterior

Interior

Documents

Get Price

Get more info

First Name*
Last Name*
Company
Address 1*
Address 2
City*
County*
State*
Zip code*
Phone*
Email*
Referral
Message or additional info
CAPTCHA
How did you hear about us?*
*If you chose Other, please explain below.
Phone
This field is for validation purposes and should be left unchanged.

Features

Quiet and Comfortable

Maximum Performance

Making Your Job Easier

Optimized Machine Capability

A Smooth Ride

Sustainability

Specifications

US Metric

Engine

Spec	Value
Gross Power – SAE J1995	74.3 hp 55.4 kW
Net Power – SAE 1349	73.2 hp 54.6 kW
Displacement	203 in³ 3.3 l
Stroke	4.7 in 120 mm
Bore	3.7 in 94 mm
Net Flywheel Power	73.2 hp 54.6 kW
Peak Torque – 1,500 rpm – SAE J1995	195 ft·lbf 265 N·m
Net Power – ISO 9249	73.9 hp 55.1 kW
Engine Model	Cat C3.3B DIT (turbo) Cat C3.3B DIT (turbo)

Operating Specifications

Spec	Value
Rated Operating Capacity	2200 lb 1000 kg
Tipping Load	4400 lb 2000 kg
Breakout Force – Tilt Cylinder	4963 lb 2251 kg
Rated Operating Capacity with Optional Counterweight	2410 lb 1095 kg
Note	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS, 1730 mm (68 in) low profile bucket, Cat 12 × 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted). Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS, 1730 mm (68 in) low profile bucket, Cat 12 × 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).

Weights

Spec	Value
Operating Weight	7138 lb 3238 kg
Note	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS, 1730 mm (68 in) low profile bucket, Cat 12 × 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted). Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS, 1730 mm (68 in) low profile bucket, Cat 12 × 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).

Dimensions

Spec	Value
Wheel Base	43.5 in 1105 mm
Height – Top of Cab	83.1 in 2111 mm
Vehicle Width over Tires	66 in 1676 mm
Ground Clearance	8.7 in 222 mm
Departure Angle	27° 27°
Maximum Dump Angle	52° 52°
Turning Radius from Center – Coupler	51.8 in 1314 mm
Note	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS, 1730 mm (68 in) low profile bucket, Cat 12 × 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted). Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS, 1730 mm (68 in) low profile bucket, Cat 12 × 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).
Bucket Pin Reach – Maximum Lift	7.2 in 182 mm
Length – Without Bucket	108.9 in 2767 mm
Bucket Pin Height – Maximum Lift	121.1 in 3076 mm
Turning Radius from Center – Machine Rear	64.5 in 1639 mm
Maximum Overall Height	154.2 in 3917 mm
Bucket Pin Height – Carry Position	7.9 in 200 mm
Length – With Bucket on Ground	137.3 in 3487 mm
Turning Radius from Center – Bucket	83 in 2107 mm
Reach – Maximum Lift/Dump	21.7 in 552 mm
Maximum Reach – With Arms Parallel to Ground	49.2 in 1249 mm
Rack Back Angle – Maximum Height	87° 87°
Clearance at Maximum Lift and Dump	90 in 2285 mm
Bumper Overhang – Behind Rear Axle	40.2 in 1021 mm

Hydraulic System

Spec	Value
Hydraulic Flow – Standard – Loader Hydraulic Flow	20 gal/min 76 l/min
Hydraulic Flow – High Flow – Hydraulic Power (Calculated)	58 hp 43 kW
Hydraulic Flow – High Flow – Maximum Loader Hydraulic Flow	30 gal/min 112 l/min
Hydraulic Flow – Standard – Loader Hydraulic Pressure	3335 psi 23000 kPa
Hydraulic Flow – Standard – Hydraulic Power (Calculated)	39 hp 29 kW
Hydraulic Flow – High Flow – Maximum Loader Hydraulic Pressure	3335 psi 23000 kPa

Cab

Spec	Value
ROPS	ISO 3471:2008 ISO 3471:2008
FOPS	ISO 3449:2005 Level I ISO 3449:2005 Level I

Power Train

Spec	Value
Travel Speed – Forward or Reverse – Two Speed Option	11.5 mile/h 18.5 km/h
Travel Speed – Forward or Reverse – One Speed	7.5 mile/h 12.1 km/h

Service Refill Capacities

Spec	Value
Chain Box – Each Side	2.3 gal (US) 8.8 l
Cooling System	3.7 gal (US) 14 l
Engine Crankcase	3 gal (US) 11 l
Fuel Tank	24.8 gal (US) 94 l
Hydraulic System	13.2 gal (US) 50 l
Hydraulic Tank	10.3 gal (US) 39 l

Noise Level

Spec	Value
Inside Cab**	83 dB(A) 83 dB(A)
Outside Cab***	101 dB(A) 101 dB(A)
Note (1)	Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe. Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Note (2)	The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.
Note (3)	*The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC. *The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.

Air Conditioning System (if equipped)

Spec	Value
Air Conditioning	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes. The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.

Standard Equipment

ELECTRICAL

12 volt Electrical System
80 ampere Alternator
Ignition Key Start/Stop Switch
Lights: Gauge Backlighting, Two Rear Tail Lights, Two Adjustable Front and Rear Halogen Lights, Dome Light
Backup Alarm
Heavy Duty Battery, 850 CCA

OPERATOR ENVIRONMENT

Advanced Display with Rearview Camera: Full Color, 127 mm (5 in) LCD screen; Advanced Multi-operator Security System; On-screen Adjustments for Implement Response, Hystat Response, and Creep Control
Gauges: Fuel Level, Hour Meter
Operator Warning System Indicators: Air Filter Restriction, Alternator Output, Armrest Raised/Operator Out of Seat, Engine Coolant Temperature, Engine Oil Pressure, Glow Plug Activation, Hydraulic Filter Restriction, Hydraulic Oil Temperature, Parking Brake Engaged, Engine Emission System
Adjustable Vinyl Seat
Fold In Ergonomic Contoured Armrest
Control Interlock System, when operator leaves seat or armrest raised: Hydraulic System Disables, Hydrostatic Transmission Disables, Parking Brake Engages
ROPS Cab, Open, Tilt Up
FOPS, Level I
Top and Rear Windows
Floor Mat
Interior Rearview Mirror
12 volt Electric Socket
Horn
Hand (Dial) Throttle, Electronic
Adjustable Joystick Controls
Anti-theft Security System with 6-button Keypad
Storage Compartment with Netting

POWER TRAIN

Cat C3.3B, Turbo Diesel Engine, Meeting Tier 4 Final and Stage V Emission Standards
Air Cleaner, Dual Element, Radial Seal
S·O·SSM Sampling Valve, Hydraulic Oil
Filters, Cartridge-type, Hydraulic
Filters, Canister-type, Fuel and Water Separator
Radiator/Hydraulic Oil Cooler (side-by-side)
Spring Applied, Hydraulically Released Parking Brakes
Hydrostatic Transmission
Four Wheel Chain Drive

OTHER

Engine Enclosure, Lockable
Extended Life Antifreeze, –36° C (–33° F)
Machine Tie Down Points (6)
Support, Lift Arm
Hydraulic Oil Level Sight Gauge
Radiator Coolant Level Sight Gauge
Radiator, Expansion Bottle
Cat ToughGuard™ Hose
Auxiliary, Hydraulics, Continuous Flow
Heavy Duty, Flat Faced Quick Disconnects with Integrated Pressure Release
Split D-Ring to Route Work Tool Hoses Along Side of Left Lift Arm
Electrical Outlet, Beacon
Belly Pan Cleanout
Variable Speed Demand Fan
Product Link™ PL240, Cellular

MANDATORY EQUIPMENT

Hydraulics, Standard or High Flow
Quick Coupler, Mechanical or Powered
High Visibility Seat Belt, 50 mm (2 in) or 75 mm (3 in)
EU Preparation Package
Power Train: One Speed, One Speed with Speed Sensitive Ride Control, Two Speed or Two Speed with Speed Sensitive Ride Control
Tires, 12 × 16.5 or 10 × 16.5
PERFORMANCE PACKAGES:
– Performance Package H1: Standard Flow Hydraulics (No Self Level)
– Performance Package H2: Standard Flow Hydraulics, Dual Direction Electronic Self Level (Raise and Lower), Work Tool Return to Dig, Work Tool Positioner, and Electronic Snubbing (Raise and Lower)
– Performance Package H3: High Flow Hydraulics, Dual Direction Electronic Self Level (Raise and Lower), Work Tool Return to Dig, Work Tool Positioner, and Electronic Snubbing (Raise and Lower)
COMFORT PACKAGES:
– Open ROPS (C0): Static Seat (No Foot Throttle, Headliner, Heater or Door)
– Open ROPS (C1): Foot Throttle, Headliner, Cup Holder, and choice of Seat (Mechanical Suspension or High Back, Heated, Air Ride Seat) (No Heater or Door)
– Enclosed ROPS with Heater (C2): Foot Throttle, Headliner, Heater and Defroster, Side Windows, Cup Holder, Radio Ready, choice of Seat (Mechanical Suspension or High Back, Heated, Air Ride Seat) and Door (Glass or Polycarbonate)
– Enclosed ROPS with A/C (C3): C2 + Air Conditioner

Optional Equipment

OPTIONAL EQUIPMENT

Hand-Foot Style Controls
External Counterweights
Beacon, Rotating
Engine Block Heater – 120V
Oil, Hydraulic, Cold Operation
Paint, Custom
Product Link PL641, Cellular
Bluetooth® Radio with Microphone (AM/FM/Weather Band Receiver with USB and Auxiliary Input Jack)
