Caterpillar

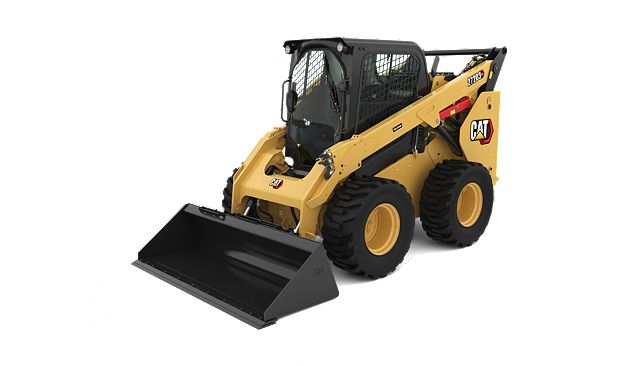

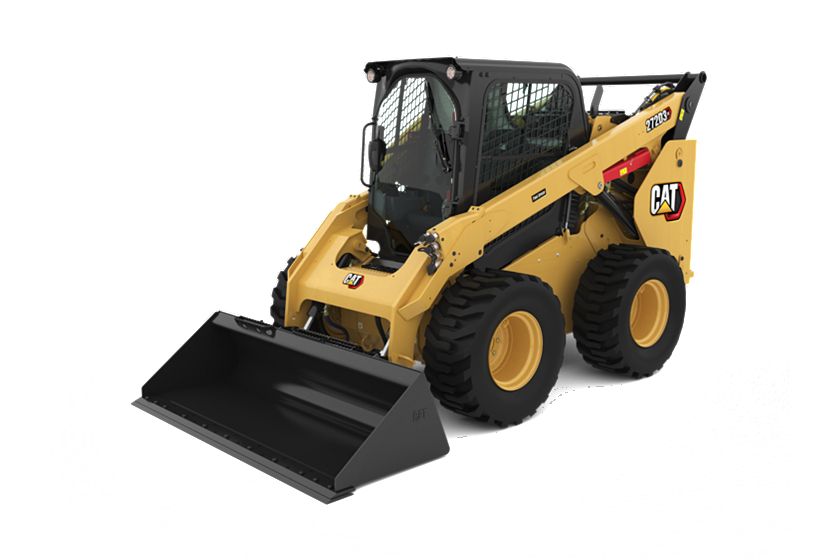

272D3 XE Skid Steer Loader

Name: 272D3 XE Skid Steer Loader
Brand: Caterpillar

Gross Power – SAE J1995

110 hp

82 kW

Rated Operating Capacity

3700 lb

1680 kg

Operating Weight

9573 lb

4342 kg

Overview

The Cat® 272D3 XE Skid Steer Loader, with its powerful engine, high output hydraulic system, high lift forces and vertical lift design, provides the maximum performance for work tool productivity, digging, truck loading and material handling.

Media

Overview

Features and Benefits

At Work

SSL and CTL At Work

Daily Maintenenace

Experience What You Inspired

Exterior

Interior

Documents

Get more info

First Name*
Last Name*
Company
Address 1*
Address 2
City*
County*
State*
Zip code*
Phone*
Email*
Referral
Message or additional info
CAPTCHA
How did you hear about us?*
*If you chose Other, please explain below.
Comments
This field is for validation purposes and should be left unchanged.

Features

Quiet and Comfortable

Maximum Performance

Making Your Job Easier

Optimized Machine Capability

A Smooth Ride

Industry Leading Hydraulic Power

Sustainability

Specifications

US Metric

Engine

Spec	Value
Gross Power – SAE J1995	110 hp 82 kW
Net Power – SAE 1349	106 hp 79 kW
Displacement	232 in³ 3.8 l
Stroke	4.7 in 120 mm
Bore	3.9 in 100 mm
Net Flywheel Power	106 hp 79 kW
Engine Model	Cat C3.8 DIT (turbo) Cat C3.8 DIT (turbo)
Net Power – ISO 9249	107 hp 80 kW
Peak Torque – 1,500 rpm – SAE J1995	276 ft·lbf 374 N·m

Operating Specifications

Spec	Value
Rated Operating Capacity	3700 lb 1680 kg
Tipping Load	7400 lb 3365 kg
Breakout Force – Tilt Cylinder	7362 lb 3339 kg
Breakout Force – Lift Cylinder	6085 lb 2760 kg
Note	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with glass door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 2036 mm (80 in) low profile bucket, no optional counterweights, Cat PC 14 × 17.5 tires and manual quick coupler (unless otherwise noted). Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with glass door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 2036 mm (80 in) low profile bucket, no optional counterweights, Cat PC 14 × 17.5 tires and manual quick coupler (unless otherwise noted).
Rated Operating Capacity with Optional Counterweight	3950 lb 1795 kg

Weights

Spec	Value
Operating Weight	9573 lb 4342 kg
Note	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with glass door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 2036 mm (80 in) low profile bucket, no optional counterweights, Cat PC 14 × 17.5 tires and manual quick coupler (unless otherwise noted). Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with glass door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 2036 mm (80 in) low profile bucket, no optional counterweights, Cat PC 14 × 17.5 tires and manual quick coupler (unless otherwise noted).

Dimensions

Spec	Value
Wheel Base	54.6 in 1386 mm
Height – Top of Cab	84 in 2133 mm
Vehicle Width over Tires	76 in 1930 mm
Ground Clearance	10.4 in 263 mm
Departure Angle	28° 28°
Maximum Dump Angle	51° 51°
Bumper Overhang – Behind Rear Axle	46.2 in 1175 mm
Turning Radius from Center – Machine Rear	74.7 in 1899 mm
Length – Without Bucket	127 in 3226 mm
Reach – Maximum Lift/Dump	29 in 736 mm
Clearance at Maximum Lift and Dump	97.4 in 2474 mm
Bucket Pin Height – Maximum Lift	128.6 in 3265 mm
Bucket Pin Height – Carry Position	9.3 in 235 mm
Turning Radius from Center – Coupler	57.7 in 1466 mm
Bucket Pin Reach – Maximum Lift	13.5 in 344 mm
Rack Back Angle – Maximum Height	84° 84°
Maximum Overall Height	161.5 in 4103 mm
Length – With Bucket on Ground	155 in 3937 mm
Maximum Reach – With Arms Parallel to Ground	49.1 in 1246 mm
Turning Radius from Center – Bucket (racked)	90.6 in 2301 mm
Note	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with glass door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 2036 mm (80 in) low profile bucket, no optional counterweights, Cat PC 14 × 17.5 tires and manual quick coupler (unless otherwise noted). Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with glass door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 2036 mm (80 in) low profile bucket, no optional counterweights, Cat PC 14 × 17.5 tires and manual quick coupler (unless otherwise noted).
Roll Back Angle	28° 28°

Hydraulic System

Spec	Value
Standard Flow Mode – Loader Hydraulic Pressure	3335 psi 23000 kPa
Standard Flow Mode – Hydraulic Power – Calculated	44 hp 33 kW
Standard Flow Mode – Loader Hydraulic Flow	23 gal/min 86 l/min
Note	When equipped with Cat 400 Series work tools. When equipped with Cat 400 Series work tools.
Hydraulic Flow – XE – Maximum Loader Hydraulic Pressure	4061 psi 28000 kPa
Hydraulic Flow – XE – Maximum Loader Hydraulic Flow*	40 gal/min 150 l/min
Hydraulic Flow – XE – Hydraulic Power (calculated)	94 hp 70 kW

Cab

Spec	Value
ROPS	ISO 3471:2008 ISO 3471:2008
FOPS	ISO 3449:2005 Level I ISO 3449:2005 Level I

Power Train

Spec	Value
Travel Speed – Forward or Reverse – One Speed	7.2 mile/h 11.6 km/h
Travel Speed – Forward or Reverse – Two Speed	10.3 mile/h 16.6 km/h

Service Refill Capacities

Spec	Value
Cooling System	4.1 gal (US) 16 l
Engine Crankcase	3.5 gal (US) 13 l
Fuel Tank	31.7 gal (US) 120 l
Hydraulic System	14.5 gal (US) 55 l
Hydraulic Tank	10.3 gal (US) 39 l
Chain Box – Each Side	2.7 gal (US) 10.2 l
Diesel Exhaust Fluid (DEF) Tank	5 gal (US) 19 l

Air Conditioning System (if equipped)

Spec	Value
Air Conditioning	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes. The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.

Noise Level

Spec	Value
Note (2)	The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.
Outside Cab***	104 dB(A) 104 dB(A)
Inside Cab**	83 dB(A) 83 dB(A)
Note (1)	Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe. Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Note (3)	*The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC. *The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.

Standard Equipment

ELECTRICAL

12 volt Electrical System
100 ampere Alternator
Ignition Key Start/Stop Switch
Lights: Gauge Backlighting, Two Rear Tail Lights, Two Rear Halogen Working Lights, Two Adjustable Front Halogen Lights, Dome Light
Backup Alarm
Heavy Duty Battery, 1,000 CCA, with Battery Disconnect

OPERATOR ENVIRONMENT

Gauges: Fuel Level, DEF Level, Hour Meter
Operator Warning System Indicators: Air Filter Restriction, Alternator Output, Armrest Raised/Operator Out of Seat, Engine Coolant Temperature, Engine Oil Pressure, Air Inlet Heater Activation, Hydraulic Filter Restriction, Hydraulic Oil Temperature, Park Brake Engaged, Engine Emission System
High Back Cloth Seat with Air Suspension, Heated with Recline and Lumbar Support and Fully Adjustable Seat Mounted Controls
Fold In Ergonomic Contoured Armrest
Control Interlock System, when operator leaves seat or armrest raised: Hydraulic System Disables, Hydrostatic Transmission Disables, Parking Brake Engages
ROPS Cab, Enclosed, Tilt Up
FOPS, Level I
Top, Rear and Side Windows
Headliner, Deluxe
Floor Mat
Interior Rearview Mirror
12 volt Electric Socket
Horn
Hand (Dial) and Foot Throttle, Electronic with Decel Feature
Advanced Display with Rearview Camera: Full Color, 127 mm (5 in) LCD Screen, Advanced Multi-operator Security System, On-screen Adjustments for Implement Response, Hystat Drive Response, and Creep Control
Storage Compartment with Netting

POWER TRAIN

Cat C3.8, Turbo Diesel Engine, Meeting Tier 4 Final and Stage V Emission Standards
Air Cleaner, Dual Element, Radial Seal
S·O·SSM Sampling Valve, Hydraulic Oil
Filters, Cartridge-type, Hydraulic
Filters, Canister-type, Fuel and Water Separator
Radiator/Hydraulic Oil Cooler (side-by-side)
Spring Applied, Hydraulically Released Parking Brakes
Hydrostatic Transmission, Two Speed with Speed Sensitive Ride Control
Four Wheel Chain Drive, 14 × 17.5 Tires

OTHER

Engine Enclosure, Lockable
Extended Life Antifreeze, –37° C (–34° F)
Machine Tie Down Points (6)
Support, Lift Arm
Hydraulic Oil Level Sight Gauge
Radiator Coolant Level Sight Gauge
Radiator, Expansion Bottle
Cat ToughGuard™ Hose
Auxiliary, Hydraulics, Continuous Flow
Heavy Duty, Flat Faced Quick Disconnects with Integrated Pressure Release
Split D-Ring to Route Work Tool Hoses Along Side of Left Lift Arm
Electrical Outlet, Beacon
Belly Pan Cleanout
Variable Speed Demand Fan
Product Link™ PL240, Cellular

MANDATORY EQUIPMENT

Quick Coupler, Mechanical or Powered
High Visibility Seat Belt, 50 mm (2 in) or 75 mm (3 in)
PERFORMANCE PACKAGE:
– Performance Package H3: XE Hydraulics, Dual Direction Electronic Self Level (Raise and Lower), Work Tool Return to Dig, Work Tool Positioner, and Electronic Snubbing (Raise and Lower)
COMFORT PACKAGE:
– Enclosed ROPS with A/C (C3): Foot Throttle, Headliner, Heater and Defroster, Side Windows, Cup Holder, Radio Ready, Air Ride Seat (High Back and Heated) and Door (Glass or Polycarbonate)

Optional Equipment

OPTIONAL EQUIPMENT

Beacon, Rotating
Engine Block Heater – 120V
Oil, Hydraulic, Cold Operation
Paint, Custom
Variable Speed Demand Fan with Reversing Functionality
External Counterweights
Product Link PL641, Cellular
Bluetooth® Radio with Microphone (AM/FM/Weather Band Receiver with USB and Auxiliary Input Jack)
