Cat® 336 Excavator | Fuel-Efficient Large Excavator

Name: Cat® 336 Excavator | Fuel-Efficient Large Excavator
Brand: Cat

Net Power – ISO 9249

300 hp

223.5 kW

Operating Weight

81100 lb

36800 kg

Maximum Digging Depth

26.11 ft

8210 mm

Overview

The Cat® 336 lowers cost per yard with fuel-efficient hydraulics. Standard Cat Grade cuts rework, while VisionLink™ and dealer support maximize uptime and long-term value.

Media

Founded in 1925, Caterpillar established the standard for tractors and construction equipment from the outset. Over the years, the company’s leaders have gained a great deal of knowledge about what works and what doesn’t. Caterpillar has grown alongside its customers, developing new products for hardworking individuals who want to push the limits. With that history comes innovation, change, creation, and learning. Caterpillar has partnerships across multiple industries and companies, continually developing and refining its understanding of how equipment should operate. Our commitment to designing and building the world’s best equipment is evident in every single product.

Interior

360° interior view. Double click on the image to zoom in on any area of the product.

Documents

Get more info

Phone
This field is for validation purposes and should be left unchanged.
First Name*
Last Name*
Company
Address 1*
Address 2
City*
County*
State*
Zip code*
Phone*
Email*
Referral
Message or additional info
CAPTCHA
How did you hear about us?*
*If you chose Other, please explain below.

Features

Latest Features

Performance Powerhouse

Exceptional Efficiency Through Technology

Take The Guesswork Out Of Managing Your Equipment

Intuitive and Empowering to Operate

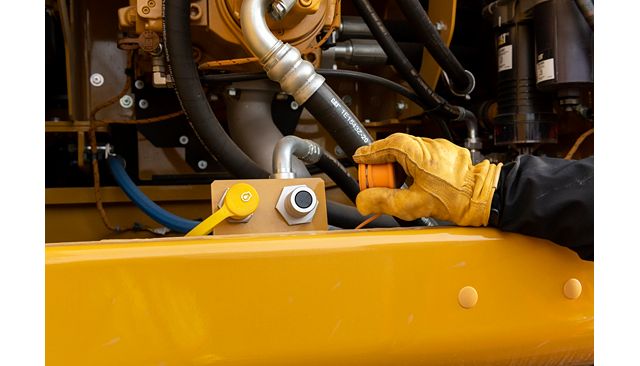

Easy and Economical Maintenance

Ultimate Operator Comfort

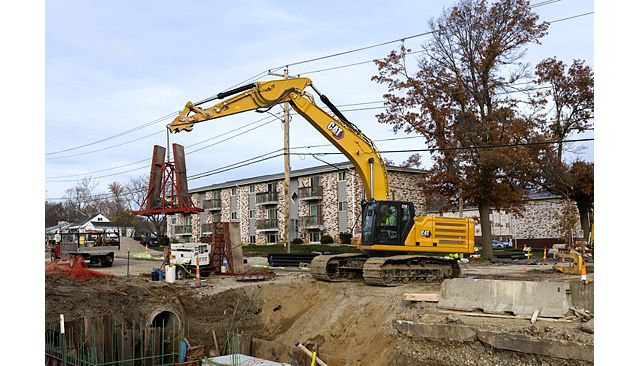

Safely Home Every Day

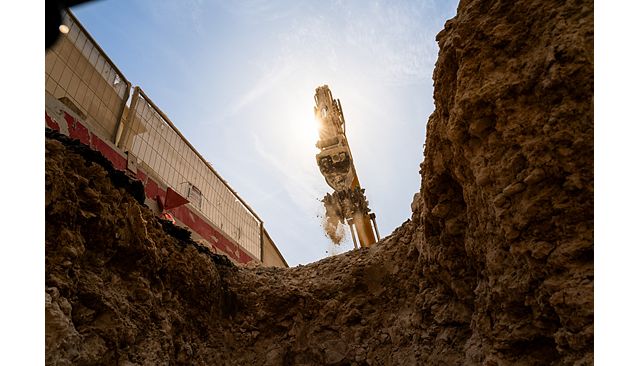

Attachments

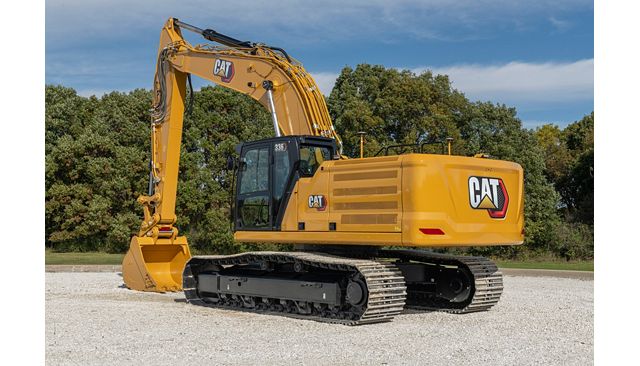

Sustainability

Specifications

US Metric

Engine

Spec	Value
Net Power – ISO 9249	300 hp 223.5 kW
Net Power – ISO 9249 (DIN)	304 hp (metric) 304 hp (metric)
Engine Model	Cat C7.1 TTA Cat C7.1 TTA
Engine Power – ISO 14396	302 hp 225 kW
Engine Power – ISO 14396 (DIN)	306 hp (metric) 306 hp (metric)
Bore	4 in 105 mm
Stroke	5 in 135 mm
Displacement	428 in³ 7.01 l
Biodiesel Capability	Up to B20¹ Up to B20¹
Emissions	Meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards. Meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
Note (1)	Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 2,000 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture. Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 2,000 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (2)	¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester)* 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. * Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. *** Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). ¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester)* 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. * Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. *** Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).

Hydraulic System

Spec	Value
Main System – Maximum Flow	148 gpm 560 L/min
Maximum Pressure – Equipment	5076 psi 35000 kPa
Maximum Pressure – Equipment – Lift Mode	5511 psi 38000 kPa
Maximum Pressure – Travel	5076 psi 35000 kPa
Maximum Pressure – Swing	4264 psi 29400 kPa

Swing Mechanism

Spec	Value
Maximum Swing Torque	105250 lbf·ft 143 kN·m
Note (1)	For CE-marked machine default value may be set lower For CE-marked machine default value may be set lower

Weights

Spec	Value
Operating Weight	81100 lb 36800 kg

Service Refill Capacities

Spec	Value
Fuel Tank Capacity	158.5 gal (US) 600 l
Cooling System	10.2 gal (US) 39 l
Engine Oil	6.6 gal (US) 25 l
Swing Drive – Each	4.8 gal (US) 18 l
Final Drive – Each	2.1 gal (US) 8 l
Hydraulic System – Including Tank	98.5 gal (US) 373 l
Hydraulic Tank	42.5 gal (US) 161 l
DEF Tank	13.2 gal (US) 50 l

Dimensions

Spec	Value
Transport Width	10.5 ft 3190 mm
Boom	Reach 6.5 m (21'4") Reach 6.5 m (21'4")
Stick	Reach 3.9 m (12'10") Reach 3.9 m (12'10")
Bucket	HD 2.00 m³ (2.61 yd³) HD 2.00 m³ (2.61 yd³)
Shipping Height – Top of Cab	10.5 ft 3180 mm
Handrail Height	10.5 ft 3180 mm
Shipping Length	36.8 ft 11180 mm
Tail Swing Radius	11.7 ft 3530 mm
Counterweight Clearance	4.2 ft 1260 mm
Ground Clearance	1.8 ft 510 mm
Track Length	16.6 ft 5030 mm
Track Length to Center of Rollers	13.3 ft 4040 mm
Track Gauge	9 ft 2740 mm
Transport Width – 850 mm (33”) Shoes	11.9 ft 3590 mm

Working Ranges and Forces

Spec	Value
Maximum Digging Depth	26.11 ft 8210 mm
Boom	Reach 6.5 m (21'4") Reach 6.5 m (21'4")
Stick	Reach 3.9 m (12'10") Reach 3.9 m (12'10")
Bucket	HD 2.00 m³ (2.61 yd³) HD 2.00 m³ (2.61 yd³)
Maximum Reach at Ground Level	38.7 ft 11760 mm
Maximum Cutting Height	35.3 ft 10740 mm
Maximum Loading Height	24.6 ft 7470 mm
Minimum Loading Height	6.2 ft 1890 mm
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom	26.6 ft 8080 mm
Maximum Vertical Wall Digging Depth	21.4 ft 6490 mm
Bucket Digging Force – ISO	47190 lbf·ft 210 kN
Stick Digging Force – ISO	32480 lbf·ft 144 kN

Sustainability

Spec	Value
Recyclability	98% 98%

Air Conditioning System

Spec	Value
Air Conditioning	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. If equipped with R134a (Global Warming Potential = 1430), the system contains 0.90 kg (1.984 lb) of refrigerant, which has a CO2 equivalent of 1.287 metric tonnes (1.419 tons). If equipped with R1234yf (Global Warming Potential = 0.501), the system contains 0.780 kg (1.719 lb) of refrigerant, which has a CO2 equivalent of 0.001 metric tonnes (0.001 tons). The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. If equipped with R134a (Global Warming Potential = 1430), the system contains 0.90 kg (1.984 lb) of refrigerant, which has a CO2 equivalent of 1.287 metric tonnes (1.419 tons). If equipped with R1234yf (Global Warming Potential = 0.501), the system contains 0.780 kg (1.719 lb) of refrigerant, which has a CO2 equivalent of 0.001 metric tonnes (0.001 tons).

Standard Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

CAT TECHNOLOGY

VisionLink™
Remote Flash
Remote Troubleshoot
Operator Coaching
Compatibility with radios and base stations from Trimble, Topcon, and Leica
Capability with 3D grade systems from Trimble, Topcon, and Leica
Cat Grade with 2D
Cat Assist (Grade, Boom, Bucket, Swing, Lift)
Cat Payload (On-the-go weighing, Semiautomatic calibration, Payload/cycle information, USB Reporting Capability)
Work tool recognition and tracking (Requires PL161 attachment locator on work tool and Bluetooth receiver on machine)

ELECTRICAL SYSTEM

Maintenance-free 1,000 CCA batteries (x2)
Centralized electrical disconnect switch
LED exterior chassis and boom lights

ENGINE

Three selectable modes: Power, Smart, Eco
Auto engine speed control
– 18° C (0° F) cold start capability
Double element air filter with integrated pre-cleaner
Remote disable

HYDRAULIC SYSTEM

Boom and stick regeneration circuit
Electronic main control valve
Auto heavy lift
Auto dig boost
Auto hydraulic oil warmup
Bio hydraulic oil capability
Reverse swing damping valve
Auto swing parking brake
High performance hydraulic return filter
Two speed travel

SAFETY AND SECURITY

Cat E-Fence
Auto hammer stop
Lockable door, fuel, and hydraulic tank locks
Lockable fuel drain compartment
Service platform with anti-skid plate & recessed bolts
RH handrail and handhold
Signaling / warning horn
Ground-level secondary engine shutoff switch
Rearview camera
Lockable disconnect switch

SERVICE AND MAINTENANCE

Integrated vehicle health management system
Grouped location of engine oil & fuel filters

UNDERCARRIAGE AND STRUCTURES

Towing eye on base frame
Swivel guard
HD bottom guard
HD travel motor guards
Grease lubricated track

DELUXE CAB

High-resolution 203 mm (8″) LCD touchscreen monitor
Auto bi-level air conditioner
Jog dial and shortcut keys for monitor control
Keyless push-to-start engine control
Height-adjustable console
Tilt-up left-side console
Heated air-suspension seat
Monitor integrated Bluetooth radio with USB/Aux ports
12V DC outlets
Document storage
Overhead storage and rear storage with nets
Cup holder
Openable two-piece front window
Rear window emergency exit
Radial wiper with washer
Openable polycarbonate skylight hatch
LED dome light
Floor welcome light
Roof sunscreen
Roller front sunscreen
Washable floor mat
Beacon ready

PREMIUM CAB

High-resolution 254 mm (10″) LCD touchscreen monitor
Auto bi-level air conditioner
Jog dial and shortcut keys for monitor control
Keyless push-to-start engine control
Height-adjustable console
Tilt-up left-side console
Heated and ventilated air-suspension seat
Monitor integrated Bluetooth radio with USB/Aux ports
12V DC outlets
Document storage
Overhead storage and rear storage with nets
Cup holder
Openable two-piece front window
Rear window emergency exit
Parallel wiper
Openable polycarbonate skylight hatch
LED dome light
Floor welcome light
Roof sunscreen
Roller front sunscreen
Washable floor mat
Beacon ready

Optional Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

BOOMS AND STICKS

6.18 m (20’3″) Mass boom
6.5 m (21’4″) Reach boom
2.55 m (8’4″) Mass stick
2.8 m (9’2″) Reach stick
3.2 m (10’6″) Reach stick
3.9 m (12’10”) Reach stick
TB family bucket linkage with/without lifting eye
DB family bucket linkage with/without lifting eye

CAT TECHNOLOGY

VisionLink™ back office reporting
Cat Grade Connectivity
Cat Grade 2D with Attachment Ready Option (ARO)
Cat Grade with 3D (single or dual GNSS)
Cat Grade 3D Ready
GNSS antennae
Laser catcher
Cat Tilt Rotator (TRS) Integration
Operator Coaching
Advanced Payload (Daily totals, Custom lists, Smart weight target, E-ticket Integration)
