Caterpillar

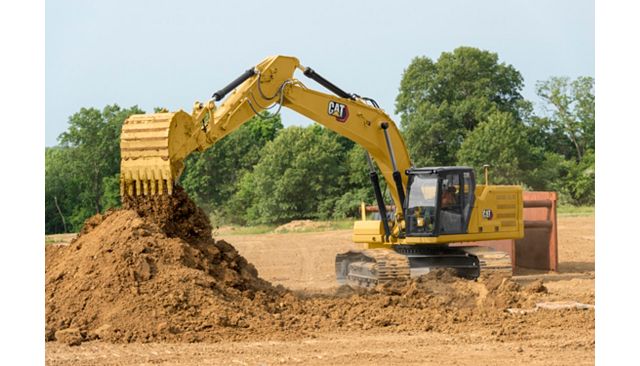

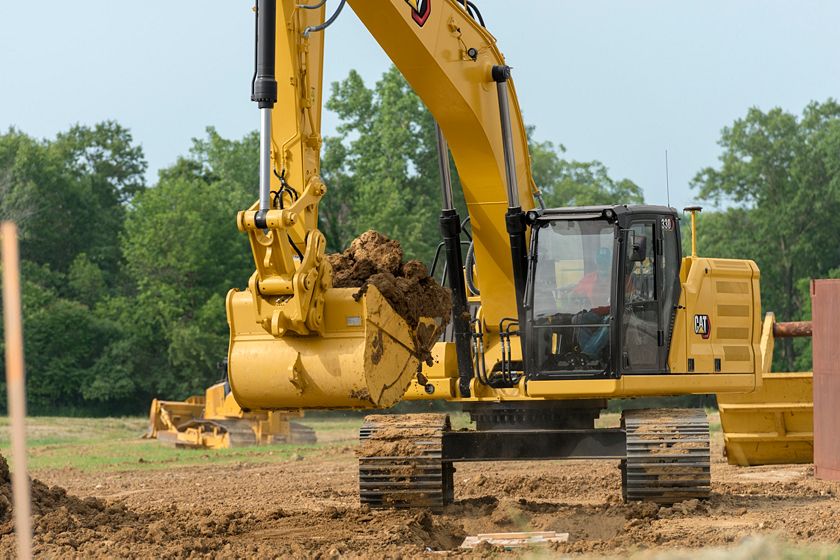

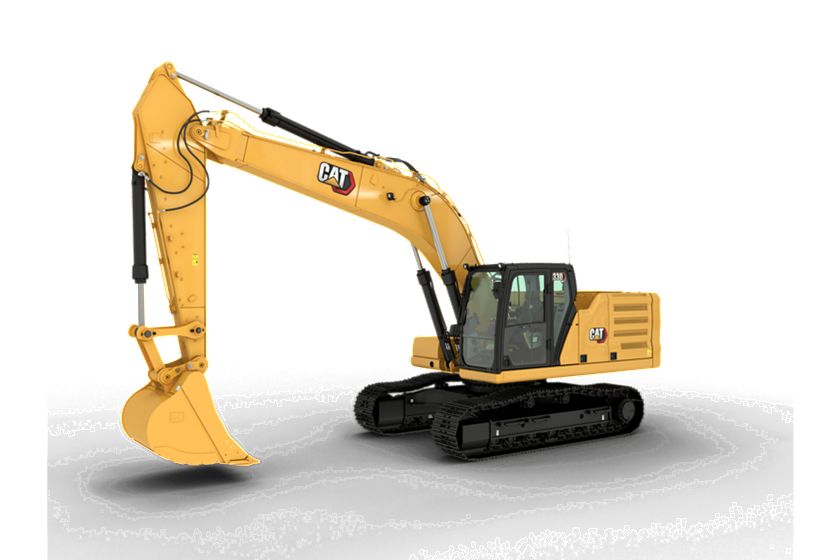

330 Excavator | 30 Ton Excavator / Digger

Name: 330 Excavator | 30 Ton Excavator / Digger
Brand: Caterpillar

Net Power – ISO 9249

273 hp

203.7 kW

Operating Weight

69200 lb

31400 kg

Maximum Digging Depth

23.9 ft

7240 mm

Overview

The Cat® 330 delivers more digging force and larger buckets for faster, more accurate work. Built with advanced technology, it’s designed for site prep, utility, and mass excavation, helping reduce fuel use and maintenance costs while maximizing output.

Media

Cat® All About 2025 Excavator Annual Product Update (APU)

Exterior

360° Exterior view. Double click on the image to zoom in on any area of the product.

Interior

360° interior view. Double click on the image to zoom in on any area of the product.

Documents

Get more info

Email
This field is for validation purposes and should be left unchanged.
First Name*
Last Name*
Company
Address 1*
Address 2
City*
County*
State*
Zip code*
Phone*
Email*
Referral
Message or additional info
CAPTCHA
How did you hear about us?*
*If you chose Other, please explain below.

Features

Latest Features

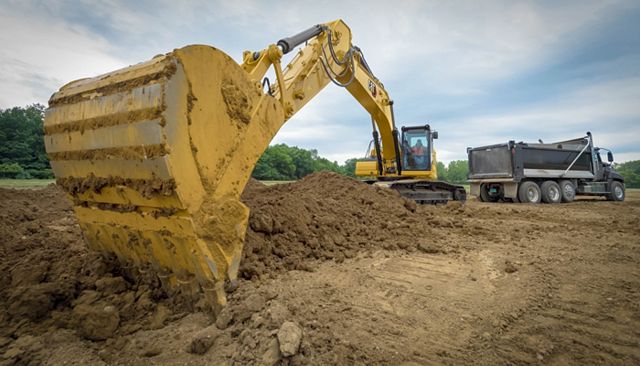

Performance and Productivity

Productivity with Technology

Take the Guesswork out of Managing Your Equipment

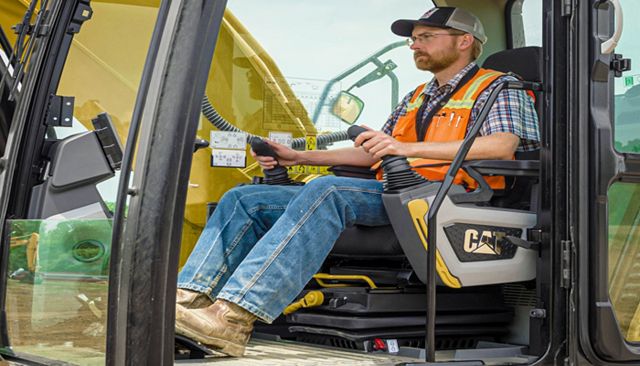

Designed for Operators

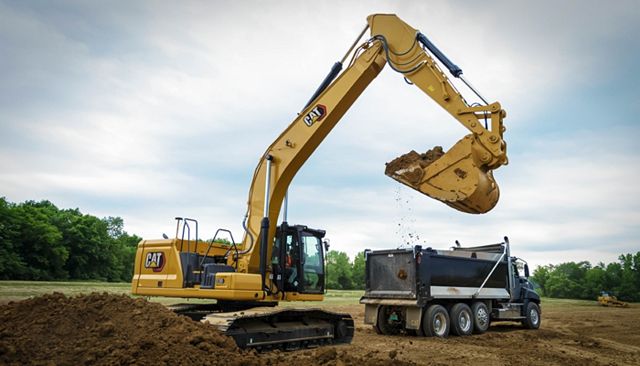

Simple to Operate

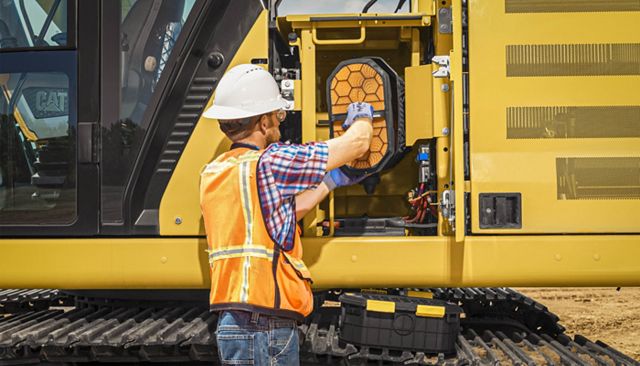

Lower Maintenance Costs

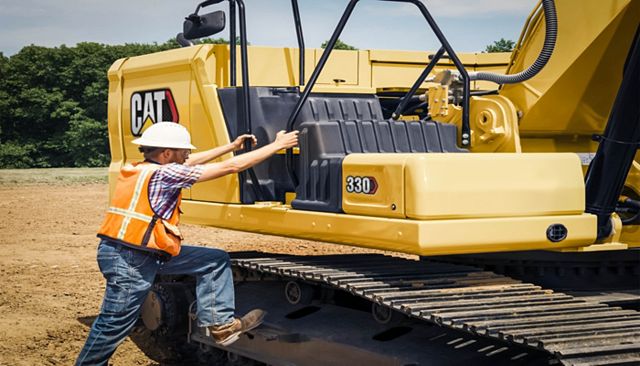

Safely Home Every Day

Attachments

Sustainability

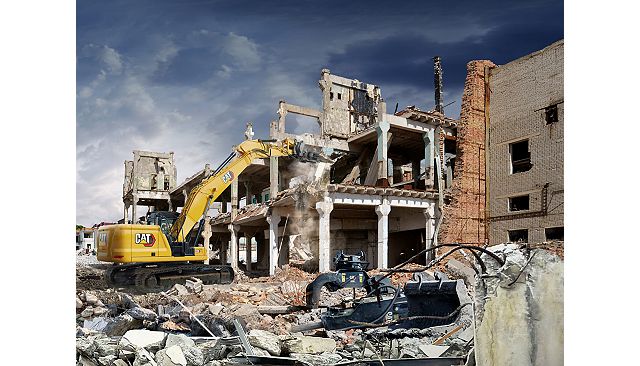

330 Straight Boom Configuration

Specifications

US Metric

Engine

Spec	Value
Net Power – ISO 9249	273 hp 203.7 kW
Net Power – ISO 9249 (DIN)	277 hp (metric) 277 hp (metric)
Engine Model	Cat® C7.1 Cat® C7.1
Engine Power – ISO 14396	275 hp 205 kW
Engine Power – ISO 14396 (DIN)	279 hp (metric) 279 hp (metric)
Bore	4 in 105 mm
Stroke	5 in 135 mm
Displacement	428 in³ 7.01 l
Biodiesel Capability	Up to B20¹ Up to B20¹
Emissions	Meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, and Japan 2014 emission standards. Meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, and Japan 2014 emission standards.
Note (1)	Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system and alternator with engine speed at 2,200 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture. Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system and alternator with engine speed at 2,200 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (2)	¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. *Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). ¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible with ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. **Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).

Hydraulic System

Spec	Value
Main System – Maximum Flow	560 l/min (148 gal/min) 560 l/min (148 gal/min)
Maximum Pressure – Equipment	5075 psi 35000 kPa
Maximum Pressure – Equipment – Lift Mode	5510 psi 38000 kPa
Maximum Pressure – Travel	5075 psi 35000 kPa
Maximum Pressure – Swing	4320 psi 29800 kPa

Swing Mechanism

Spec	Value
Swing Speed*	11.5 r/min 11.5 r/min
Maximum Swing Torque	81132 lbf·ft 110 kN·m
Note (1)	For CE-marked machine default value may be set lower. For CE-marked machine default value may be set lower.

Weights

Spec	Value
Operating Weight	69200 lb 31400 kg
Note	Long undercarriage, Reach boom, R3.2 m (10'6") stick, Heavy Duty (HD) 1.76 m³ (2.30 yd³) bucket, 800 mm (31") triple grouser shoes and 6700 kg (14,770 lb) counterweight. Long undercarriage, Reach boom, R3.2 m (10'6") stick, Heavy Duty (HD) 1.76 m³ (2.30 yd³) bucket, 800 mm (31") triple grouser shoes and 6700 kg (14,770 lb) counterweight.

Service Refill Capacities

Spec	Value
Fuel Tank Capacity	125.2 gal (US) 474 l
Cooling System	6.6 gal (US) 25 l
Engine Oil	6.6 gal (US) 25 l
Swing Drive	2.6 gal (US) 10 l
Final Drive – Each	1.5 gal (US) 5.5 l
Hydraulic System – Including Tank	81.9 gal (US) 310 l
Hydraulic Tank	38.8 gal (US) 147 l
DEF Tank	10.8 gal (US) 41 l

Dimensions

Spec	Value
Boom	Reach 6.15 m (20'2") Reach 6.15 m (20'2")
Stick	Reach 3.2 m (10'6") Reach 3.2 m (10'6")
Bucket	HD 1.76 m³ (2.30 yd³) HD 1.76 m³ (2.30 yd³)
Shipping Height – Top of Cab	10 ft 3060 mm
Handrail Height	10 ft 3060 mm
Shipping Length	34.2 ft 10420 mm
Tail Swing Radius	10.3 ft 3130 mm
Counterweight Clearance	3.7 ft 1120 mm
Ground Clearance	1.6 ft 490 mm
Track Length	15.9 ft 4860 mm
Length to Center of Rollers	13.1 ft 3990 mm
Track Gauge	8.5 ft 2590 mm
Transport Width	11.1 ft 3390 mm

Working Ranges and Forces

Spec	Value
Maximum Digging Depth	23.9 ft 7240 mm
Boom	Reach 6.15 m (20'2") Reach 6.15 m (20'2")
Stick	Reach 3.2 m (10'6") Reach 3.2 m (10'6")
Bucket	HD 1.76 m³ (2.30 yd³) HD 1.76 m³ (2.30 yd³)
Maximum Reach at Ground Level	35 ft 10680 mm
Maximum Cutting Height	32.9 ft 10030 mm
Maximum Loading Height	22.8 ft 6950 mm
Minimum Loading Height	7.5 ft 2300 mm
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom	23.3 ft 7090 mm
Maximum Vertical Wall Digging Depth	19.7 ft 6010 mm
Bucket Digging Force – ISO	40200 lbf 179 kN
Stick Digging Force – ISO	28300 lbf 126 kN

Air Conditioning System

Spec	Value
Air Conditioning	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. If equipped with R134a (Global Warming Potential = 1430), the system contains 0.85 kg (1.9 lb) of refrigerant which has a CO2 equivalent of 1.216 metric tonnes (1.340 tons). If equipped with R1234yf (Global Warming Potential = 0.5), the system contains 0.78 kg (1.7 lb) of refrigerant which has a CO2 equivalent of 0.001 metric tonnes (0.001 tons). The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. If equipped with R134a (Global Warming Potential = 1430), the system contains 0.85 kg (1.9 lb) of refrigerant which has a CO2 equivalent of 1.216 metric tonnes (1.340 tons). If equipped with R1234yf (Global Warming Potential = 0.5), the system contains 0.78 kg (1.7 lb) of refrigerant which has a CO2 equivalent of 0.001 metric tonnes (0.001 tons).

Standard Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

CAB

Rollover Protective Structure (ROPS)
Mechanical-suspension seat (Comfort only)
Heated air-suspension seat (Deluxe only)
Heated and ventilated air-suspension seat (Premium, Demolition only)
High-resolution 203 mm (8 in) LCD touchscreen monitor (Comfort only)
High-resolution 254 mm (10 in) LCD touchscreen monitor (Deluxe, Premium, Demolition only)
